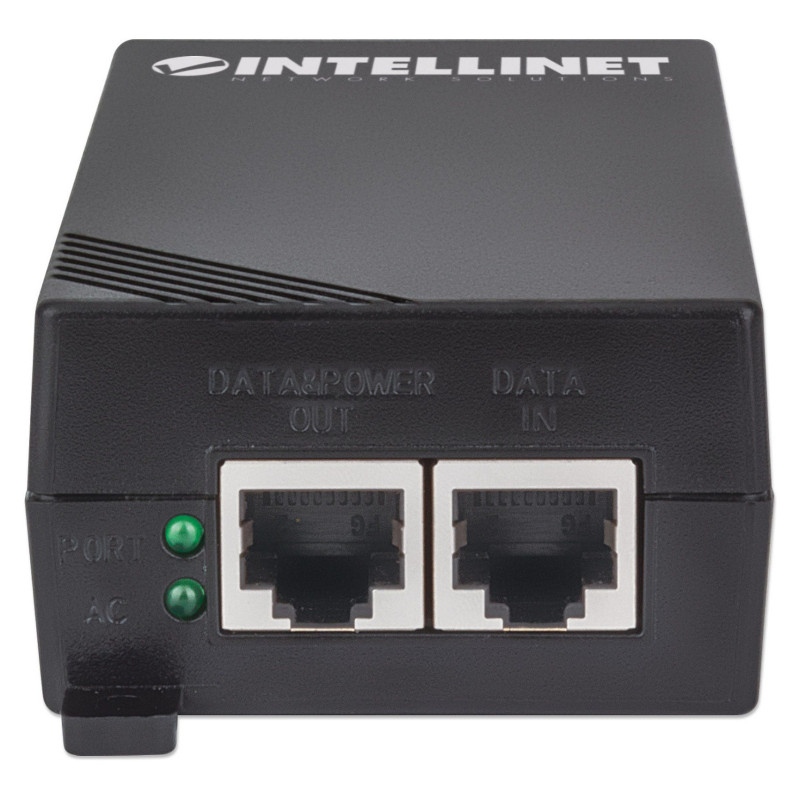

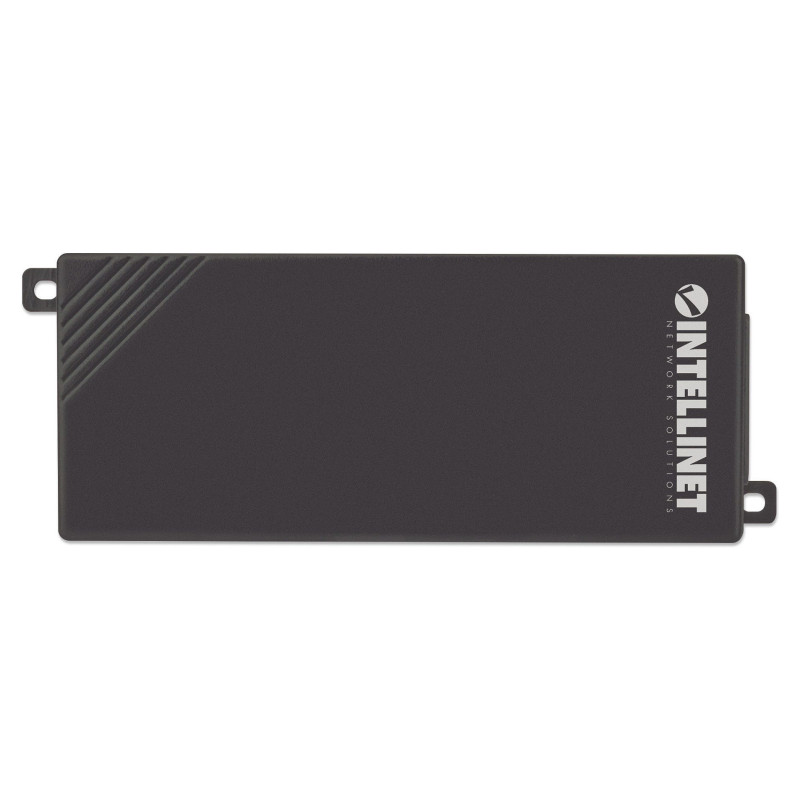

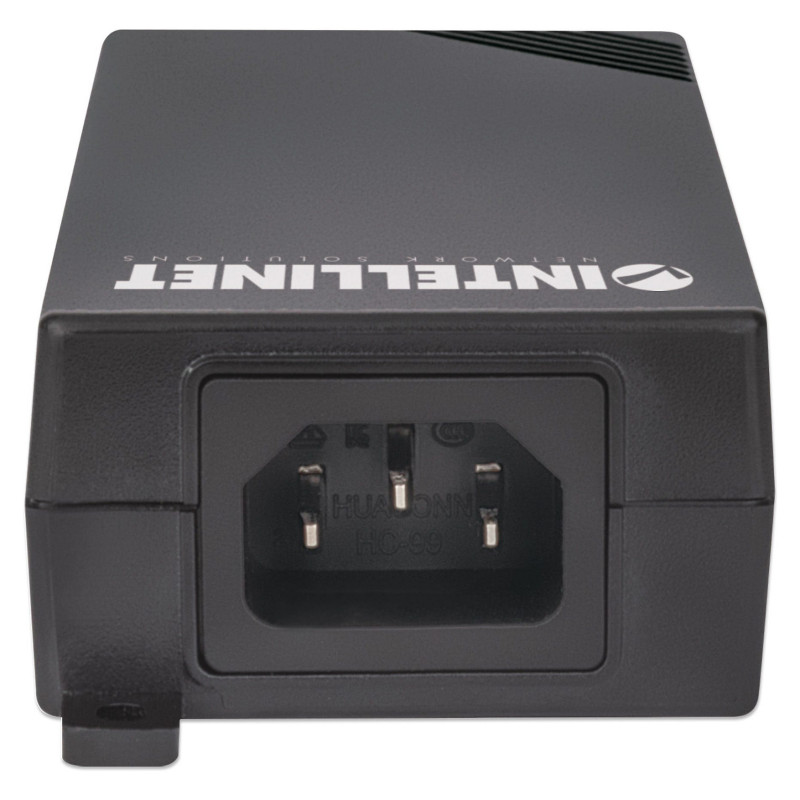

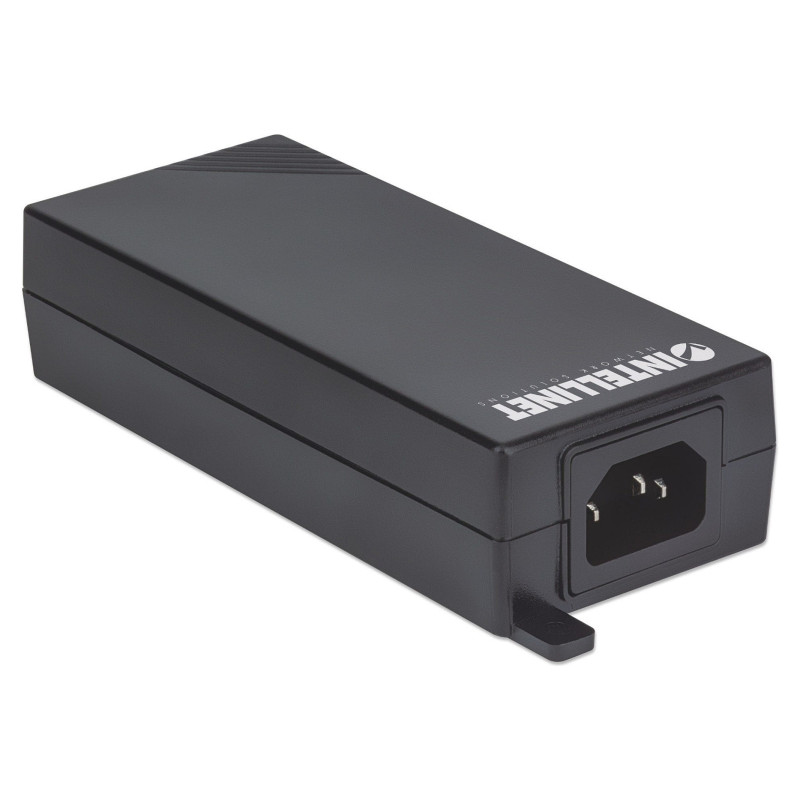

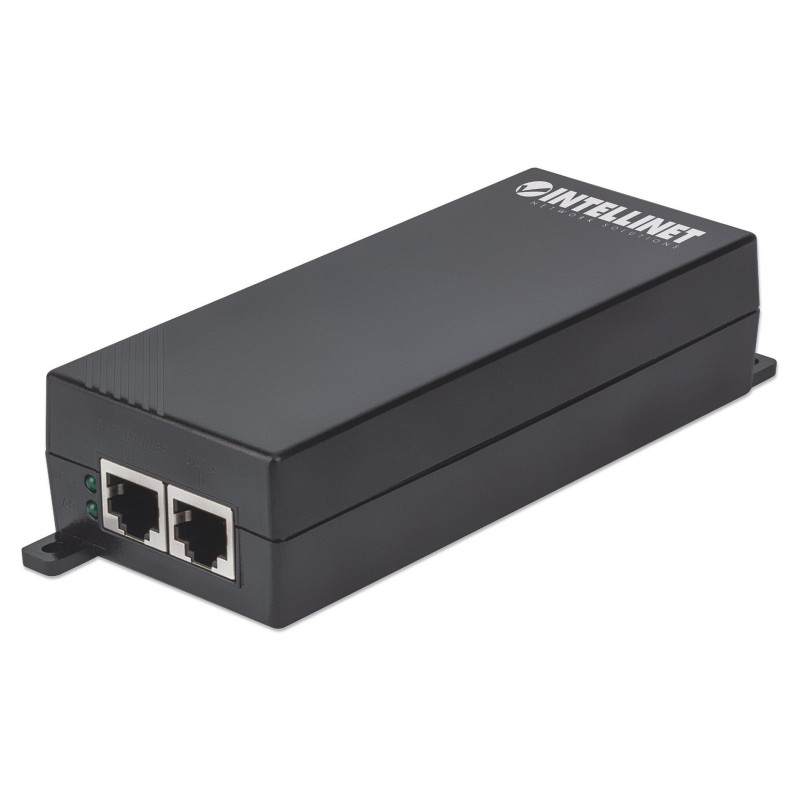

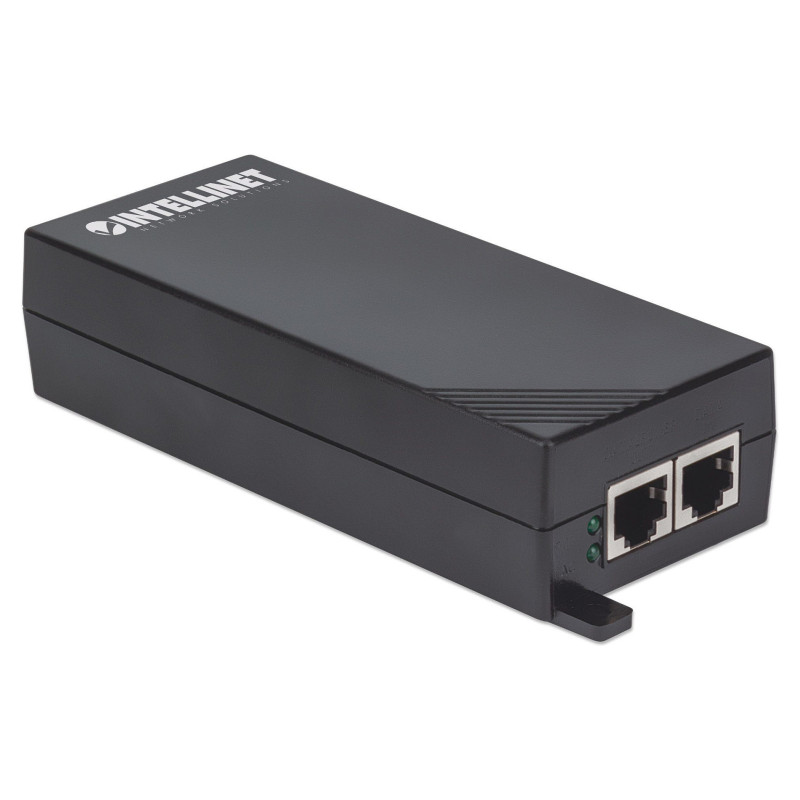

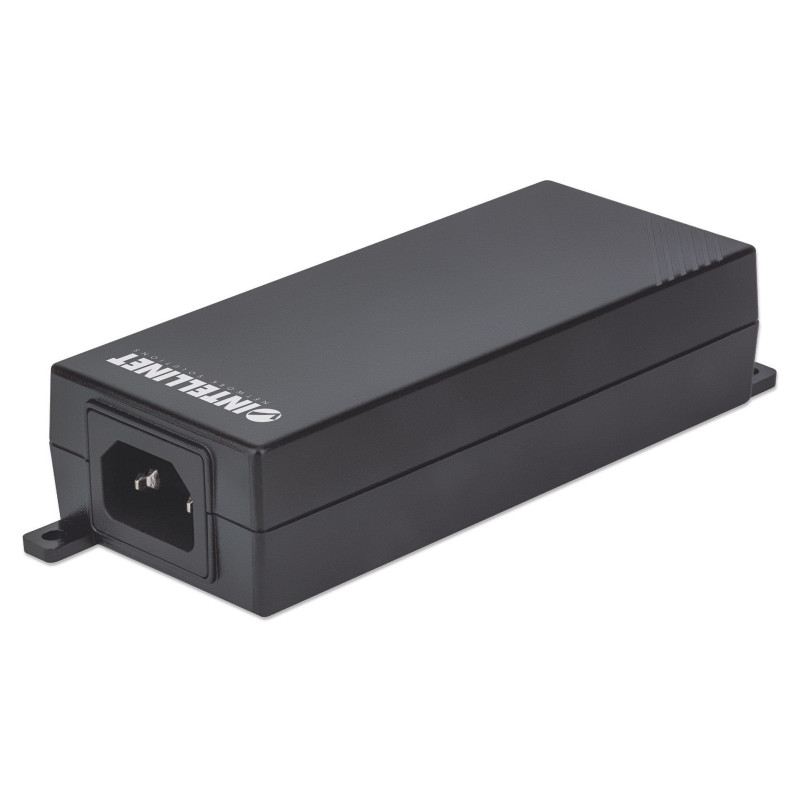

Intellinet 561518 PoE adapteris

Intellinet Gigabit High-Power PoE+ Injector,1 x 30 W Port, IEEE 802.3at/af Compliant, Plastic Housing. Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x. Maximum operating distance: 100 m, Power protection features: Over voltage, Overload, Short circuit. Output power: 30 W, Input voltage: 100-240 V, Input frequency: 50-60 Hz. Compliance certificates: CE, RoHS, Federal Communications Commission (FCC), Certification: FCC, CE, UL. Width: 67 mm, Depth: 136 mm, Height: 34 mm

Provide both power and data to a Powered Device (PD) using existing Cat5 cable and this PoE Injector.

The Intellinet Network Solutions Gigabit High-Power PoE+ Injector lets you connect your IEEE 802.3af/at-compliant product to a non-PoE LAN switch port. The PoE Injector can power and supply a network connection to a wireless access point, IP phone, network camera or any IEEE 802.3af/at-powered PD. This injector has an output power rating up to 30 watts. That's enough for even power-hungry PoE devices.

Reduce Wiring Costs.

There's no need to run AC power lines to get your PD set up and ready to do what it's supposed to. Simply connect the PoE Injector to the LAN switch port, and use the existing Cat5 cabling to deliver DC power as well as transfer data.

Protect Your Equipment.

Once DC power is connected to your networked equipment through the Cat5e/6 cabling, the Intellinet Network Solutions PoE Injector ensures that your products are protected from power problems like short circuits (short GND), current overloads and high voltages.

Network

Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Cable types supported: Cat5, Cat5e

Features

Maximum operating distance: 100 m
LED indicators: Yes
Power protection features: Over voltage, Overload, Short circuit

Ports & interfaces

Ethernet LAN (RJ-45) ports: 2

Power

Output power: 30 W
Input voltage: 100-240 V
Input frequency: 50-60 Hz
Power consumption (max): 35 W

Certificates

Compliance certificates: CE, RoHS, Federal Communications Commission (FCC)
Certification: FCC, CE, UL

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Operating temperature (T-T): -20 - 80 °F
Operating relative humidity (H-H): 5 - 90%

Weight & dimensions

Width: 67 mm
Depth: 136 mm
Height: 34 mm
Weight: 190 g

Packaging content

Feature: Manual

Logistics data

Harmonized System (HS) code: 85044095
