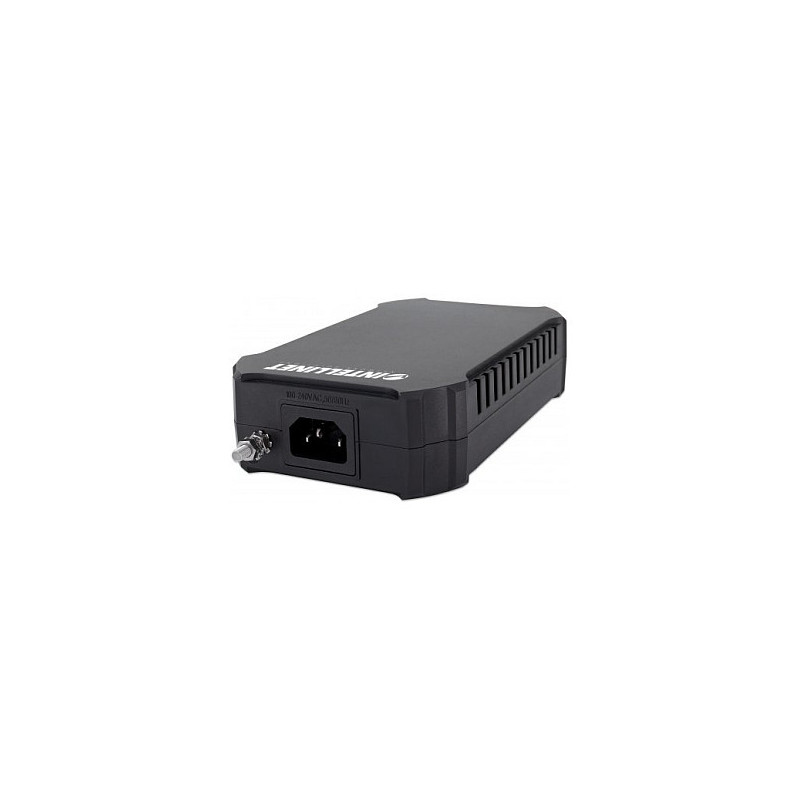

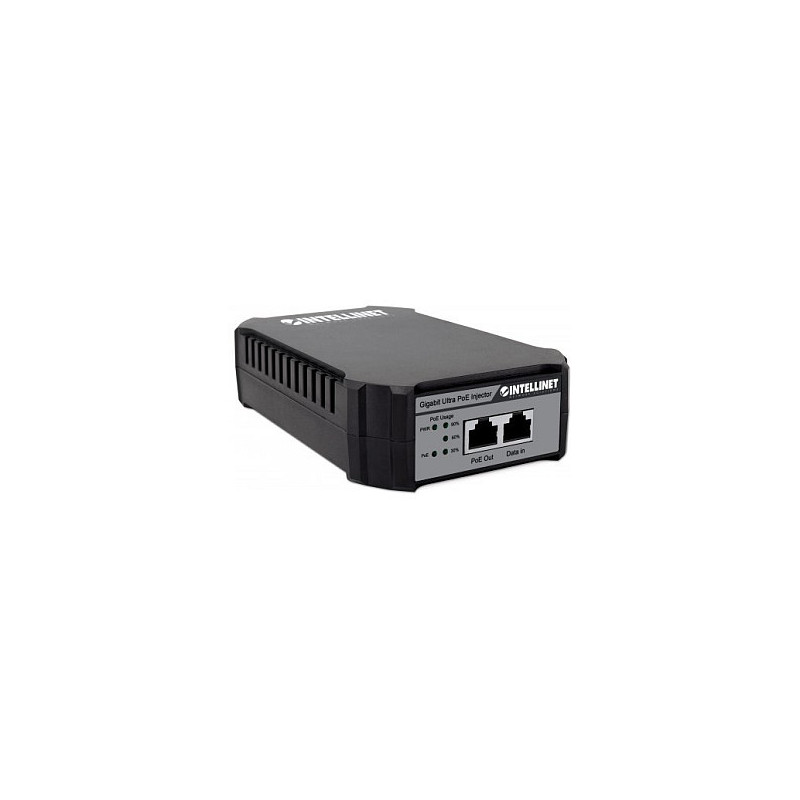

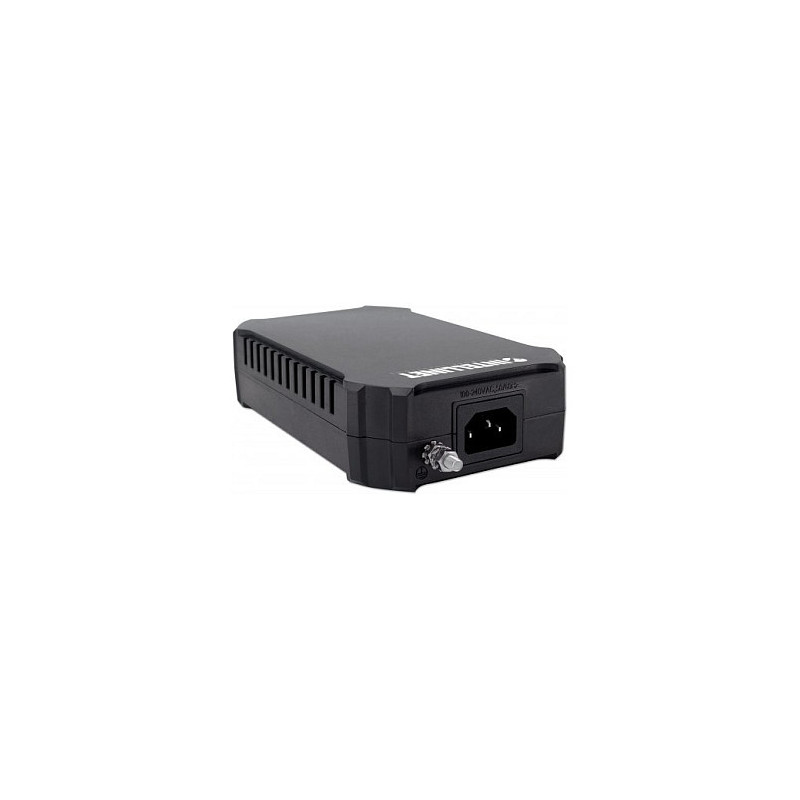

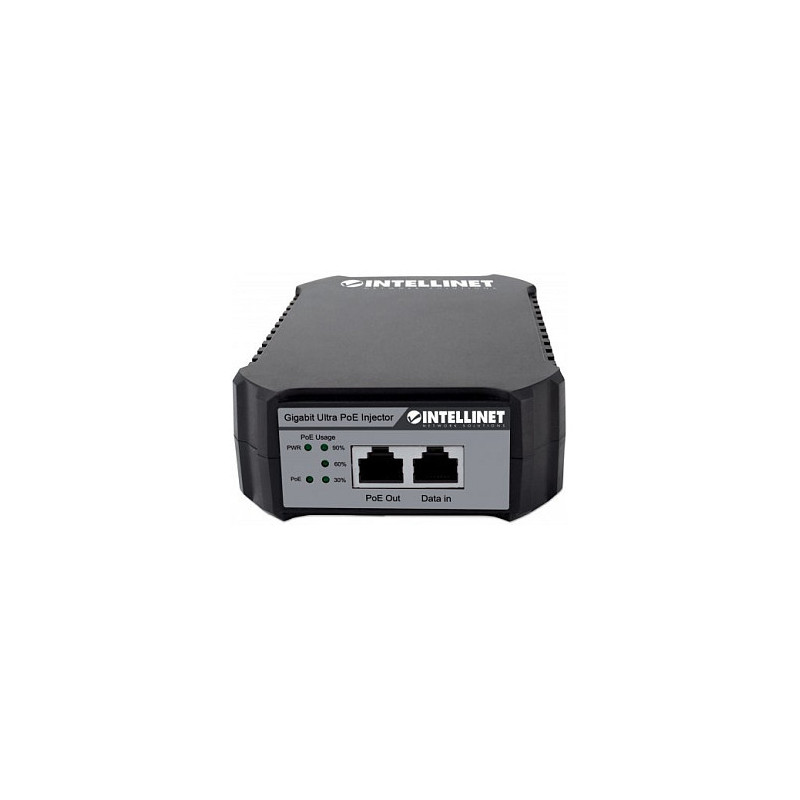

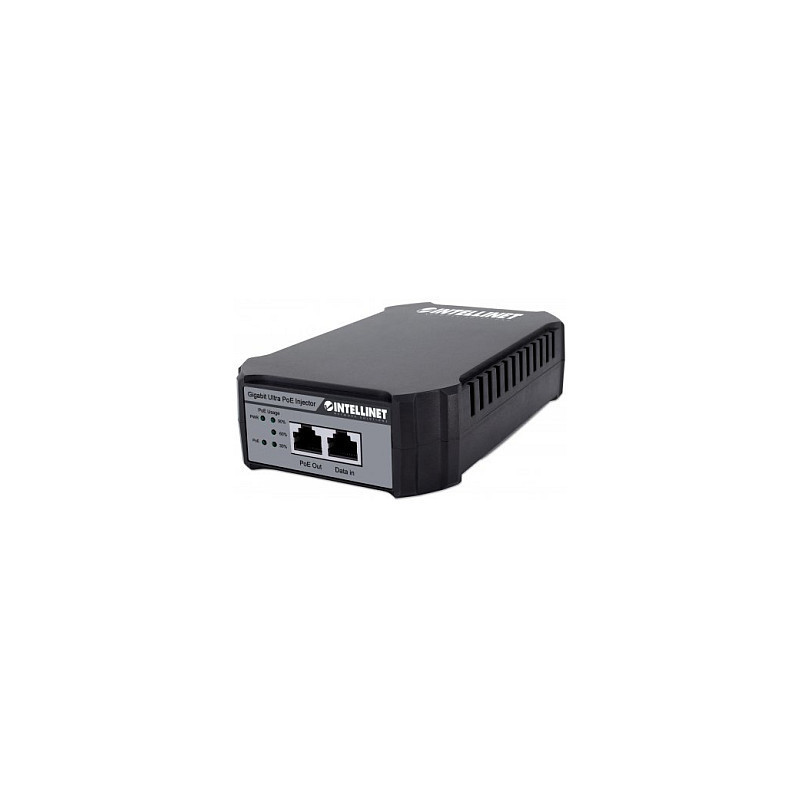

Intellinet 561495 PoE adapteris

Intellinet Gigabit PoE++ Injector, One 95 W Port, IEEE 802.3bt (4PPoE) Compliant, Plastic Housing, Wall-mount Option. Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u. Product colour: Black, Grey, Maximum operating distance: 100 m, LED indicators: Data, PoE, Power. AC adapter input voltage: 100 - 240 V, AC adapter frequency: 50 - 60 Hz, Total Power over Ethernet (PoE) budget: 95 W. Compliance certificates: CE, RoHS, Federal Communications Commission (FCC), Certification: CE, FCC A. Width: 100 mm, Depth: 190 mm, Height: 40 mm

Inject 95 Watts of Power Into Your Internet of Things (IoT) or PoE Network!
IEEE 802.3bt Compatible
The Intellinet Network Solutions Gigabit Ultra PoE Injector provides up to 95 W using all four pairs of twisted-pair network cabling to support IoT applications such as lighting, sensors and building automation. Nurse call systems require 30 to 50 watts of power. Point-of-sale card readers & printers need up to 60 watts. Lighting fixtures and controllers require 40 to 50 watts. Some motorized IP cameras need more than 70 watts. The IEEE 802.3bt Ultra PoE standard is an excellent solution for bringing power to these critical systems. As many new IEEE 802.3bt powered devices enter the market, you'll be ready for them with an Intellinet Network Solutions Gigabit Ultra PoE Injector.

Full Compatibility with Existing IEEE 802.3af/at PoE Powered Devices
The Intellinet Network Solutions Gigabit Ultra PoE Injector helps you connect your IEEE 802.3af/at-compliant products to a non-PoE LAN switch port. The injector can be used to connect a wireless access point, IP phone, network camera or any IEEE 802.3af/at-powered device (PD) to a switch.

Reduced Wiring Costs
It's no longer necessary to run AC power lines for your wireless access point, network camera or IP phone. Simply connect the PoE Injector to the LAN switch port, and use the existing network cabling to deliver DC power as well as transfer data.

Protected Equipment
Once DC power is connected to your networked equipment through the network cabling, the Intellinet Network Solutions PoE Injector ensures that your products are protected from power problems like short circuits (short GRND), current overloads and high voltages.

Network

Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Power over Ethernet (PoE)
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u
Cable types supported: Cat5, Cat5e

Features

Product colour: Black, Grey
Feature: Wall mountable
Maximum operating distance: 100 m
LED indicators: Data, PoE, Power
Power protection features: Over current, Over voltage, Short circuit

Ports & interfaces

Ethernet LAN (RJ-45) ports: 2

Power

AC adapter input voltage: 100 - 240 V
AC adapter frequency: 50 - 60 Hz
Total Power over Ethernet (PoE) budget: 95 W

Certificates

Compliance certificates: CE, RoHS, Federal Communications Commission (FCC)
Certification: CE, FCC A

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating temperature (T-T): 32 - 104 °F
Operating relative humidity (H-H): 10 - 90%
Storage temperature (T-T): -40 - 70 °C

Weight & dimensions

Width: 100 mm
Depth: 190 mm
Height: 40 mm
Weight: 502 g

Packaging content

Number of products included: 1 pc(s)
Feature: Power cord included
Feature: Quick installation guide

Logistics data

Harmonized System (HS) code: 85044095
