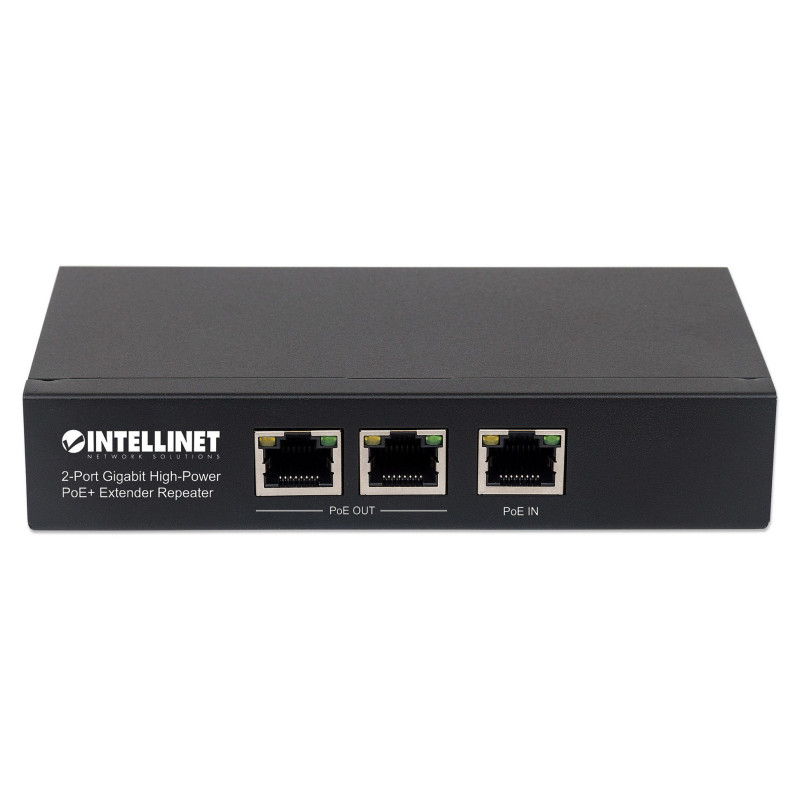

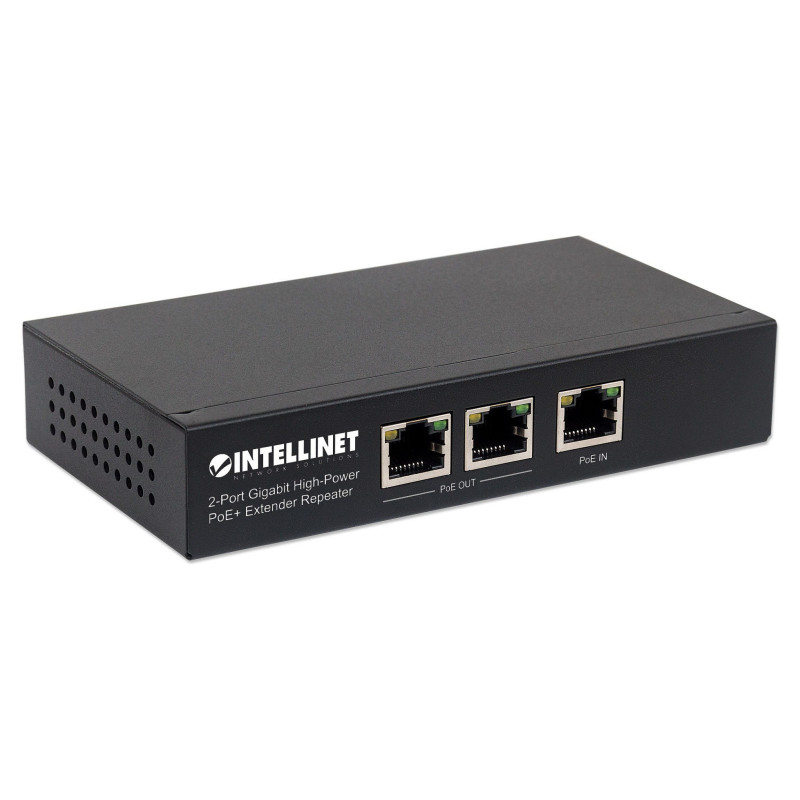

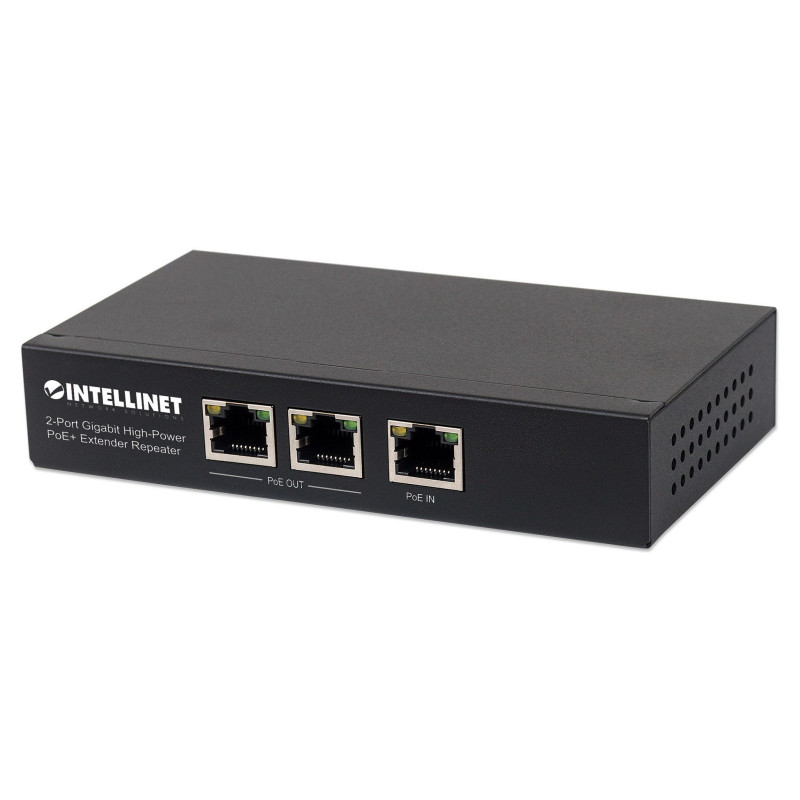

„Intellinet 561266“ tinklo plėtinys

Intellinet 2-Port Gigabit High-Power PoE+ Extender Repeater, IEEE 802.3at/af Power over Ethernet (PoE+/PoE), metal. Cable types supported: Cat5, Cat5e, MAC address table: 2048 entries. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u. Product colour: Black, Housing material: Metal, Certification: FCC Class A, CE. Power consumption (typical): 30 W. Width: 140 mm, Depth: 77 mm, Height: 28 mm

Extend the range of a PoE connection.

The Intellinet Network Solutions 2-Port Gigabit High-Power PoE+ Extender Repeater extends connection distances from a PoE source to two output devices up to 100 m (328 ft.) via Cat5e or Cat6 cable. The PoE+ extender does not need any additional power supply, as it draws the power it needs from the PoE input.

Reduce Wiring Costs
Avoid the expense of running AC power lines for your wireless access point, network camera or IP phone. Simply connect the PoE Extender to the LAN switch port and use the existing Cat5e/6/6a cabling to deliver DC power as well as transfer data.

Power over Ethernet 802.3at Compliant
The Intellinet Network Solutions 2-Port Gigabit High-Power PoE+ Extender Repeater supports the IEEE 802.3at protocol. The repeater forwards data at Gigabit speeds and offers up to 30 watts of input power to a connected IEEE 802.3af- or IEEE 802.3at-compliant device. The cable length on both ends can be up to 100 meters (328 ft.), bringing the total distance between PoE source and device to 200 m (656 ft.).

Simple Installation
Simply connect the "PoE In" port with your PoE injector or PoE switch, and connect the "PoE Out" ports with the PoE devices that you wish to connect (e.g., a VoIP phone and a PoE network camera). That's it. This product was designed to be as easy as possible to set up and use.

Performance

Cable types supported: Cat5, Cat5e
Feature: Jumbo frames support
MAC address table: 2048 entries

Network

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u

Design

Product colour: Black
Housing material: Metal
LED indicators: Yes
Certification: FCC Class A, CE

Power

Power consumption (typical): 30 W
Feature: Power over Ethernet (PoE)

Operational conditions

Operating temperature (T-T): -10 - 45 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 5 - 90%

Weight & dimensions

Width: 140 mm
Depth: 77 mm
Height: 28 mm
Weight: 240 g

Packaging content

Feature: Manual

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC)

Logistics data

Harmonized System (HS) code: 85176990
