Intellinet 561211 tinklo plėtinys

Intellinet Outdoor Gigabit High-Power PoE+ Extender Repeater, IEEE 802.3at/af Power over Ethernet (PoE+/PoE), Extends Range up to 100m, Metal, IP65. Type: Network repeater, Maximum transfer distance: 100 m, Ethernet LAN data rates: 10,100,1000 Mbit/s. Cabling technology: 10/100/1000Base-T(X), Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u. Product colour: Black, Grey, Housing material: Aluminium, Certification: FCC B, CE. Power consumption (max): 4 W. Width: 42 mm, Depth: 145 mm, Height: 33 mm

Extend the range of a PoE connection - even in harsh outdoor conditions.

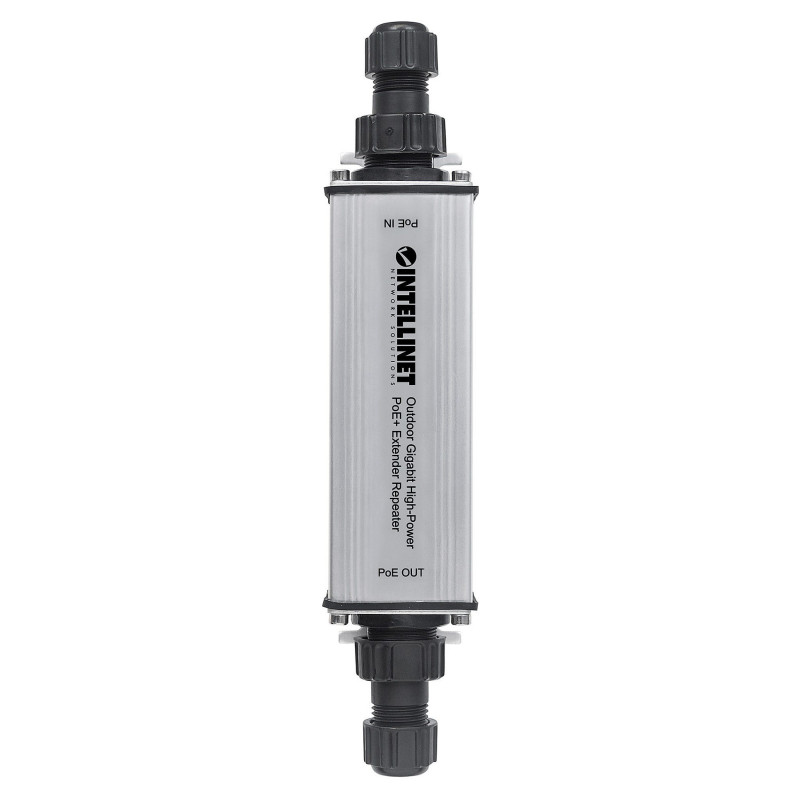

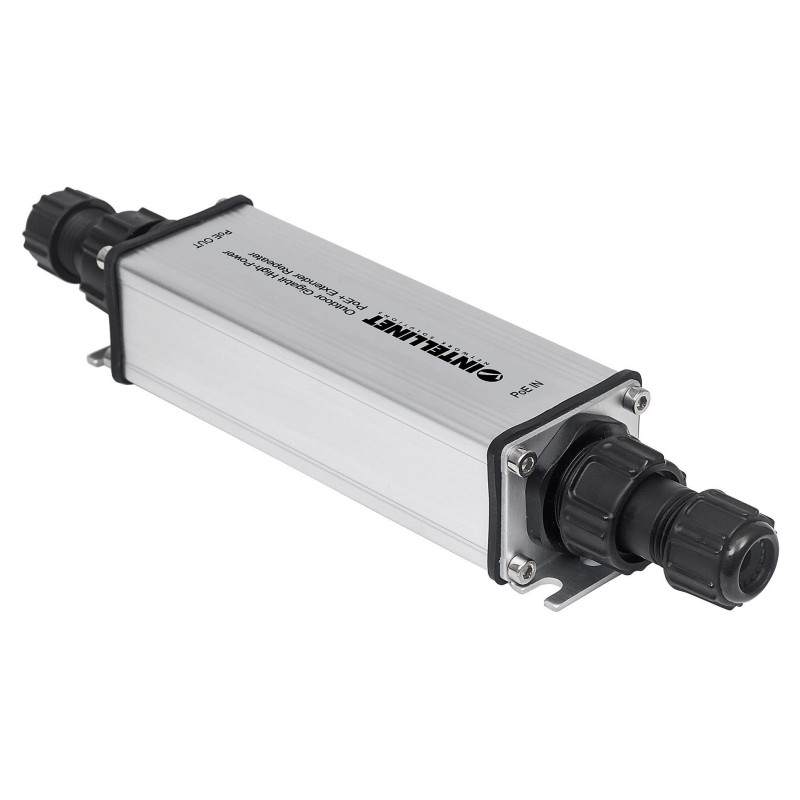

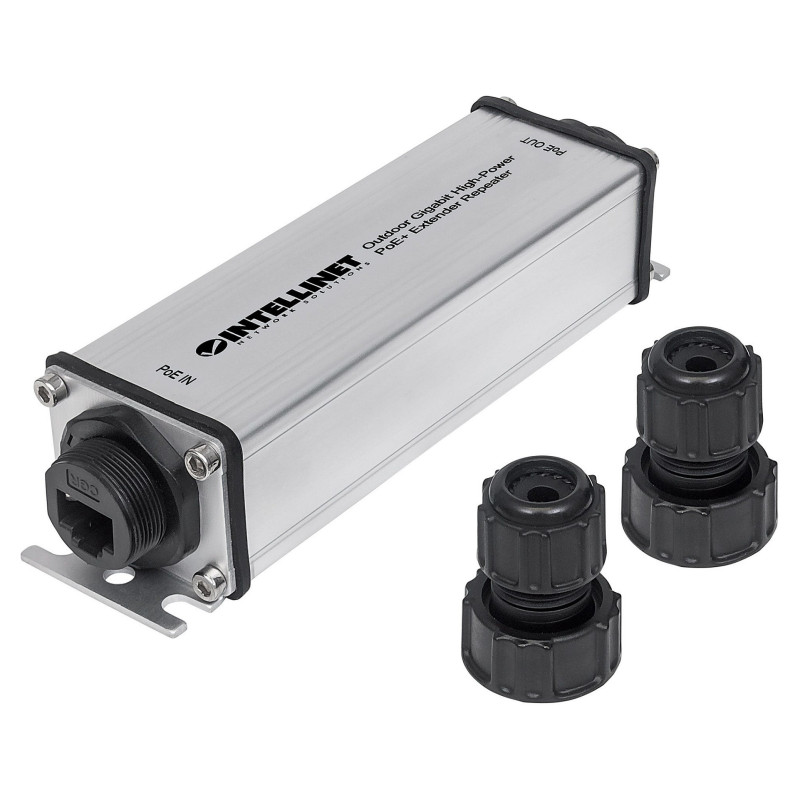

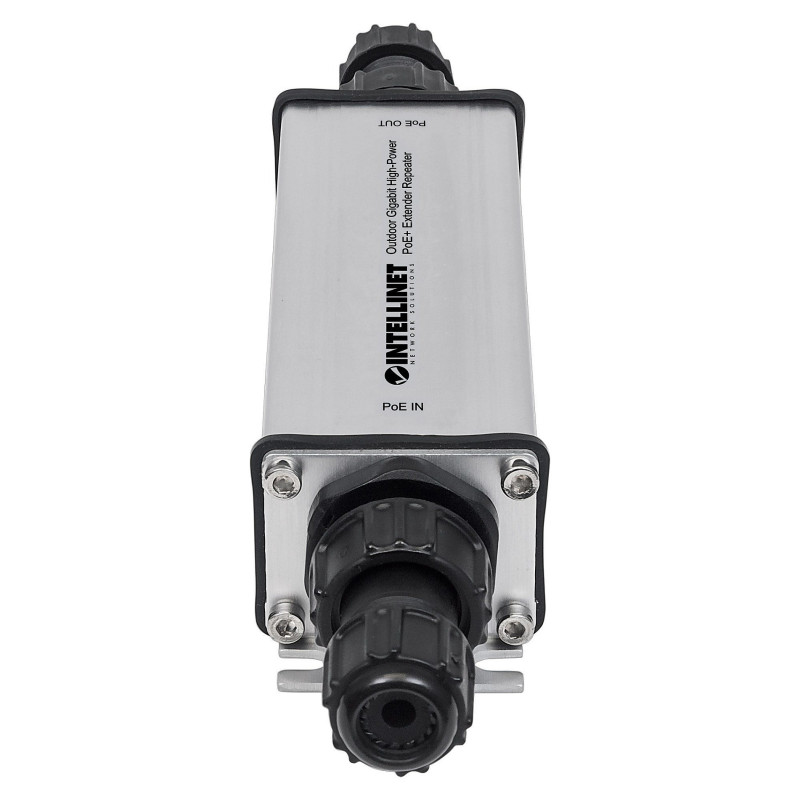

The Intellinet Network Solutions Outdoor Gigabit High-Power PoE+ Extender Repeater (561211) is designed to extend connection distances from a PoE source to an output device up to 100 m (328 ft.) via Cat5e or Cat6 cable. Cover even longer distances by cascading up to five extenders. The PoE+ Extender Repeater does not need an additional power supply, as it draws the power it needs from the PoE input.

Designed for Outdoor Use

With an IP65 rating and a vast operating temperature range of -40 75°C (-40 - 167° F), the Intellinet Network Solutions Outdoor Gigabit High-Power PoE+ Extender Repeater can be deployed in harsh conditions, which sets it apart from its indoor counterpart, the Intellinet Network Solutions PoE+ Extender (560962).

Simple Installation

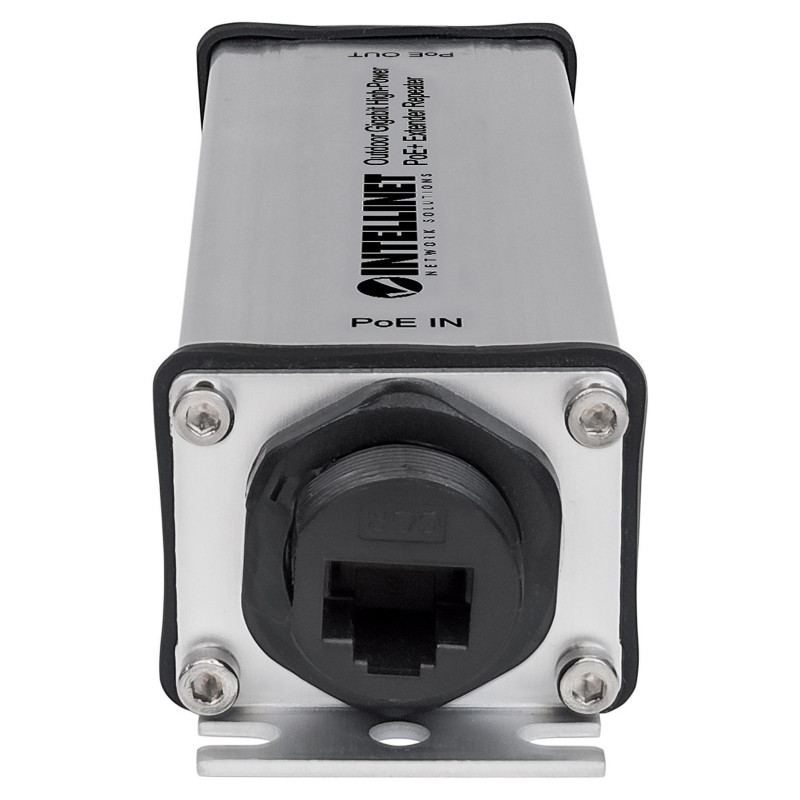

Simply connect the "PoE In" port with your PoE injector or PoE switch and connect the "PoE Out" with the PoE device that you wish to connect (e.g., a VoIP phone or a PoE network camera). That's it. There is nothing to configure. It simply could not be any easier.

Reduced Wiring Costs

No need to run AC power lines for your wireless access point, network camera or IP phone. Simply connect the PoE Extender to the LAN switch port and use the existing Cat5 cabling to deliver DC power as well as transfer data.

Power over Ethernet 802.3at Compliant

The Intellinet Network Solutions Outdoor Gigabit High-Power PoE+ Extender Repeater supports the IEEE 802.3at protocol. It is designed to forward data at Gigabit speeds and provide up to 25 watts of input power to a connected IEEE 802.3af- or IEEE 802.3at-compliant device. The cable length on both ends can be up to 100 meters (328 ft.), bringing the total distance to 200 m (656 ft.).

Cascading Power

Daisy-chaining multiple PoE extenders increase the transmission distance even farther. Be advised that each added PoE extender draws up to 4 W of usable PD power, and additional power losses will occur as the cable length increases.

Performance

Type: Network repeater
Maximum transfer distance: 100 m
Ethernet LAN data rates: 10,100,1000 Mbit/s
International Protection (IP) code: IP65

Network

Cabling technology: 10/100/1000Base-T(X)
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u

Ports & interfaces

Ethernet LAN (RJ-45) ports: 2

Design

Product colour: Black, Grey
Housing material: Aluminium
Certification: FCC B, CE

Power

Power consumption (max): 4 W
Feature: Power over Ethernet (PoE)

Operational conditions

Operating temperature (T-T): -40 - 75 °C

Weight & dimensions

Width: 42 mm
Depth: 145 mm
Height: 33 mm
Weight: 150 g

Packaging content

Feature: Manual

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC)

Logistics data

Harmonized System (HS) code: 85044095
