„Intel Wi-Fi 6 AX200“ (gigabaitų+)

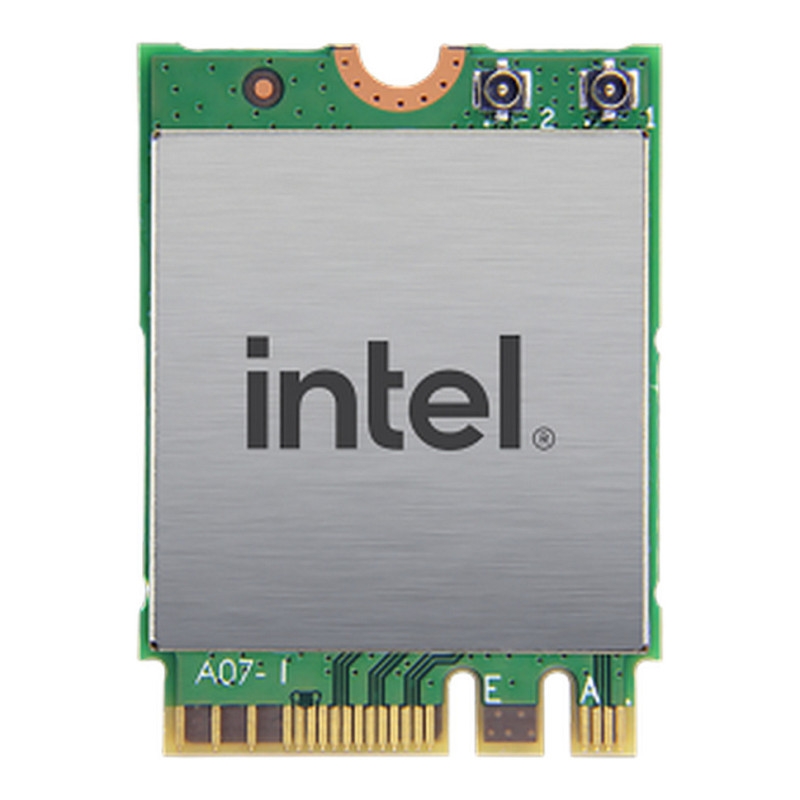

Intel Wi-Fi 6 AX200 (Gig+). Internal. Connectivity technology: Wireless, Host interface: PCI Express, Interface: WLAN. Maximum data transfer rate: 2400 Mbit/s, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi band: Dual-band (2.4 GHz / 5 GHz). Antenna type: 2x2

Orthogonal Frequency-Division Multiple Access (OFDMA)
Orthogonal Frequency-Division Multiple Access (OFDMA) is a multi-user version of the popular orthogonal frequency-division multiplexing (OFDM) digital modulation scheme. This allows simultaneous low-data-rate transmission from several users.

Ports & interfaces

Connectivity technology: Wireless
Host interface: PCI Express
Interface: WLAN

Network

Maximum data transfer rate: 2400 Mbit/s
Feature: Wi-Fi
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Wi-Fi standards: Wi-Fi 6 (802.11ax)
Security algorithms: 64-bit WEP, 128-bit AES, 128-bit WEP, 256-bit AES, AES-CCMP, AES-GCMP, EAP-AKA, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, PEAP, TKIP, WPA2, WPA3, WPS
Feature: MU-MIMO
Feature: Bluetooth
Bluetooth version: 5

Design

Component for: PC/Laptop
Feature: Internal
Antenna type: 2x2
Package size: 22 x 30 x 2.4 mm

System requirements

Compatible operating systems: Windows 10, 64-bit*|Linux*
Windows operating systems supported: Windows 10 x64
Linux operating systems supported: Yes
Other operating systems supported: ChromeOS

Operational conditions

Operating temperature (T-T): 0 - 80 °C

Weight & dimensions

Width: 22 mm
Depth: 30 mm
Height: 2.4 mm
Weight: 2.83 g

Logistics data

Harmonized System (HS) code: 85176990

Other features

Minimum operating temperature: 0 °C
Maximum operating temperature: 80 °C
Feature: Supported Under vPro
Interface type: Wi-Fi(PCIe), BT(USB)
Launch date: Q2'19
Product brief URL: https://www.intel.com/content/dam/www/public/us/en/documents/product-briefs/wi-fi-6-ax200-module-brief.pdf
Product type: Wireless
Status: Launched
Processor family: Intel Wi-Fi 6 Products
Export Control Classification Number (ECCN): 5A992CN3
Commodity Classification Automated Tracking System (CCATS): G165483
Compliance: FIPS, FISMA
Product series: Intel® Wireless Products
Product codename: Cyclone Peak
