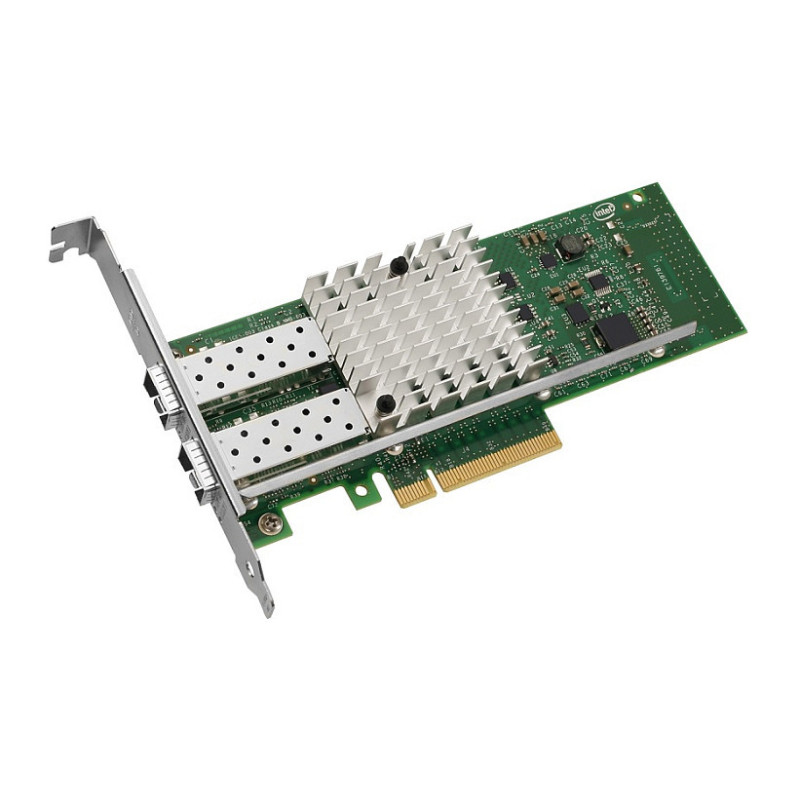

„Intel E10G42BTDABLK“ tinklo plokštė

Intel E10G42BTDABLK. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Fiber. Maximum data transfer rate: 10000 Mbit/s

Intel's new family of Intel® Ethernet X520 Server Adapters are the most flexible and scalable Ethernet adapters for today's demanding data center environments.

The Intel® Ethernet X520 Server Adapter family addresses the demanding needs of the next-generation data center by providing unmatched features for virtualization, flexibility for LAN and SAN networking, and proven, reliable performance.

Features and benefits
-
Intel® 82599 10 Gigabit Ethernet Controller
Industry-leading, energy-efficient design for next-generation 10 Gigabit performance and multi-core processors;
-
Low-profile
Enables higher bandwidth and throughput from standard and low-profile PCIe slots and servers;
-
Load balancing on multiple CPUs
Increases performance on multi-processor systems by efficiently balancing network loads across
CPU cores when used with Receive-Side Scaling (RSS) from Microsoft or Scalable I/O on Linux*;
-
iSCSI remote boot support
Provides centralized storage area network (SAN) management at a lower cost than other iSCSI solutions;
-
Support for most network operating systems (NOS)
Enables widespread deployment;
-
RoHS-compliant2
Complies with the European Union directive 2002/95/EC to reduce the use of hazardous materials;
-
Intel® PROSet utility for Microsoft Windows* Device Manager
Provides point-and-click management of individual adapters, advanced adapter features, connection
teaming, and virtual local area network (VLAN) configuration;
-
Time Sync (IEEE 1588, 802.1as)
Lets networked Ethernet equipment synchronize internal clocks according to a network master clock;
endpoint can then acquire an accurate estimate of the master time by compensating for link latency;

Ports & interfaces

Connectivity technology: Wired
Host interface: PCI Express
Interface: Fiber
Ethernet LAN (RJ-45) ports: 2
Fiber ports quantity: 2
Fiber optic connector: SFP+
PCI version: 2.0

Network

Maximum data transfer rate: 10000 Mbit/s
Ethernet LAN data rates: 10,1000 Mbit/s
Feature: Full duplex
Maximum operating distance: 10 m
LAN controller: Intel® 82599

Design

Feature: Internal
Feature: Plug and Play
Certification: FCC B, UL, CE, VCCI, BSMI, CTICK, KCC

System requirements

Compatible operating systems: https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html

Operational conditions

Operating temperature (T-T): 0 - 55 °C
Storage temperature (T-T): -40 - 70 °C

Weight & dimensions

Width: 145.5 mm

Logistics data

Harmonized System (HS) code: 85176990

Other features

Compliance industry standards: IEEE 802.3
Cable type: SFP+ Direct Attached Twin Axial Cabling up to 10m
Market segment: Server
Data transfer rate: 10 Gbit/s
Ports quantity: 2
Feature: Link/Act LED
Feature: Intel Virtual Machine Device Queues (VMDq)
Feature: PCI-SIG* SR-IOV Capable
Feature: On-chip QoS and Traffic Management
Feature: Intel Flexible Port Partitioning
Feature: Storage-over-ethernet
Speed & slot width: 5.0 GT/s, x8 Lane
Feature: Message signal interrupt
Feature: Intelligent Offloads
Feature: Fiber Channel over Ethernet
Feature: Intel Ethernet Power Management
Feature: Intel Data Direct I/O Technology
Feature: Intel Virtualization Technology for Connectivity (VT-c)
Interface type: PCIe v2.0 (5.0 GT/s)
Storage Over Ethernet: iSCSI, FCoE, NFS
Product type: Network Interface Card
Thermal Design Power (TDP): 8.6 W
Launch date: Q3'09
Processor family: 500 Network Adapters (up to 10GbE)-500 Network Adapters (up to 10GbE)
Network interface card type: Server
Product brief URL: https://www.intel.com/content/www/us/en/ethernet-products/converged-network-adapters/ethernet-x520-server-adapters-brief.html
Status: Launched
Last change: 64826816
Ethernet adapter ARK ID: 39776
Network interface card cable medium: Copper
Export Control Classification Number (ECCN): 5A992C
Commodity Classification Automated Tracking System (CCATS): G135872
Controller type: Intel® 82599 10 Gigabit Ethernet Controller
Cabling type: SFP+ Direct Attached Twin Axial Cabling up to 10m
Bracket height: Low-Profile (LP) / Full-Height (FH)
Product family: Intel 10 Gigabit server adapter
Product series: 500 Series Network Adapters (up to 10GbE)
Product codename: Spring Fountain
