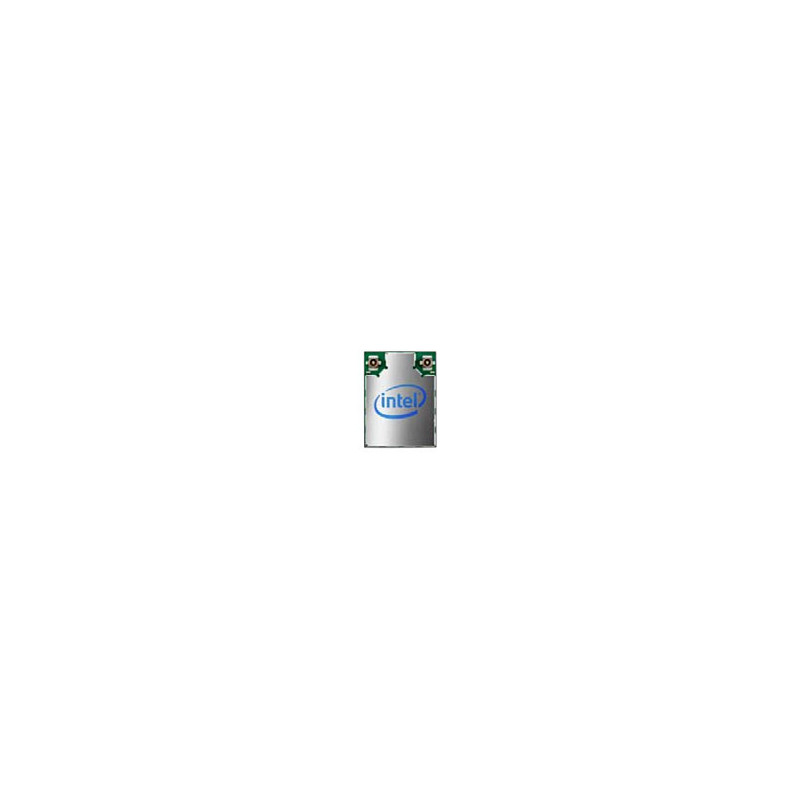

„Intel 9462.NGWG.NV“ tinklo plokštė

Intel 9462.NGWG.NV. Internal. Connectivity technology: Wireless, Host interface: M.2, Interface: WLAN. Maximum data transfer rate: 433 Mbit/s, Top Wi-Fi standard: Wi-Fi 5 (802.11ac), Wi-Fi band: Dual-band (2.4 GHz / 5 GHz). Antenna type: 1x1

Intel® Smart Connect Technology
Intel® Smart Connect Technology automatically updates applications such as e-mail and social networks when your computer is asleep. With Intel Smart Connect Technology, you do not have to wait for your applications to update when you wake up your computer.

MU-MIMO
Multi-user MIMO (MU-MIMO) is a set of multiple-input and multiple-output technologies for wireless communication, in which a set of users or wireless terminals, each with one or more antennas, communicate with each other.

Ports & interfaces

Connectivity technology: Wireless
Host interface: M.2
Interface: WLAN

Network

Maximum data transfer rate: 433 Mbit/s
Feature: Wi-Fi
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
Wi-Fi standards: Wi-Fi 5 (802.11ac)
WLAN data transfer rates supported: 433 Mbit/s
Feature: MU-MIMO
Bandwidth (first): 2.4 GHz
Bandwidth (second): 5 GHz
Feature: Bluetooth
Bluetooth version: 5

Design

Feature: Internal
Antenna type: 1x1
Form factor: M.2 2230, M.2 1216

System requirements

Compatible operating systems: Windows 10, 64-bit*|Linux*
Windows operating systems supported: Windows 10
Linux operating systems supported: Yes
Other operating systems supported: ChromeOS

Operational conditions

Operating temperature (T-T): 0 - 80 °C

Weight & dimensions

Width: 22 mm
Depth: 30 mm
Height: 2.4 mm
Weight: 2.7 g

Logistics data

Harmonized System (HS) code: 85176990

Other features

Minimum operating temperature: 0 °C
Maximum operating temperature: 80 °C
Interface type: M.2: CNVio
Launch date: Q4'17
Product brief URL: https://www.intel.com/content/www/us/en/wireless-products/dual-band-wireless-ac-9462-brief.html
Product type: Wireless
Status: Launched
Processor family: Intel Wireless-AC Products
Ethernet adapter ARK ID: 125192
Export Control Classification Number (ECCN): 5A991
Commodity Classification Automated Tracking System (CCATS): NA
Compliance: FIPS9, FISMA
Product series: Intel® Wireless Products
Product codename: Jefferson Peak
