HPE Aruba Networking Instant On Indoor Access Point 2x2 Wi-Fi 6 (RW) AP22

HPE Aruba Networking Networking Instant On Indoor Access Point 2x2 Wi-Fi 6 (RW) AP22. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1200 Mbit/s. Security algorithms: OWE, WPA2, WPA3. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 10.1 W

HPE Networking Instant On Access Points AP22 delivers affordable, business-grade 802.11ax Wi-Fi for high performance, high density small business environments. Business-grade capabilities are designed to meet the growing number of mobile, IoT, and security needs. The compact form factor of the AP22 delivers multi-user capabilities and a maximum aggregate peak data rate of 1.2 Gbps for high-definition video streaming and cloud application requirements. Everything from mounting hardware to easy-to-use web and mobile app management tools, and business-grade software features are included; no extra charge or need for external controllers.

What is new supporting point:
Wi-Fi 6 for high performance and efficiency
Supports up to 75 associated clients
Support for WPA2/WPA3 protected employee and guest login with Enhanced Open for per user guest access

Features

Feature: 2.4 GHz
Feature: 5 GHz
Maximum data transfer rate: 1200 Mbit/s
Maximum data transfer rate (2.4 GHz): 574 Mbit/s
Maximum data transfer rate (5 GHz): 1200 Mbit/s
Ethernet LAN data rates: 10,100,1000 Mbit/s
Networking standards: IEEE 802.11ax
Number of users: 75 user(s)
Feature: Bluetooth
Feature: Bluetooth Low Energy (BLE)
Feature: MIMO
MIMO type: Multi User MIMO
Modulation: 256-QAM, 1024-QAM

Security

Security algorithms: OWE, WPA2, WPA3

Management features

Feature: Web-based management

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1

Power

Feature: Power over Ethernet (PoE)
DC voltage range: 12 V
Power consumption (typical): 8.8 W
Power consumption (max): 10.1 W

Design

Placement: Ceiling, Wall
Product colour: White
Feature: Cable lock slot
Cable lock slot type: Kensington

Antenna

Antenna type: Internal
Antenna direction type: Omni-directional
Antenna gain level (max): 5.6 dBi

Certificates

Certification: Wi-Fi Alliance certified (WFA) 802.11ax with (Wi-Fi 6), WPA2, WPA3

Weight & dimensions

Width: 160 mm
Depth: 160 mm
Height: 37 mm
Weight: 500 g

Other features

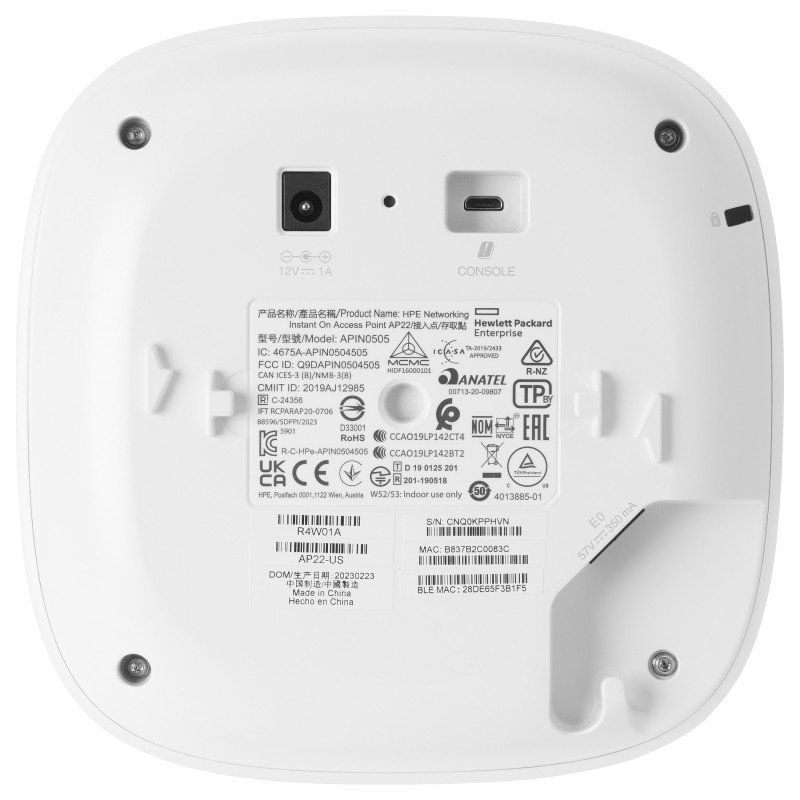

I/O ports: 1 GbE BaseT Uplink DC Power Connector Bluetooth Low Energy (BLE) LED status Indicators Reset/LED control button Kensington security slot.
Mounting: Ceiling/Wall-mount clip
Weight (imperial): 0.499 kg (1.1 lbs)

Operational conditions

Operating temperature (T-T): 0 - 40 °C

Logistics data

Harmonized System (HS) code: 85176990
