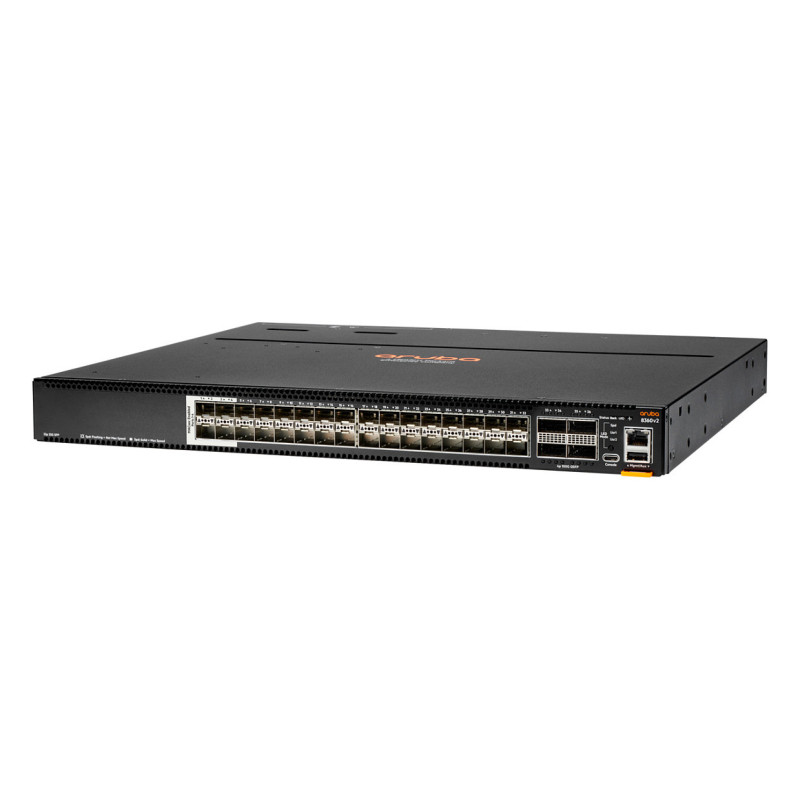

HPE Aruba Networking CX 8360-32Y4C v2 32p 25G SFP / + / 28 4 sek. 4p 100G QSFP+ / 28 FB 3 ventiliatoriai 2 kintamosios s

HPE Aruba Networking CX 8360-32Y4C v2 32p 25G SFP/+/28 4 Sec 4p 100G QSFP+/28 FB 3 Fans 2 AC Bdl. Switch type: Managed, Switch layer: L3. Console port: RJ-45/USB Type-C. MAC address table: 212992 entries, Switching capacity: 2400 Gbit/s. Networking standards: IEEE 802.1AE, IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s,.... Rack mounting, Form factor: 1U

The HPE Aruba Networking CX 8360 v2 Switch Series is designed for next-generation core and aggregation layer of campuses, as well as virtual and highly dynamic data center environments. The switch series provides up to 4.8 Tbps switching capacity, with line-rate Gigabit Ethernet interfaces including support for HPE Smart Rate (1/2.5/5 Gbps), 10 Gbps, 25 Gbps, 40 Gbps, 50 Gbps, and 100 Gbps connectivity in a compact 1U form factor. These switches deliver a fantastic investment for customers wanting to migrate from older 1/10GbE to faster 25GbE, or from 10/40GbE uplinks to 50/100GbE ports. In addition, the 48 and 32 x 25G port CX 8360 models support low-density MACsec ports and enable secured connectivity at 10GbE and 25GbE over unsecured domains. MACsec is also supported on 2 high-speed 40/100G ports on the CX 8360 48-port model.

What is new supporting point:
High availability with industry-leading HPE Aruba Networking Virtual Switching Extension (VSX) redundancy and redundant power supplies and fans
Intelligent monitoring and visibility are delivered by the HPE Aruba Networking CX Network Analytics Engine (NAE)
High performance fully distributed architecture provides up to 4.8 Tbps switching and 1786 Mpps for forwarding
48-port 1/10/25G with 4 MACsec, 6-port of 40/100G with 2 MACsec (MACsec secured connectivity over untrusted domains)
Advanced Layer 2/3 feature set includes BGP, OSPF, VRF, EVPN, VXLAN and IPv6
The CX 8360 48 and 32 x 25G port models support low-density MACsec ports and enable secured connectivity at 10GbE and 25GbE over unsecured domains

Management features

Switch type: Managed
Switch layer: L3
Feature: Quality of Service (QoS) support

Ports & interfaces

SFP+ module slots quantity: 32
QSFP+ module slots quantity: 4
Fiber optic connector: QSFP+, QSFP28, SFP, SFP+, SFP28
Console port: RJ-45/USB Type-C

Network

Feature: 10G support
Feature: Port mirroring
Feature: Flow control support
Feature: Link aggregation
Feature: Spanning tree protocol
Ethernet LAN data rates: 1000,10000,25000,40000,100000 Mbit/s
Feature: VLAN support
Number of VLANs: 4094

Data transmission

Switching capacity: 2400 Gbit/s
Throughput: 1309 Mpps
MAC address table: 212992 entries
Feature: Static route
Feature: Jumbo frames support
Packet buffer memory: 32 MB

Security

DHCP features: DHCP server
Feature: Access Control List (ACL)
Access Control List (ACL) egress: 8192
Access Control List (ACL) ingress: 65536
Feature: IGMP snooping
IGMP entries: 7000
Security algorithms: SNMPv2, SNMPv3
Feature: SSH/SSL support
Authentication type: RADIUS, TACACS+

Multicast features

Feature: Multicast support

Protocols

Routing protocols: BGP4, MPLS, OSPF, RIP, RIPng, RIP-2
IPv4 & IPv6 features: IPv4/IPv6 access-control list (ACL)

Design

Feature: Rack mounting
Form factor: 1U
Feature: Redundant fans support
Ventilation system: Front-to-back airflow
Airflow direction: Front-to-back airflow
Number of fans: 3 fan(s)

Performance

Feature: Built-in processor
Processor frequency: 1800 MHz
Memory type: RAM / Flash
Internal memory: 16384 MB
Flash memory: 32000 MB

Power

Power source: AC
Feature: Power supply included
Feature: Redundant power supply (RPS) support
Number of power supply units: 2
AC input voltage: 200 - 240 V
AC input frequency: 47/63 Hz
Power consumption (max): 425 W
Power consumption note: Maximum: 425W Idle:120W
Power supply note: 2 field-replaceable and hot-swappable power supplies depending on the model

Other features

Memory and processor: CPU: 1.8 GHz 4-core 64-bit RAM: 16 GB Flash/Storage: 32 GB Packet Buffer: 32 MB
Performance management: RJ45 serial and USB-C console RJ45 Ethernet port USB-Type A
Weight (imperial): 8.19 kg (18.1 lbs)
Fan: 3 field-replaceable and hot-swappable fans

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 15 - 95%
Storage relative humidity (H-H): 15 - 95%
Heat dissipation: 1.45 BTU/h

Weight & dimensions

Width: 44 mm
Depth: 44.2 mm
Height: 406 mm
Weight: 8.19 kg
