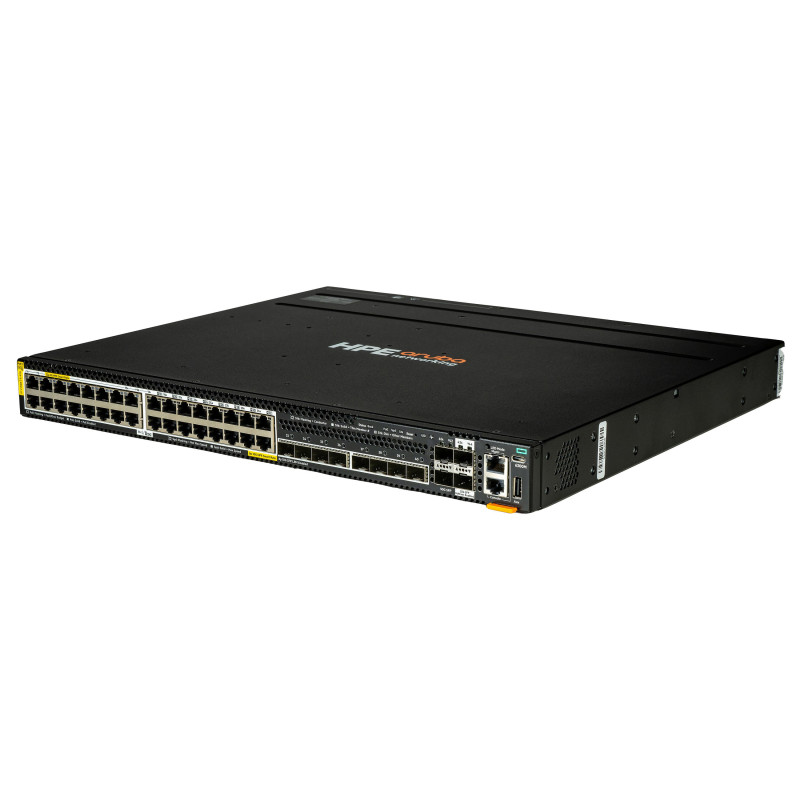

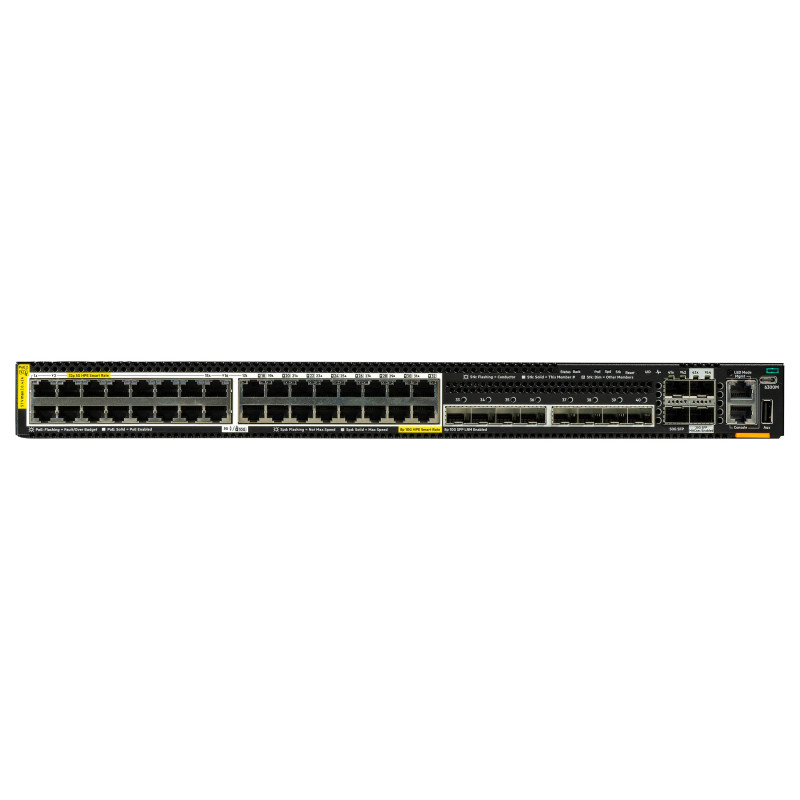

HPE Aruba Networking 6300M 32p SmtRt 5G CL8 8p SFP+ 10G LRM 2p SFP28 25G MACsec 2p SFP56 50G Switch

HPE Aruba Networking CX 6300M 32p SmtRt 5G CL8 8p SFP+ 10G LRM 2p SFP56 50G 2p SFP28 25G MACsec Sw. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: 5G Ethernet (100/1000/5000), Basic switching RJ-45 Ethernet ports quantity: 32, Console port: RJ-45/USB Type-C. Switching capacity: 780 Gbit/s. Networking standards: IEEE 802.3af. Power over Ethernet (PoE)

The HPE Aruba Networking CX 6300 Switch Series is a modern, flexible, and intelligent family of stackable switches ideal for access, aggregation, and data center top-of-rack (ToR). Featuring a cloud-native design and fully programmable operating system (OS). The CX 6300 delivers advanced monitoring and troubleshooting with capabilities like a real-time network analytics engine, HPE Aruba Networking Switch Multi-Edit Software and flexible deployment options to implement and validate network configurations. A powerful Gen7 ASIC architecture delivers fast, non-blocking performance for AI, Wi-Fi 7, and Internet of Things (IoT) requirements. HPE Aruba Networking Virtual Stacking Framework (VSF) allows for stacking of up to 10 switches, providing scale and simplified management. This flexible series has built-in high-speed uplinks and supports high-density IEEE 802.3bt high-power PoE with HPE Smart Rate multi-gigabit Ethernet.

What is new supporting point:
High availability with choice between 2 to 10-member Virtual Switching Framework (VSF) stacking for scale, or 2-member Virtual Switching Extension (VSX) cluster for active-active redundancy
Options include 24 to 48-port of HPE Smart Rate multi-gigabit (1/2.5/5/10GbE) and 1GbE fiber, supporting up to 90W 802.11bt PoE, all with telemetry and automation via the CX Network Analytics Engine
Powerful 7th Gen ASIC architecture provides the CX 6300 series with 880 to 1760 Gbps system switching capacity, 660 to 1310 Mpps of system throughput and up to 200 to 400 Gbps stacking bandwidth
The HPE Aruba Networking CX 6300 Switch Series is a family of stackable Layer 3 switches with BGP, EVPN, VXLAN, VRF, OSPF routing, robust quality of service (QoS), MACsec 256, PTP, AVB and LRM ^[1]
Three stackable Layer 2-only CX 6300L switches with HPE Smart Rate multi-gigabit and MACsec 256 encryption are available for high performance access deployments
Manage through single point of control with HPE Aruba Networking Central across wired, wireless, and WAN. Dynamic segmentation enables enhanced security and simple access for users and IoT

Management features

Switch type: Managed

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 32
Basic switching RJ-45 Ethernet ports type: 5G Ethernet (100/1000/5000)
Console port: RJ-45/USB Type-C

Network

Networking standards: IEEE 802.3af

Data transmission

Switching capacity: 780 Gbit/s
Throughput: 580 Mpps
Latency (1 Gbps): 5.5 µs
Latency (10 Gbps): 2.3 µs
Packet buffer memory: 8 MB

Design

Feature: Stackable
Product colour: Black

Performance

Physical stacking (units): 10
Feature: Built-in processor
Processor frequency: 1800 MHz
Memory type: DDR4-SDRAM
Internal memory: 8000 MB
Flash memory: 32000 MB

Power

Power source: AC
Feature: Power supply included
AC input voltage: 100 - 240 V
Power consumption note: With JL670A PSU: Idle: 106W 100% Traffic Rate: 159W With JL758A PSU: Idle: 118W 100% Traffic Rate: 156W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget: 2880 W

Other features

Latency: Less than 5 µs 10 Gbps LRM: 2.3 µs 10 Gbps dual mode ports: 5.5 µs 25 Gbps: 3.5 µs
Memory and processor: CPU: Dual-core Arm Cortex-A9 @ 1.8GHz Memory: 8 GB DDR4, 32 GB eMMC Flash: 8 MB, 16 MB, or 32 MB, depending on model and configuration
Performance management: Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software
Weight (imperial): 6.02 kg (13.3 lbs)

Operational conditions

Operating temperature (T-T): 0 - 45 °C

Weight & dimensions

Width: 44 mm
Depth: 442 mm
Weight: 6.02 kg
