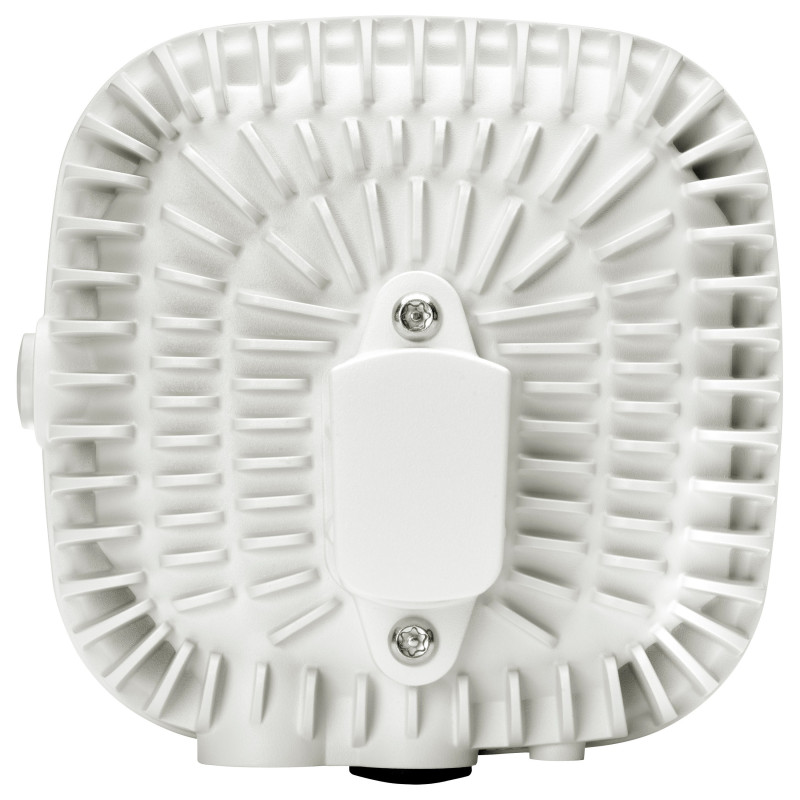

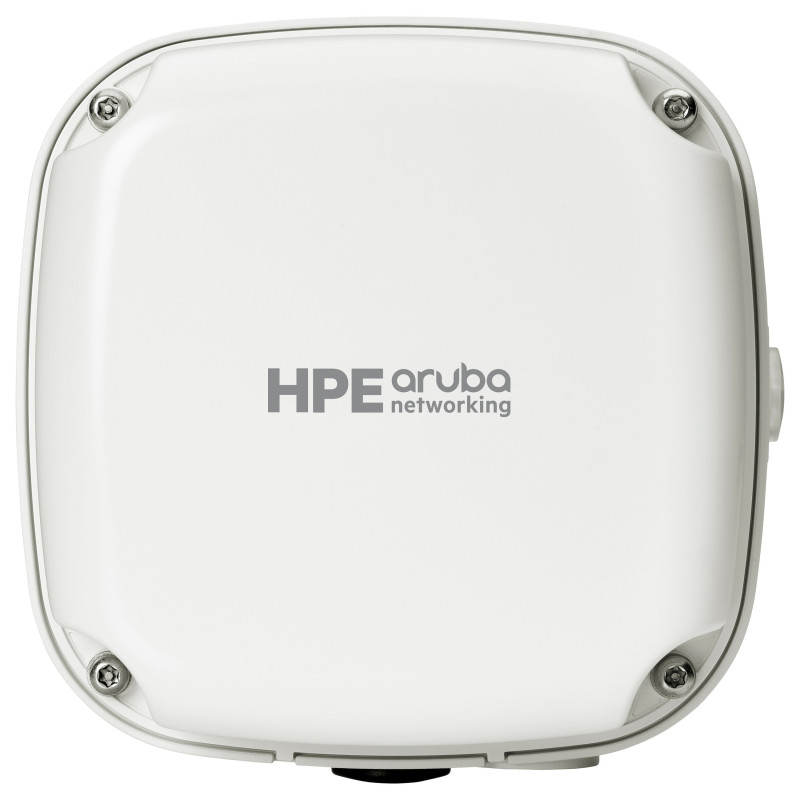

HPE Aruba Networking AP-565 (RW) 802.11ax dvigubos 2x2 radijo integruotos daugiaantenės lauko prieigos taškas

HPE Aruba Networking AP-565 (RW) 802.11ax Dual 2x2 Radio Integrated Omni Antennas Outdoor AP. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1774 Mbit/s. Security algorithms: WPA2, WPA3. Ethernet LAN data rates: 1000 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 15.6 W

The HPE Aruba Networking 560 Series Outdoor Access Points provide cost-effective Wi-Fi 6 wireless connectivity in outdoor and environmentally challenging locations. With Wi-Fi 6 capabilities, Bluetooth 5 and 802.15.4/Zigbee radios, and maximum aggregate data rate of 1.49 Gbps, the 560 series delivers the speed and reliability needed to bring medium-density Wi-Fi 6 outdoors. These Wi-Fi 6 outdoor access points are ready to survive high wind, extreme temperatures, and moisture and can be quickly deployed using zero touch provisioning (ZTP). HPE Aruba Networking Central provides a single pane of glass for overseeing wired and wireless LANs, WANs, and virtual private networks (VPNs). AI‐powered analytics, end‐to‐end orchestration and automation, and advanced security features are built natively into the solution. The 560 series outdoor APs include a limited lifetime warranty.

What is new supporting point:
Entry-level outdoor Wi-Fi 6 (802.11ax) access points that provide up to 1.49 Gbps peak aggregate data rate and are ideal for outdoor and warehouse environments
Purpose-built to survive in the harshest outdoor environments and extreme temperatures (-40 ̊C to +55 ̊C)
Ready for Internet of Things (IoT) with a built-in Bluetooth 5 and 802.15.4 radio that supports Zigbee
Small form factor for flexible deployment.
Client and RF optimization to match clients with the best available access point and reduce coverage gaps
Dynamic segmentation and policy enforcement firewalls (PEFs) that automatically enforce consistent policies across all networks, keeping users and devices secure

Features

Feature: 2.4 GHz
Feature: 5 GHz
Maximum data transfer rate: 1774 Mbit/s
Maximum data transfer rate (2.4 GHz): 574 Mbit/s
Maximum data transfer rate (5 GHz): 1200 Mbit/s
Ethernet LAN data rates: 1000 Mbit/s
Frequency band: 20/40 (2.4GHz), 20/40/80 (5GHz), peak data rate 1.49 Gbps, maximum data rate 1.78 Gbps
Networking standards: IEEE 802.11ax, IEEE 802.11mc
Feature: Bluetooth
Bluetooth version: 5.0
Feature: MDI / DMI-X automatic switchover
Feature: MIMO
MIMO type: Multi User MIMO
Spread spectrum method: DSSS, OFDM, OFDMA
Modulation: 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK

Security

Security algorithms: WPA2, WPA3

Management features

Access point management: On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
USB connector type: USB Type-C

Power

Feature: Power over Ethernet (PoE)
Power consumption (max): 15.6 W

Design

Placement: Pole, Wall
Product colour: White
Recommended usage: Outdoor

Antenna

Antenna type: Internal
Antenna direction type: Omni-directional
Antenna features: Integrated antenna
Antenna gain level (max): 5.4 dBi

Performance

Compatible operating systems: HPE Aruba Networking Wireless Operating System 8 and HPE Aruba Networking Instant OS 8.7.1.0 HPE Aruba Networking Wireless Operating System 10.3.0.0

Certificates

Compliance certificates: Federal Communications Commission (FCC), ISED, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD)

Weight & dimensions

Width: 165 mm
Depth: 130 mm
Height: 165 mm
Weight: 1.03 kg

Other features

I/O ports: E0: 10/100/1000BASE-T (RJ-45) USB-C console interface
Weight (imperial): 1.03 kg (2.27 lbs)

Operational conditions

Operating relative humidity (H-H): 5 - 95%
Operating temperature (T-T): -40 - 55 °C
Storage temperature (T-T): -40 - 70 °C
Operating altitude: 0 - 3000 m

Logistics data

Harmonized System (HS) code: 85176990
