HPE Aruba Networking AP-515 (RW) dvigubo radijo 4x4 / 2x2 802.11ax vidinės antenos, vieningas universiteto prieigos tašk

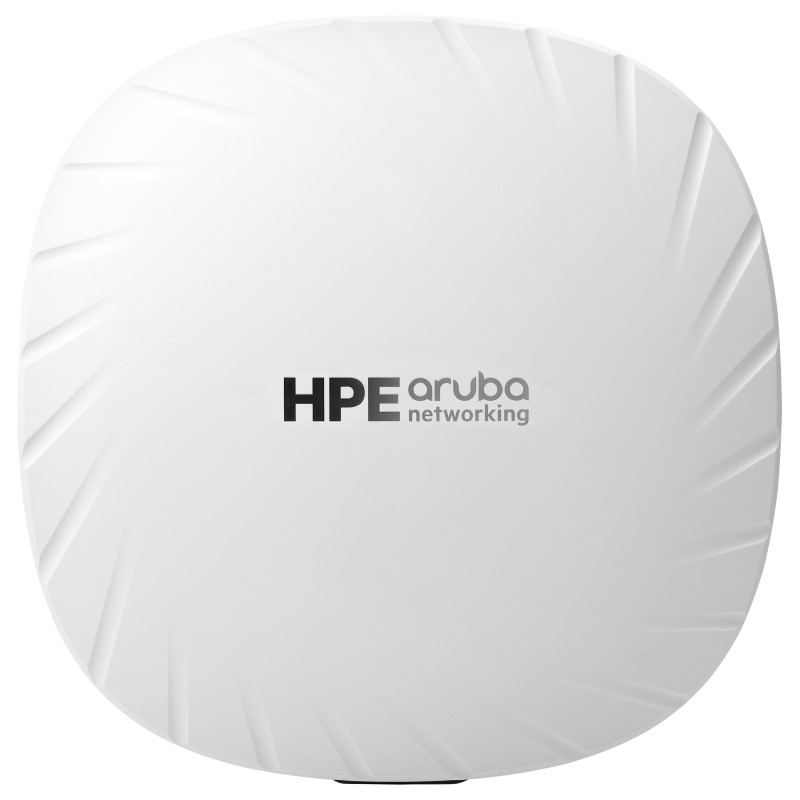

HPE Aruba Networking AP-515 (RW) Dual Radio 4x4/2x2 802.11ax Internal Antennas Unified Campus AP. 2.4 GHz, 5 GHz, Maximum data transfer rate: 5375 Mbit/s. Security algorithms: WMM, WPA, WPA2. Ethernet LAN data rates: 1000,2500,5000 Mbit/s. Power over Ethernet (PoE). Product colour: White

The HPE Aruba Networking 510 Series Campus Access Points deliver Wi-Fi 6 coverage ideal for office spaces, training and meeting facilities, and hospitals. With 2.69 Gbps maximum combined data rate, multi-gigabit Ethernet for fast wired connectivity, and built-in Internet of Things (IoT) radio, the 510 series delivers reliable, high-performance Wi‐Fi CERTIFIED for medium density campus environments. The 510 series can be deployed using zero touch provisioning (ZTP) for ease of implementation at remote locations. It is Wi-Fi and supports 802.11ax features: OFDMA for multi-user efficiency, target wake time (TWT) to extend the battery life of connected IoT devices, and WPA3 and Enhanced Open for greater password and guest security. The 510 series includes a limited lifetime warranty.

What is new supporting point:
Dynamic segmentation and policy enforcement firewalls (PEF) automatically enforce consistent policies across wired and wireless networks, enhancing user and device security
It is offered in optional eco-friendly 10-packs
Wi-Fi 6 AP provides up to 2.69 Gbps maximum combined data rate
The 510 series supports OFDMA for enhanced multi-user efficiency, and WPA3 and Enhanced Open for greater security
IoT-ready with Bluetooth 5 and Zigbee support and fast wired connections with 2.5 Gbps Ethernet and 1 Gbps Ethernet ports
It has client and RF optimization to match clients with the optimal AP and reduce coverage gaps

Features

Feature: 2.4 GHz
Feature: 5 GHz
Maximum data transfer rate: 5375 Mbit/s
Maximum data transfer rate (2.4 GHz): 575 Mbit/s
Maximum data transfer rate (5 GHz): 4800 Mbit/s
Ethernet LAN data rates: 1000,2500,5000 Mbit/s
Frequency band: 20/40 (2.4 GHz), 20/40/80/160 (5 GHz), and maximum peak data rate 2.69 Gbps
Networking standards: IEEE 802.11ax, IEEE 802.11mc
Feature: Auto MDI/MDI-X
Feature: MIMO
Spread spectrum method: DSSS, OFDM
Modulation: 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK

Security

Security algorithms: WMM, WPA, WPA2

Management features

Access point management: On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service

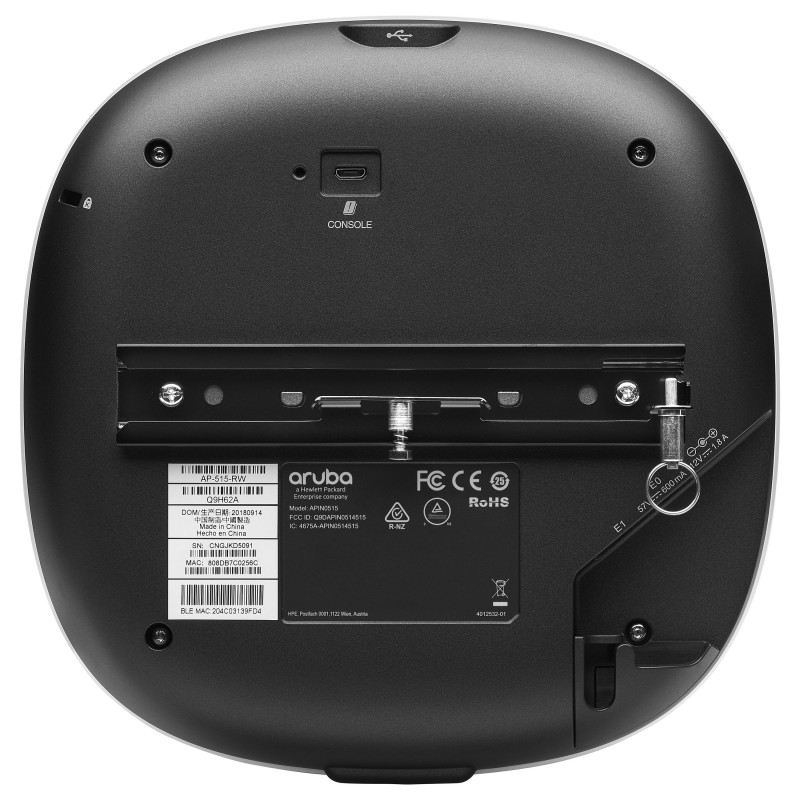

Ports & interfaces

Ethernet LAN (RJ-45) ports: 2
USB 2.0 ports quantity: 1
USB connector type: USB Type-A
Feature: DC-in jack

Power

Feature: Power over Ethernet (PoE)
Power consumption (typical): 16 W

Design

Placement: Ceiling
Product colour: White
Feature: Cable lock slot
Cable lock slot type: Kensington
Recommended usage: Indoor

Antenna

Antenna type: Internal
Antenna direction type: Omni-directional
Antenna features: Integrated antenna
Antennas quantity: 4
Antenna gain level (max): 7.5 dBi

Certificates

Compliance certificates: Federal Communications Commission (FCC), ISED, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD)

Weight & dimensions

Width: 200 mm
Depth: 200 mm
Height: 46 mm
Weight: 810 g

Packaging data

Package width: 230 mm
Package depth: 220 mm
Package height: 72 mm
Package weight: 1.01 kg

Operational conditions

Operating relative humidity (H-H): 5 - 93%
Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 5 - 93%

Logistics data

Harmonized System (HS) code: 85176990
