HPE Aruba Networking CX 4100i 12p 1GbE 8p Class4 PoE ir 4p Class6 2p Jungiklis

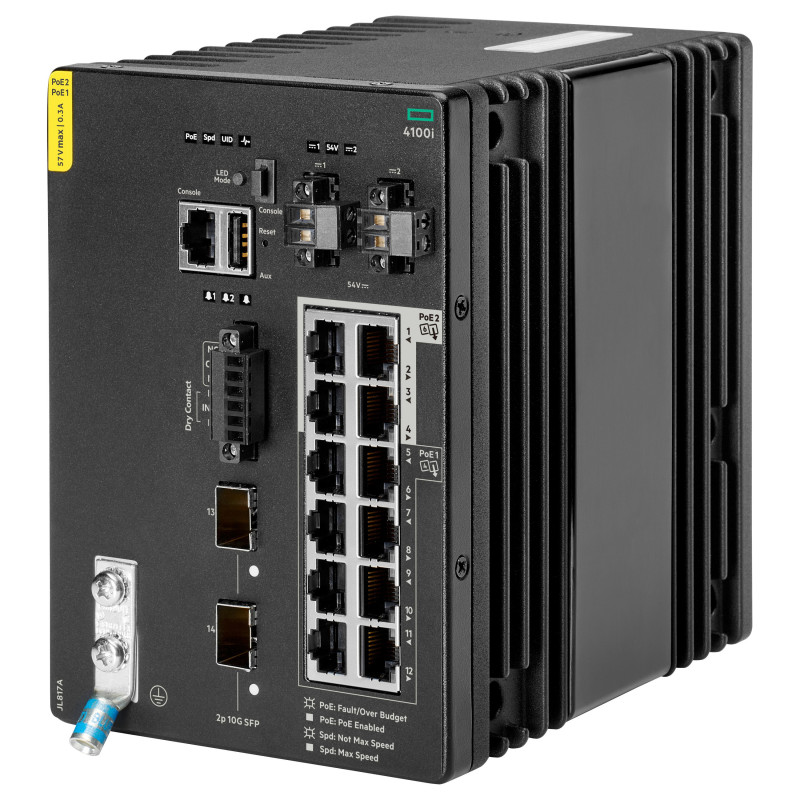

HPE Aruba Networking CX 4100i 12p 1GbE 8p Class4 PoE and 4p Class6 PoE 2p SFP+ DIN Mount Switch. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 12, Console port: RJ-45/USB Type-C. MAC address table: 8192 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE.... DC input voltage: 12 - 48 V. Power over Ethernet (PoE). Rack mounting, Form factor: 4U

The HPE Aruba Networking CX 4100i Switch Series is a modern family of ruggedized Ethernet switches ideal for connecting IoT, access points, and user devices in harsh environments. Created for high performance, reliable, and secure access with enhanced security, the CX 4100i switches provide versatile deployment options for enterprise networks extending beyond carpeted areas to challenging outdoor and industrial spaces. Based on the programmable HPE Aruba Networking CX Switch Operating System (AOS-CX) used across the CX portfolio, this IP30 ruggedized series helps deliver a more consistent and efficient operator experience. This Layer 2 series has convenient built-in high speed uplinks, supports both 30W and 60W PoE, and is ready for deployment with fan less 12 port DIN mount and 24 port 1U rack mount models. With robust QoS, support for static routing, and IPv6, the CX 4100i series also simplifies ownership with no switch software licensing requirements.

What is new supporting point:
Layer 2 feature set with static routing and no switch software licensing required.
HPE Aruba Networking Virtual Switching Framework (VSF) now available to scale up local network resources and resiliency requirements.
HPE Aruba Networking Dynamic Segmentation enables enhanced security and simplified access for users and IoT.
Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software.
Versatile form factors with fast 1/10 GbE uplinks deliver both 30W and 60W PoE to improve IoT power.
Ruggedized Layer 2 switch series provides high performance, fully manageable, and reliable, Ethernet connectivity to IoT, access points, and user devices in harsh environments.

Management features

Switch type: Managed
Switch layer: L2
Feature: Quality of Service (QoS) support

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 12
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity: 2
Console port: RJ-45/USB Type-C

Network

Feature: 10G support
Feature: Port mirroring
Feature: Spanning tree protocol
Feature: VLAN support

Data transmission

Switching capacity: 128 Gbit/s
Throughput: 95 Mpps
MAC address table: 8192 entries
Latency (1 Gbps): 2.39 µs
Latency (10 Gbps): 2.038 µs
Feature: Jumbo frames support
Packet buffer memory: 12.38 MB

Security

DHCP features: DHCP client
Feature: Access Control List (ACL)
Feature: IGMP snooping
Security algorithms: SSH, SSH-2
Feature: SSH/SSL support
Authentication: MAC-based authentication, Web-based authentication
Authentication type: RADIUS, TACACS+

Multicast features

Feature: Multicast support

Design

Feature: Rack mounting
Form factor: 4U
Product colour: Black

Performance

Feature: Built-in processor
Processor model: ARM Cortex-A9
Processor frequency: 1016 MHz
Memory type: DDR3-SDRAM
Internal memory: 4096 MB
Flash memory: 32000 MB

Power

Power source: AC
Feature: Redundant power supply (RPS) support
AC input voltage: 100 - 240 V
DC input voltage: 12 - 48 V

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget: 360 W

Other features

Latency: 1 Gbps: 2.390 μSec , 10 Gbps: 2.038 μSec Average Latency (LIFO-64-bytes packets)
Memory and processor: 4 GB DDR3 32 GB eMMC Dual Core ARM Cortex A9 @ 1016 Mhz
Performance management: Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software.
Weight (imperial): 3.71 kg (8.18 lbs)

Operational conditions

Operating temperature (T-T): -40 - 60 °C
Operating relative humidity (H-H): 5 - 95%
Storage relative humidity (H-H): 5 - 95%
Operating altitude: 0 - 4200 m
Non-operating altitude: 0 - 4600 m

Weight & dimensions

Width: 113 mm
Depth: 162.9 mm
Height: 160 mm
Weight: 3.71 kg

Logistics data

Harmonized System (HS) code: 85176990
