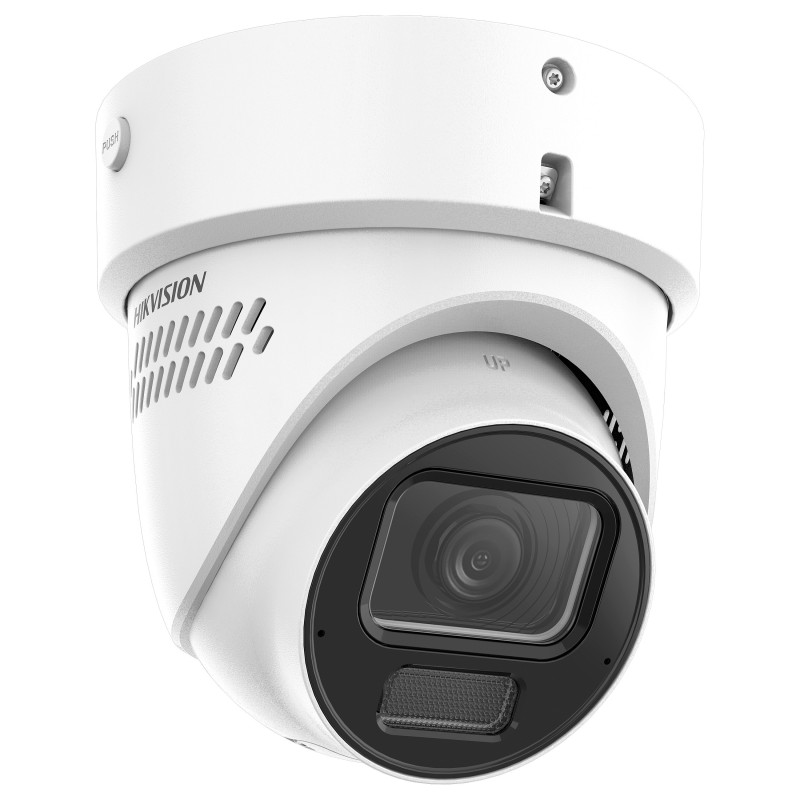

Hikvision „Pro“ serijos su „ColorVu DS-2CD2H87G3-LIZS2UY / SL(2.8-12MM“ apsaugos kamera

Hikvision Pro Series with ColorVu DS-2CD2H87G3-LIZS2UY/SL(2.8-12MM). Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Turret. Angle of rotation: 360°, Lens viewing angle, horizontal: 112.3 - 41.2°, Lens viewing angle, vertical: 58.1 - 23.1°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Focal length range: 2.8 - 12 mm, Focus: Motorized/Manual, Detect distance (wide): 89.2 m

Hikvision is committed to technological innovation for a safer and smarter future. This year, Hikvision is proud to introduce four cutting-edge technologies — ColorVu 3.0, AcuSense 3.0, Audio 2.0, and Motorization 2.0, and seamlessly integrate them into the new EasyIP 4.0 Plus security cameras. Making pro, more pro.

Performance

Type: IP security camera
Placement supported: Outdoor
Connectivity technology: Wired
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode
Feature: Infrared (IR) cut-off filter
Feature: Alarm input/output
Number of languages: 33
Languages support: Multi
Dynamic range: 130 dB

Design

Form factor: Turret
Mounting type: Ceiling/wall
Product colour: White
Housing material: Metal
Protection features: Corrosion resistant, Dust resistant, Water resistant
International Protection (IP) code: IP67
IK code: IK10

Camera

Minimum illumination: 0 lx
Angle of rotation: 360°
Lens viewing angle, horizontal: 112.3 - 41.2°
Lens viewing angle, vertical: 58.1 - 23.1°
Lens viewing angle, diagonal: 137.4 - 47.3°
Tilt angle range: 0 - 75°
Pan range: 0 - 360°
Camera shutter speed: 1 - 1/100000 s
Number of Privacy masking areas: 4

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 1.8 mm (1 / 1.8")
Feature: Progressive scan
Sensor type: CMOS

Lens system

Number of lenses: 1
Focal length range: 2.8 - 12 mm
Focus: Motorized/Manual
Maximum aperture number: 1.2
Detect distance (wide): 89.2 m
Detect distance (tele): 220 m
Observe distance (wide): 35.4 m
Observe distance (tele): 87.3 m
Recognize distance (wide): 17.8 m
Recognize distance (tele): 44 m
Identify distance (wide): 8.9 m
Identify distance (tele): 22 m

Night vision

Feature: Night vision
Night vision distance: 40 m
B/W night vision distance: 40 m
LED type: IR
Infra-red wavelength: 850 nm

Video

Maximum resolution: 3840 x 2160 pixels
Total megapixels: 8 MP
Video compression formats: H.264, H.264+, H.265, H.265+, M-JPEG
Supported graphics resolutions: 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2688 x 1520, 3200 x 1800, 3840 x 2160
Frame rate: 30 fps
Feature: Video streaming
Feature: Noise reduction
Noise reduction technology: 3D noise reduction
Image quality adjustment: Brightness, Contrast, Saturation, Sharpness
Feature: Privacy masking
Feature: Image stabilizer
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate: 32 Kbps - 16 Mbps
Feature: Back Light Compensation (BLC)
Feature: Highlight Compensation (HLC)
Feature: Region of Interest (ROI) encoding

Audio

Feature: Built-in speaker(s)
Audio input channels: 1.0 channels
Audio output channels: 1.0 channels
Audio formats supported: AAC-LC, G.711, G.722.1, G.726, MP2L2, MP3, PCM
Signal-to-Noise Ratio (SNR): 52 dB
Feature: Built-in microphone
Number of microphones: 2
Bit rate range: 8 - 320 Kbit/s
Sample rates: 8 - 48 kHz

Network

Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet
Number of users: 32 user(s)
User access level: Administrator, Operator, User
Feature: Quality of Service (QoS) support
Client interoperability: iVMS-4200, Hik-Connect, Hik-Central
Feature: Live view
Number of simultaneous live view channels: 6 channels

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size: 512 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
Feature: Terminal block port

Security

Alarm input channels: 2
Alarm output channels: 2
Feature: Password protection
Feature: Video motion detection
Feature: IP address filtering
Security algorithms: EAP-LEAP, EAP-MD5, EAP-TLS
Feature: HTTPS encryption
Feature: Privacy protection
Feature: Heartbeat
Feature: Mirror
Feature: Digital watermark
Feature: Password reset via email
Feature: Pixel counter
Feature: Human and vehicle targets classification
Feature: Audit log
Feature: Automatic Network Replenishment (ANR)
Feature: Digest authentication
Feature: Network access storage (NAS)

Management features

Feature: Web-based management
Feature: Reset button
Behavior analysis: Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection

Power

Power source type: DC, PoE
Power consumption (max): 16.8 W
Power consumption (Power over Ethernet (PoE)): 20 W
DC output voltage: 12
DC output current: 1.4 A

Operational conditions

Operating temperature (T-T): -30 - 60 °C
Storage temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%

Weight & dimensions

Height: 142.7 mm
Diameter: 14.3 cm
Weight: 1.26 kg

Packaging data

Package width: 170 mm
Package depth: 170 mm
Package height: 225 mm
Package weight: 1.53 kg

Sustainability

Feature: Sustainability compliance
Compliance certificates: CB, CE, KC, RoHS

Packaging content

Number of cameras: 1

Technical details

Output impedance: 100 Ω
