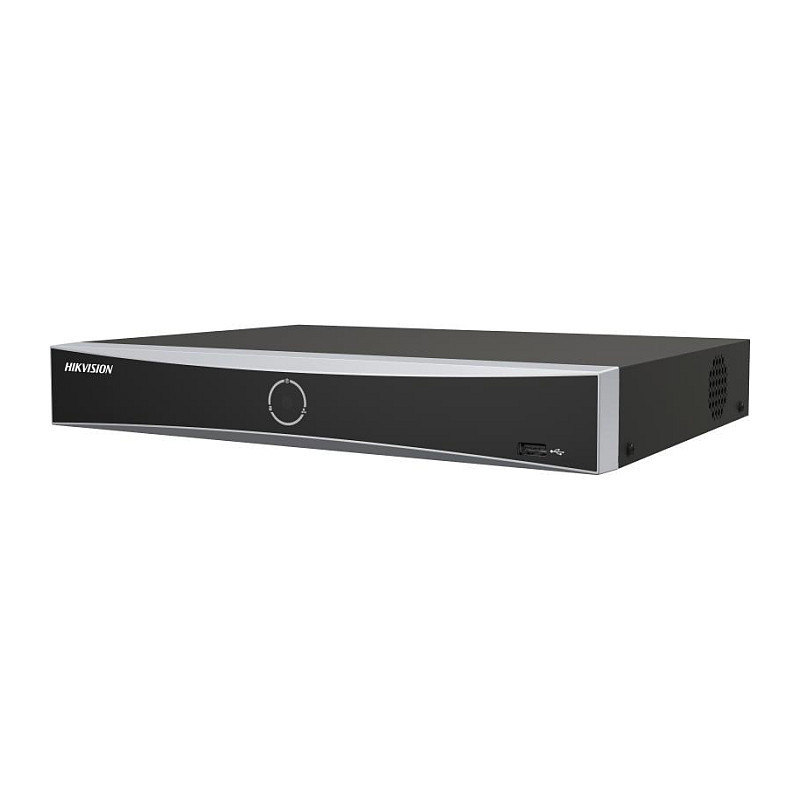

Hikvision Pro Serija DS-7616NXI-K1(D ) tinklo vaizdo įrašymo įrenginys

Hikvision Pro Series DS-7616NXI-K1(D). Video input channels: 16 channels, Maximum resolution: 3840 x 2160 pixels, Number of simultaneously playbacked channels: 16 channels. Maximum storage capacity: 10 TB, HDD interface: SATA. Ethernet LAN data rates: 10,100,1000 Mbit/s, Supported network protocols: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP,.... Rack capacity: 1U, Brand compatibility: Hikvision Digital Technology, Product colour: Black. Power consumption (max): 10 W, Output current: 1.5 A, Output voltage: 12 V

Take your security to the next level

Hikvision's AcuSense technology embeds deep-learning algorithms into security cameras and video recorders to equip businesses and homeowners with smart tools to take security to the next level, both indoors and outdoors.

Performance

Video input channels: 16 channels
Number of simultaneously playbacked channels: 16 channels
Maximum resolution: 3840 x 2160 pixels
Supported resolutions: 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Feature: Two-way talk
Audio formats supported: AAC, G.711 A-law, G.711 μ-law, G.722, G.726
Video formats supported: H.264, H.264+, H.265, H.265+
Maximum frame rate: 30 fps
Input bandwidth: 160 Mbit/s
Output bandwidth: 80 Mbit/s
Feature: Face detection

Hard drive

Number of HDDs supported: 1
Maximum storage capacity: 10 TB
HDD interface: SATA

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: HDMI output
HDMI ports quantity: 1
VGA (D-Sub) output ports: 1
USB 2.0 ports quantity: 2
Audio RCA inputs: 1
Audio RCA outputs: 1
Internal SATA ports quantity: 1
Feature: DC-in jack
Supported network protocols: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS

Features

Feature: Rack mounting
Rack capacity: 1U
Brand compatibility: Hikvision Digital Technology
Feature: On/off switch
Product colour: Black

Power

Power consumption (max): 10 W
Output current: 1.5 A
Output voltage: 12 V

Operational conditions

Operating temperature (T-T): -10 - 55 °C
Operating relative humidity (H-H): 10 - 90%

Technical details

Feature: Sustainability compliance
Compliance certificates: CE, Federal Communications Commission (FCC)

Weight & dimensions

Width: 320 mm
Depth: 240 mm
Height: 48 mm
Weight: 1 kg
