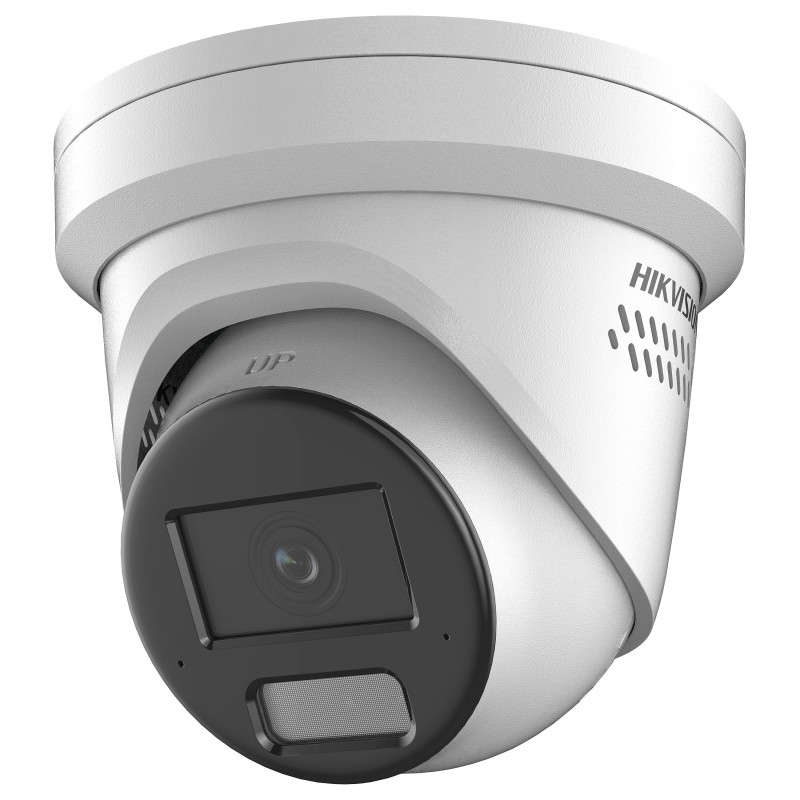

Hikvision „Pro“ serijos apsaugos kamera su „AcuSense“ DS-2CD2386G2H-IS2U / SL(2.8MM)

Hikvision Pro Series with AcuSense DS-2CD2386G2H-IS2U/SL(2.8MM). Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Turret. Angle of rotation: 360°, Lens viewing angle, horizontal: 105°, Lens viewing angle, vertical: 56°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Detect distance: 89 m, Observe distance: 35 m, Recognize distance: 17 m

Security requirements and application settings vary. That's why Hikvision designs and tailors network cameras to meet various needs, from general video monitoring to video content analytics with deep learning algorithms and beyond.

By rendering high-quality images across a range of lighting conditions, minimizing storage and bandwidth requirements and providing data-powered situational awareness, Hikvision network cameras can help users make smart decisions. Our network cameras are the ideal choice for hundreds of application scenarios.

Performance

Type: IP security camera
Placement supported: Outdoor
Connectivity technology: Wired
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode
Feature: Infrared (IR) cut-off filter
Number of languages: 33
Languages support: Multi
Dynamic range: 120 dB

Design

Form factor: Turret
Mounting type: Ceiling/wall
Product colour: White
Housing material: Metal
Protection features: Dust resistant, Water resistant
International Protection (IP) code: IP67

Camera

Minimum illumination: 0 lx
Angle of rotation: 360°
Lens viewing angle, horizontal: 105°
Lens viewing angle, vertical: 56°
Lens viewing angle, diagonal: 130°
Tilt angle range: 0 - 75°
Pan range: 0 - 360°
Camera shutter speed: 1/3 - 1/100000 s
Number of Privacy masking areas: 4

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 1.8 mm (1 / 1.8")
Feature: Progressive scan
Sensor type: CMOS

Lens system

Number of lenses: 1
Detect distance: 89 m
Observe distance: 35 m
Recognize distance: 17 m
Maximum aperture number: 1
Identify distance: 8 m
Fixed focal length: 2.8 mm

Night vision

Feature: Night vision
Night vision distance: 30 m
LED type: IR
Infra-red wavelength: 850 nm

Video

Maximum resolution: 3840 x 2160 pixels
Total megapixels: 4 MP
Video compression formats: H.264, H.264+, H.265, H.265+, M-JPEG
Supported graphics resolutions: 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2688 x 1520, 3200 x 1800, 3840 x 2160
Feature: Video recording
Frame rate: 30 fps
Feature: Video streaming
Feature: Noise reduction
Noise reduction technology: 3D noise reduction
Gain control type: Auto
Image quality adjustment: Brightness, Contrast, Saturation, Sharpness
Feature: Privacy masking
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate: 32 Kbps - 16 Mbps
Feature: Back Light Compensation (BLC)
Feature: Highlight Compensation (HLC)
Feature: Region of Interest (ROI) encoding
Feature: Smart IR

Audio

Audio input channels: 1.0 channels
Audio output channels: 1.0 channels
Audio formats supported: AAC-LC, G.711 A-law, G.711 μ-law, G.722.1, G.726, MP2L2, MP3, PCM
Signal-to-Noise Ratio (SNR): 52 dB
Feature: Built-in microphone
Number of microphones: 2
Bit rate range: 8 - 320 Kbit/s
Sample rates: 8 - 48 kHz

Network

Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet
Networking standards: IEEE 802.3af
Number of users: 32 user(s)
User access level: Administrator, Operator, User
Feature: Quality of Service (QoS) support
Client interoperability: iVMS-4200, Hik-Connect
Feature: Live view
Number of simultaneous live view channels: 6 channels

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size: 512 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
Feature: Terminal block port

Security

Alarm input channels: 1
Alarm output channels: 1
Feature: Password protection
Feature: Video motion detection
Feature: Active tampering alarm
Feature: IP address filtering
Security algorithms: EAP-LEAP, EAP-MD5, EAP-TLS
Feature: HTTPS encryption
Feature: Privacy protection
Intelligent Video Surveillance (IVS) system features: Face detection
Feature: Heartbeat
Feature: Mirror
Feature: Digital watermark
Feature: Password reset via email
Feature: Pixel counter
Feature: Flash log
Feature: Human and vehicle targets classification
Feature: Audit log
Feature: Automatic Network Replenishment (ANR)
Feature: Digest authentication
Feature: Network access storage (NAS)

Management features

Feature: Web-based management
Feature: Reset button
Behavior analysis: Intrusion detection, Line crossing detection

Power

Power source type: DC, PoE
Power consumption (max): 16 W
Power consumption (Power over Ethernet (PoE)): 18 W
DC output voltage: 12
DC output current: 1.34 A

Operational conditions

Operating temperature (T-T): -30 - 60 °C
Storage temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%

Weight & dimensions

Height: 115.4 mm
Diameter: 13.8 cm
Weight: 780 g

Packaging data

Package width: 170 mm
Package depth: 170 mm
Package height: 160 mm
Package weight: 1.21 kg

Sustainability

Compliance certificates: CB, CE, Low Voltage Directive (LVD), RoHS, UL

Packaging content

Number of cameras: 1

Other features

Browser supported: IE 10, IE 11, Chrome 57.0+, Firefox 52.0+

Technical details

Lens mount interface: M12
