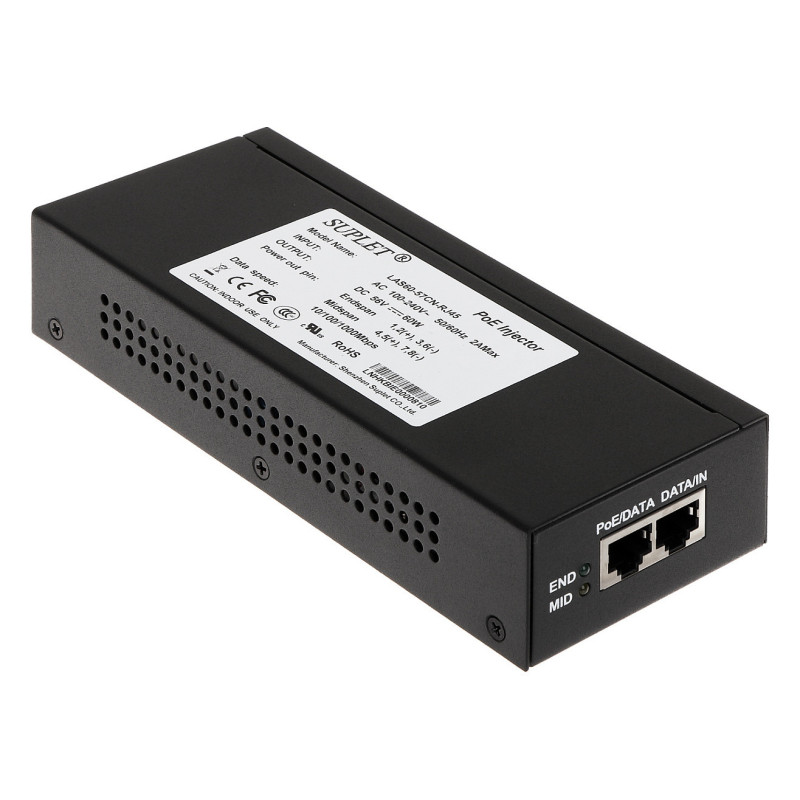

„Hikvision LAS60-57CN-RJ45 PoE“ adapteris

Hikvision LAS60-57CN-RJ45. Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3af, IEEE 802.3at. Product colour: Black, LED indicators: PoE, Power, Power protection features: Over current, Short circuit. Output power: 60 W, Input voltage: 100 - 240 V, Input frequency: 50 - 60 Hz. Weight: 473 g, Dimensions (WxDxH): 185 x 70.8 x 37 mm. Number of products included: 1 pc(s)

Hikvision POE midspan is designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3at Power-over-Ethernet (PoE) standard.

The converter signature and control circuit provides the PoE compatibility signature and power classification required by the Power Sourcing Equipment (PSE) before applying up to 60W power to the port.

Network

Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Power over Ethernet (PoE)
Networking standards: IEEE 802.3af, IEEE 802.3at

Features

Product colour: Black
LED indicators: PoE, Power
Power protection features: Over current, Short circuit

Ports & interfaces

Ethernet LAN (RJ-45) ports: 2

Power

Output power: 60 W
Input voltage: 100 - 240 V
Input frequency: 50 - 60 Hz
Input current: 2 A
AC adapter output voltage: 54 - 57 V

Operational conditions

Operating temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 5 - 90%

Weight & dimensions

Weight: 473 g
Dimensions (WxDxH): 185 x 70.8 x 37 mm

Packaging content

Number of products included: 1 pc(s)
