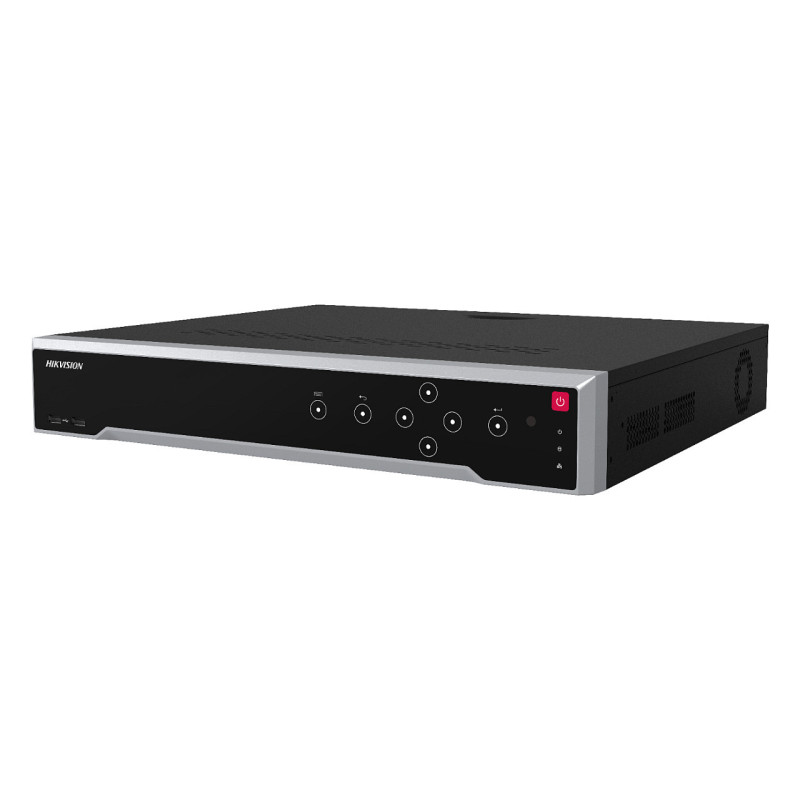

Hikvision DS-7716NI-M4 tinklas video įrašymo įrenginys

Hikvision DS-7716NI-M4. Video input channels: 16 channels, Maximum resolution: 7680 x 4320 pixels, Number of simultaneously playbacked channels: 16 channels. Maximum storage capacity: 14 TB, HDD interface: eSATA, SATA. Ethernet LAN data rates: 10,1000,100 Mbit/s, Supported network protocols: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP,.... Rack capacity: 1.5U, Brand compatibility: Hikvision Digital Technology, Product colour: Black. Power consumption (max): 15 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz

Professional and Reliability
- H.265+ compression effectively reduces the storage space by up to 75%
- Dual-stream recording saves bandwidth
- Adopt stream over TLS encryption technology which provides more secure stream transmission service
- Support double verification for playback and downloading

HD Video Output
- Provide independent HDMI and VGA outputs
- HDMI video output at up to 8K resolution
- Dual 4K HDMI output resolution

Storage and Playback
- Up to 4 SATA interfaces for HDD connection
- 16-ch synchronous playback

Smart & POS Function
- Support multiple VCA (Video Content Analytics) events
- Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.), heat map, ANPR, and people counting
- POS information overlay on live view and playback, and POS triggered recording and alarm

Network & Ethernet Access
- 2 self-adaptive 10/100/1000 Mbps Ethernet interface
- Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
- Smooth streaming technology
- Support web access without plug-in

Performance

Video input channels: 16 channels
Alarm input channels: 16
Alarm output channels: 9
Number of simultaneously playbacked channels: 16 channels
Maximum resolution: 7680 x 4320 pixels
Supported resolutions: 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF
Feature: Two-way talk
Audio formats supported: AAC, G.711 A-law, G.711 μ-law, G.722, G.726
Video formats supported: H.264, H.264+, H.265, H.265+
Input bandwidth: 256 Mbit/s
Output bandwidth: 256 Mbit/s

Hard drive

Number of HDDs supported: 5
Maximum storage capacity: 14 TB
HDD interface: eSATA, SATA

Ports & interfaces

Ethernet LAN (RJ-45) ports: 2
Ethernet LAN data rates: 10,1000,100 Mbit/s
Feature: BNC video output
Feature: HDMI output
HDMI ports quantity: 2
VGA (D-Sub) output ports: 1
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
Audio RCA inputs: 1
Audio RCA outputs: 1
eSATA ports quantity: 1
Internal SATA ports quantity: 4
RS-485 ports: 2
Feature: RS-232 interface
Feature: eSATA
RS-232 ports: 1
Supported network protocols: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS

Features

Feature: Rack mounting
Rack capacity: 1.5U
Brand compatibility: Hikvision Digital Technology
Feature: On/off switch
Product colour: Black
Certification: EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020

Power

Power consumption (max): 15 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Output current: 1 A
Output voltage: 12 V
Total Power over Ethernet (PoE) budget: 200 W

Operational conditions

Operating temperature (T-T): -10 - 55 °C
Operating relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 445 mm
Depth: 400 mm
Height: 75 mm
Weight: 5 kg
