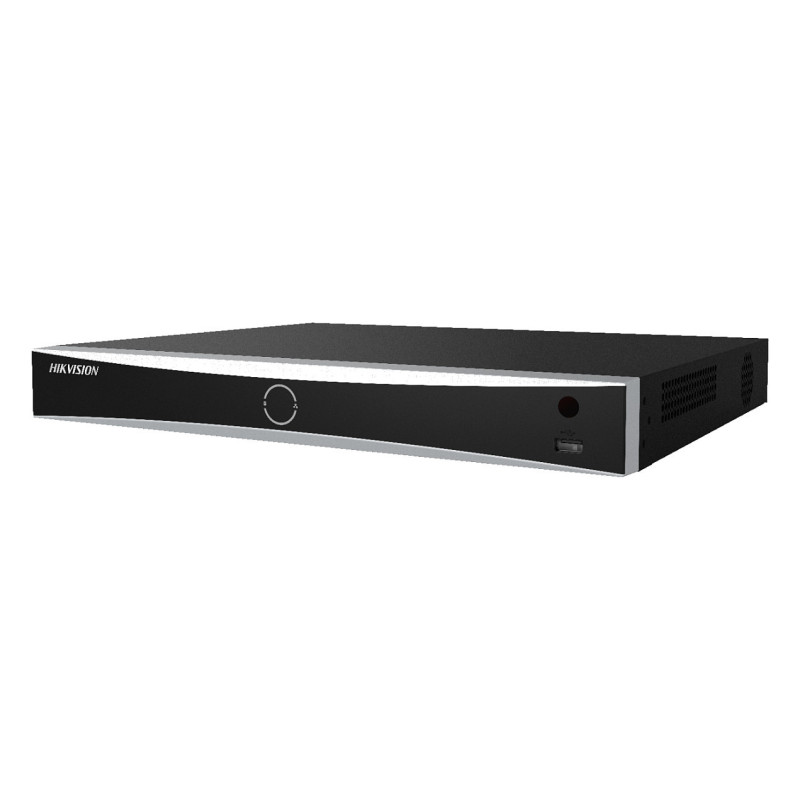

„Hikvision DS-7608NXI-K2 / 8P(D)“ tinklo vaizdo įrašymo įrenginys

Hikvision DS-7608NXI-K2/8P(D). Video input channels: 8 channels, Maximum resolution: 3840 x 2160 pixels, Number of simultaneously playbacked channels: 8 channels. HDD capacity: 10 TB, Maximum storage capacity: 20 TB, HDD interface: SATA. Ethernet LAN data rates: 10,1000,100 Mbit/s, Networking standards: IEEE 802.3af, IEEE 802.3at, Supported network protocols: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP,.... Rack capacity: 1U, Product colour: Black. Power consumption (typical): 15 W, Output current: 2.5 A, Output voltage: 48 V

Smart Function
- All channels support Motion Detection 2.0
- 1-ch facial recognition for video stream, or 4-ch facial recognition for face picture
- Smart search for the selected area in the video, and smart playback to improve the playback efficiency

Professional and Reliability
- H.265+ compression effectively reduces the storage space by up to 75%
- Adopt stream over TLS encryption technology which provides more secure stream transmission service

HD Video Output
- Provide simultaneous HDMI and VGA outputs
- HDMI video output at up to 4K resolution

Storage and Playback
- Up to 2 SATA interface for HDD connection (up to 10 TB)
- 4-ch synchronous playback

Network & Ethernet Access
- 8 independent PoE network interfaces
- 1 self-adaptive 10/100/1000 Mbps Ethernet interface
- Hik-Connect for easy network managemen

Performance

Video input channels: 8 channels
Alarm input channels: 4
Alarm output channels: 1
Number of simultaneously playbacked channels: 8 channels
Maximum resolution: 3840 x 2160 pixels
Supported resolutions: 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Audio formats supported: G.711 A-law, G.711 μ-law, G.722, AAC, G.726
Video formats supported: H.264, H.264+, H.265, H.265+
Maximum frame rate: 30 fps
Input bandwidth: 80 Mbit/s
Output bandwidth: 160 Mbit/s
Feature: Face detection

Hard drive

HDD capacity: 10 TB
Number of HDDs supported: 2
Maximum storage capacity: 20 TB
HDD interface: SATA

Ports & interfaces

Ethernet LAN (RJ-45) ports: 9
Feature: Power over Ethernet (PoE)
Ethernet LAN data rates: 10,1000,100 Mbit/s
Power over Ethernet (PoE) ports quantity: 8
Feature: HDMI output
HDMI ports quantity: 1
VGA (D-Sub) output ports: 1
USB 2.0 ports quantity: 2
Audio RCA inputs: 1
Audio RCA outputs: 1
Internal SATA ports quantity: 2
Networking standards: IEEE 802.3af, IEEE 802.3at
Supported network protocols: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS

Features

Feature: Rack mounting
Rack capacity: 1U
Product colour: Black

Power

Power consumption (typical): 15 W
Output current: 2.5 A
Output voltage: 48 V
Total Power over Ethernet (PoE) budget: 80 W

Operational conditions

Operating temperature (T-T): -10 - 55 °C
Operating relative humidity (H-H): 10 - 90%

Technical details

Compliance certificates: Federal Communications Commission (FCC), CE

Weight & dimensions

Width: 385 mm
Depth: 315 mm
Height: 52 mm
Weight: 3 kg
