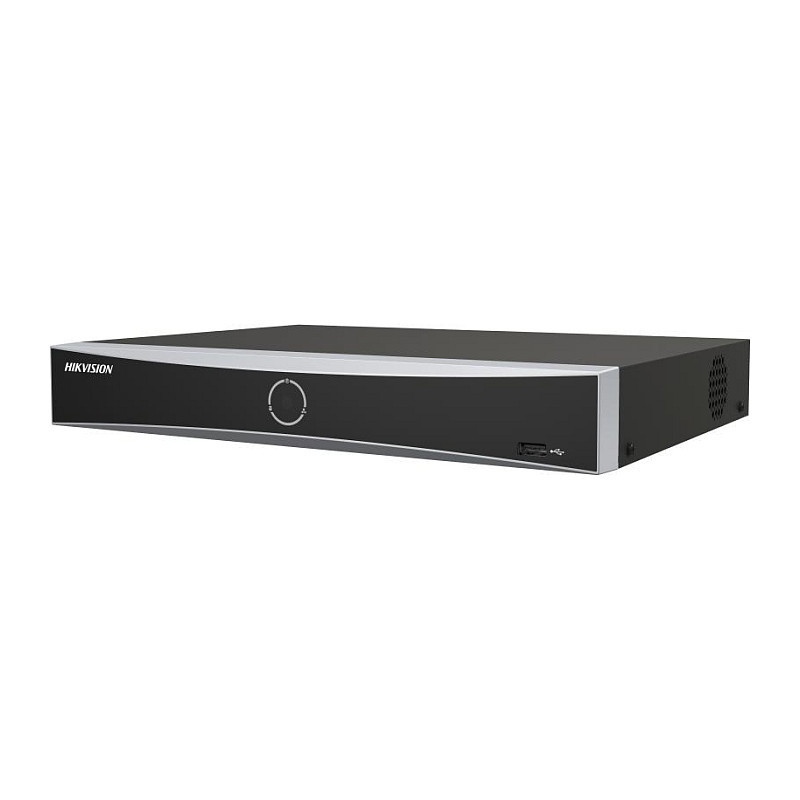

„Hikvision DS-7608NXI-K1(D)“ tinklo vaizdo įrašymo įrenginys

Hikvision DS-7608NXI-K1(D). Video input channels: 8 channels, Maximum resolution: 3840 x 2160 pixels, Supported resolutions: 3840 × 2160, 2560 × 1440, 1920 × 1080, 1600 × 1200, 1280 × 1024, 1280 × 720, 1024 × 768. Maximum storage capacity: 10 TB, HDD interface: SATA, SATA II, SATA III. Ethernet LAN data rates: 10,100,1000 Mbit/s, Supported network protocols: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP,.... Rack capacity: 1U, Product colour: Black, Certification: FCC, CE. Power consumption (typical): 10 W, Output current: 1.5 A, Output voltage: 12 V

Smart Function
- All channels support Motion Detection 2.0
- 1-ch video analysis for human and vehicle recognition to reduce false alarm
- 1-ch facial recognition for video stream, or 4-ch facial recognition for face picture
- Smart search for the selected area in the video, and smart playback to improve the playback efficiency

Professional and Reliability
- H.265+ compression effectively reduces the storage space by up to 75%
- Adopt stream over TLS encryption technology which provides more secure stream transmission service

HD Video Output
- Provide independent HDMI and VGA outputs
- HDMI video output at up to 4K resolution

Storage and Playback
- Up to 1 SATA interface for HDD connection (up to 10 TB)
- 8-ch synchronous playback

Network & Ethernet Access
- 1 self-adaptive 10/100/1000 Mbps Ethernet interface
- Hik-Connect for easy network management

Performance

Video input channels: 8 channels
Maximum resolution: 3840 x 2160 pixels
Supported resolutions: 3840 × 2160, 2560 × 1440, 1920 × 1080, 1600 × 1200, 1280 × 1024, 1280 × 720, 1024 × 768
Feature: Video motion detection
Languages support: Multi
Video codecs: H.265/H.265+/H.264+/H.264
Audio codecs: G.711ulaw/G.711alaw/G.722/G.726/AAC
Input bandwidth: 80 Mbit/s
Output bandwidth: 80 Mbit/s
Feature: Face detection

Hard drive

HDD capacity: 0 GB
Number of HDDs supported: 1
Maximum storage capacity: 10 TB
HDD interface: SATA, SATA II, SATA III

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: HDMI output
HDMI ports quantity: 1
VGA (D-Sub) output ports: 1
USB 2.0 ports quantity: 2
Audio RCA inputs: 1
Audio RCA outputs: 1
Feature: DC-in jack
Supported network protocols: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS

Features

Feature: Rack mounting
Rack capacity: 1U
Feature: On/off switch
Product colour: Black
Certification: FCC, CE

Power

Power consumption (typical): 10 W
Output current: 1.5 A
Output voltage: 12 V

System requirements

Browser supported: IE11, Chrome V57, Firefox V52, Safari V12, Edge V89

Operational conditions

Operating temperature (T-T): -10 - 55 °C
Operating relative humidity (H-H): 10 - 90%

Technical details

Feature: Sustainability compliance
Compliance certificates: CB, CE, Federal Communications Commission (FCC), KC, REACH, RoHS, UKCA, WEEE

Weight & dimensions

Width: 320 mm
Depth: 240 mm
Height: 48 mm
Weight: 1 kg
