Hikvision DS-7608NXI-I2 / VPRO tinklas video įrašymo įrenginys

Hikvision DS-7608NXI-I2/VPRO. Video input channels: 8 channels, Maximum resolution: 3840 x 2160 pixels, Number of simultaneously playbacked channels: 8 channels. Maximum storage capacity: 20 TB, HDD interface: SATA, SATA II, SATA III. Ethernet LAN data rates: 10,100,1000 Mbit/s, Supported network protocols: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP,.... Rack capacity: 1U, Product colour: Black, Certification: CE, CB, REACH, WEEE, UKCA, RCM,IC,LOA,KC. Power consumption (typical): 50 W, AC input voltage: 100 - 240 V, Output voltage: 12 V

Performance

Video input channels: 8 channels
Alarm input channels: 4
Alarm output channels: 1
Number of simultaneously playbacked channels: 8 channels
Maximum resolution: 3840 x 2160 pixels
Feature: People counting
Feature: Video motion detection
Audio formats supported: G.711 A-law, G.711 μ-law, G.722, MP2L2, G.726
Video formats supported: H.264, H.264+, H.265, H.265+
Languages support: Multi
Input bandwidth: 96 Mbit/s
Output bandwidth: 256 Mbit/s
Feature: Face detection

Hard drive

HDD capacity: 0 GB
Number of HDDs supported: 2
Maximum storage capacity: 20 TB
HDD interface: SATA, SATA II, SATA III

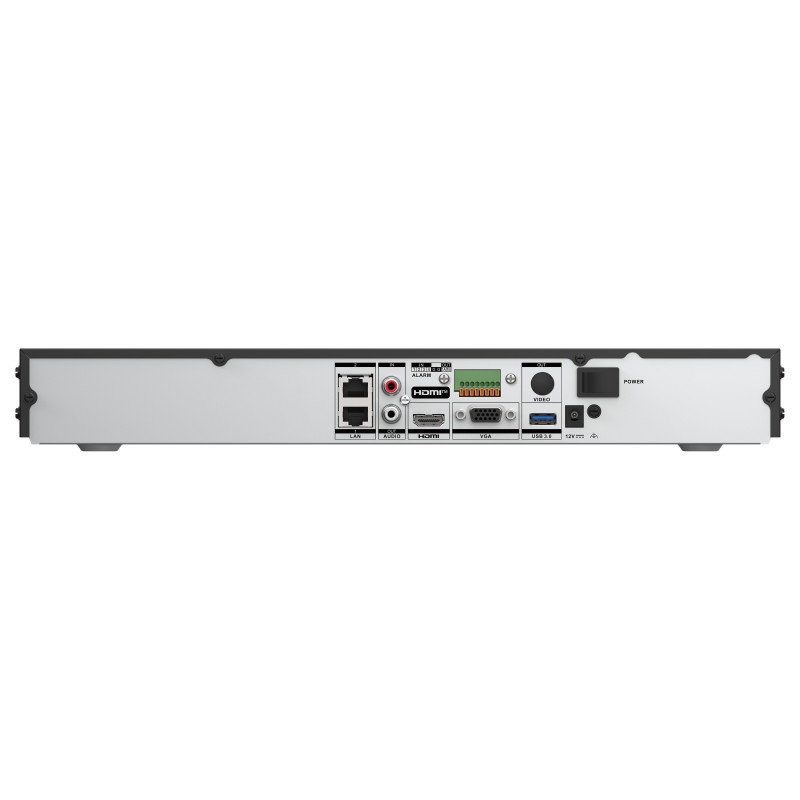

Ports & interfaces

Ethernet LAN (RJ-45) ports: 2
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: HDMI output
HDMI ports quantity: 1
VGA (D-Sub) output ports: 1
USB 2.0 ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
Audio RCA inputs: 1
Audio RCA outputs: 1
Feature: DC-in jack
Supported network protocols: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP

Features

Feature: Rack mounting
Rack capacity: 1U
Feature: On/off switch
Product colour: Black
Certification: CE, CB, REACH, WEEE, UKCA, RCM,IC,LOA,KC

Power

Power consumption (typical): 50 W
AC input voltage: 100 - 240 V
Output voltage: 12 V

System requirements

Browser supported: IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version

Operational conditions

Operating temperature (T-T): -10 - 55 °C
Operating relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 384 mm
Depth: 371 mm
Height: 52 mm
Weight: 4 kg
