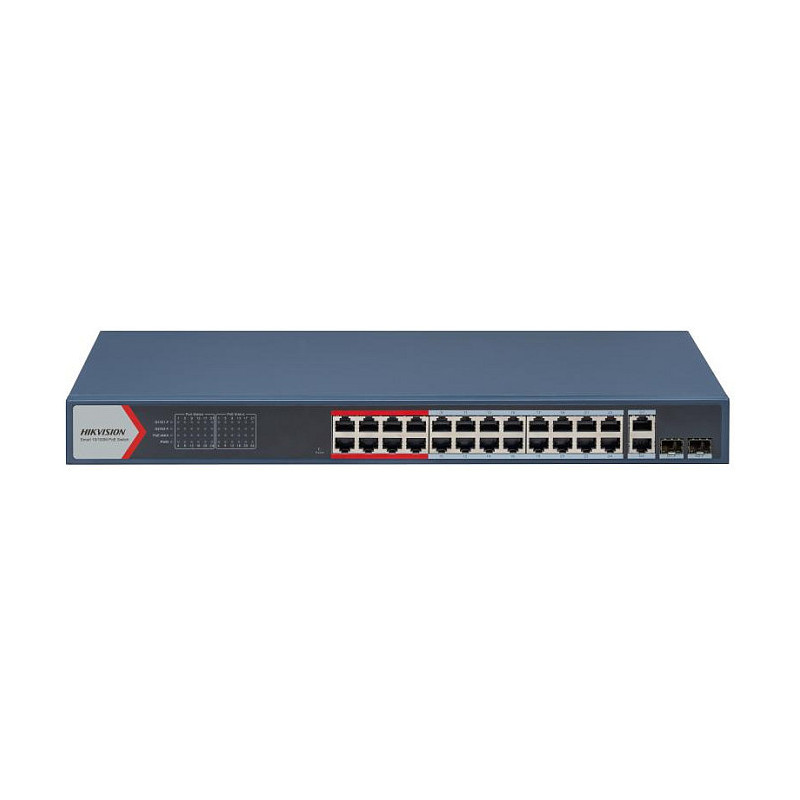

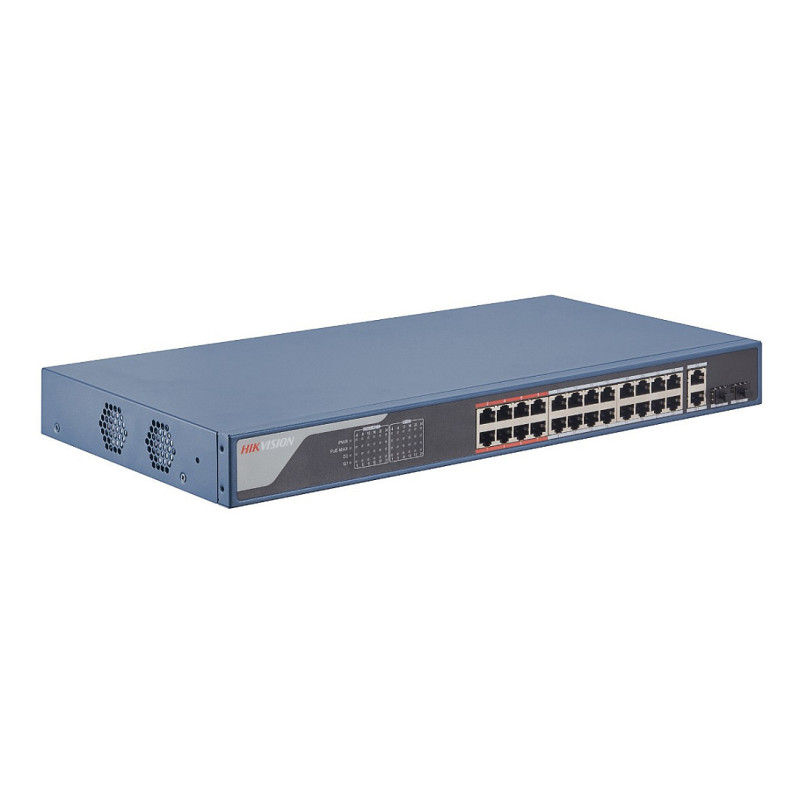

Hikvision DS-3E1326P-EI(B ) tinklo jungiklis

Hikvision DS-3E1326P-EI(B). Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 16000 entries, Switching capacity: 14.8 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Management features

Switch type: Managed
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: System event log

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
Combo SFP ports quantity: 2

Network

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Feature: Full duplex
Feature: Link aggregation
Feature: Auto MDI/MDI-X
Feature: VLAN support
Number of VLANs: 4094

Data transmission

Switching capacity: 14.8 Gbit/s
Forwarding rate: 11.01 Mpps
MAC address table: 16000 entries
Feature: Store-and-forward
Packet buffer memory: 4 MB

Security

DHCP features: DHCP client
Feature: Loop protection

Design

Feature: Rack mounting
Form factor: 1U
Product colour: Blue
Housing material: Metal

Power

Power source: AC
AC input voltage: 100 - 240 V
Input current: 6.5 A
Power consumption (max): 400 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) ports quantity: 24
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 370 W

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 440 mm
Depth: 221 mm
Height: 44 mm
Weight: 2.83 kg
