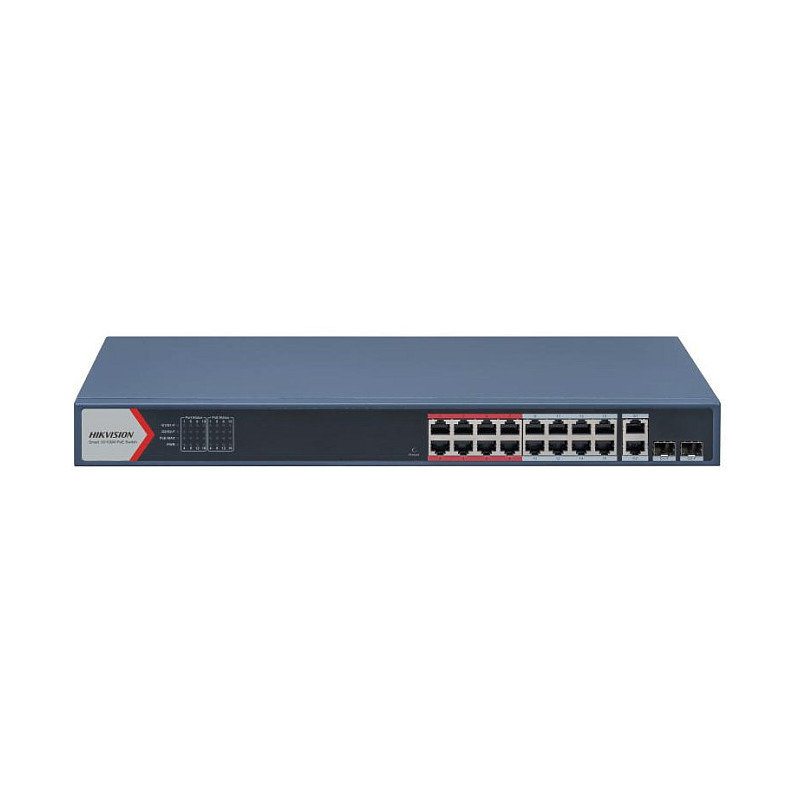

Hikvision DS-3E1318P-EI(B) tinklo jungiklis

Hikvision DS-3E1318P-EI(B). Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 16000 entries, Switching capacity: 7.2 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. Power over Ethernet (PoE)

Smart Managed Series
This series can recognize IP devices and generate system topology

Management features

Switch type: Managed

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 16
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
Combo SFP ports quantity: 2

Network

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Feature: Full duplex
Feature: Flow control support
Feature: Auto MDI/MDI-X
Feature: VLAN support
Number of VLANs: 4094

Data transmission

Switching capacity: 7.2 Gbit/s
Forwarding rate: 5.3568 Mpps
MAC address table: 16000 entries
Feature: Store-and-forward

Design

Product colour: Blue
Housing material: Metal

Performance

Feature: Fanless

Power

Power source: AC
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Input current: 4 A
Power consumption (max): 250 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) ports quantity: 16
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 230 W

Operational conditions

Operating temperature (T-T): -10 - 55 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 5 - 95%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 440 mm
Depth: 220.8 mm
Height: 44 mm
Weight: 2.59 kg

Packaging data

Package weight: 3.68 kg
