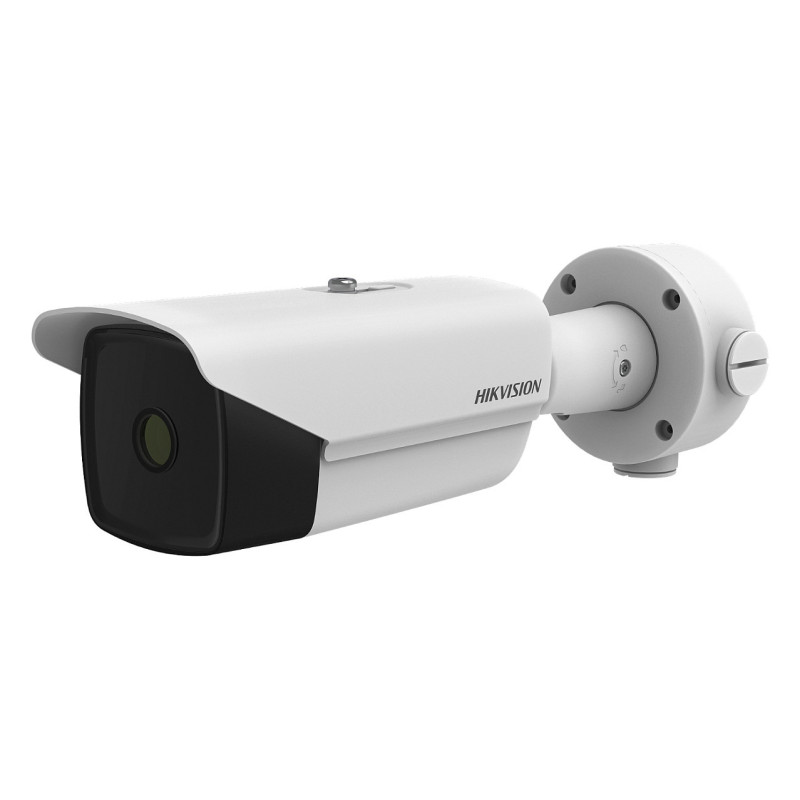

„Hikvision DS-2TD2138-7 / QY“ apsaugos kamera

Hikvision DS-2TD2138-7/QY. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: White, Form factor: Bullet. Field of view (FOV) angle (thermal module): 42 x 32°, Camera pixel size: 12 µm. Sensor type: CMOS, Sensor type (thermal module): Vanadium Oxide Uncooled Focal Plane Arrays, Effective sensor resolution (thermal module): 384 x 288 pixels. Digital zoom: 8x, Detect distance: 831 m, Recognize distance: 208 m

Hikvision DS-2TD2138-7/QY Anti-Corrosion Thermal Network Bullet Camera is applied to perimeter defense and fire-prevention purposes in critical infrastructures such as airport, railway, prison, power station, 4S stores, and so on. With the vanadium oxide uncooled focal plane sensor, it enhances the thermal image quality. It adopts anti-corrosion coating to meet the requirements of used in anti corrosion environmen

Performance

Type: IP security camera
Placement supported: Outdoor
Connectivity technology: Wired
Number of languages: 32
Languages support: Multi
Thermal sensitivity (NETD): 35 mK
IFOV (spatial resolution): 1.85 mRad

Design

Form factor: Bullet
Mounting type: Wall
Product colour: White
Protection features: Corrosion resistant
International Protection (IP) code: IP67
Feature: Weatherproof

Camera

Field of view (FOV) angle (thermal module): 42 x 32°
Camera pixel size: 12 µm

Image sensor

Sensor type (thermal module): Vanadium Oxide Uncooled Focal Plane Arrays
Effective sensor resolution (thermal module): 384 x 288 pixels
Sensor type: CMOS

Lens system

Digital zoom: 8x
Number of lenses: 1
Detect distance: 831 m
Recognize distance: 208 m
Identify distance: 104 m
Fixed focal length (thermal module): 6.5 mm
Infrared spectral band: 8 - 14 µm
Aperture number (thermal module): 1.1

Video

Maximum resolution: 1280 x 720 pixels
Video compression formats: H.264, H.265, M-JPEG
Supported graphics resolutions: 704 x 576, 1280 x 720 (HD 720), 352 x 288, 640 x 512

Audio

Audio formats supported: G.711 A-law, G.711 μ-law, G.722.1, G.726, MP2L2, PCM

Network

Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet
Supported network protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, SRTP, SFTP
Feature: Bluetooth
Number of users: 32 user(s)
User access level: Administrator, Operator, User
Feature: Quality of Service (QoS) support
Client interoperability: iVMS-4200, Hik-Connect
Feature: Live view
Number of simultaneous live view channels: 20 channels

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size: 256 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
RS-485 ports: 1
Feature: Microphone in
Headphone outputs: 1

Security

Alarm input channels: 2
Alarm output channels: 2
Temperature measurement range: -20 - 150 °C
Temperature measurement accuracy: 8 °C
Feature: Password protection
Password protection type: User
Feature: IP address filtering
Security algorithms: EAP-MD5, EAP-TLS
Feature: HTTPS encryption
Feature: Automatic Network Replenishment (ANR)

Management features

Feature: Web-based management
Behavior analysis: Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection

Power

Power source type: DC, PoE
AC input voltage: 24 V
Power consumption (max): 5 W
Power consumption (Power over Ethernet (PoE)): 5.5 W
DC output voltage: 12
DC output current: 0.61 A

Operational conditions

Operating temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 0 - 90%

Weight & dimensions

Width: 113.5 mm
Height: 115.2 mm
Length: 351.3 mm
Weight: 1.77 kg

Packaging content

Number of cameras: 1
