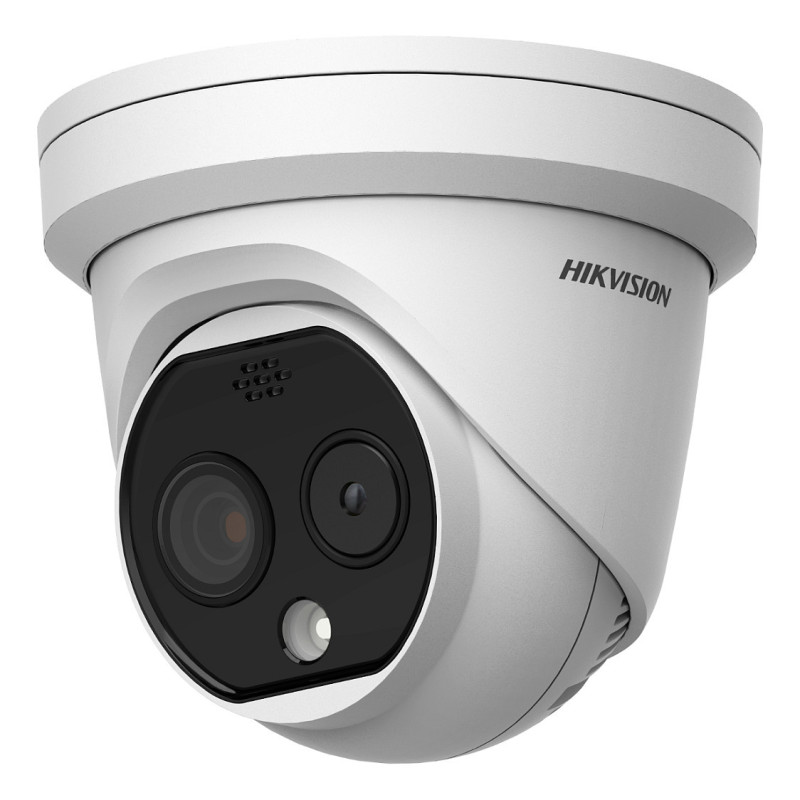

„Hikvision DS-2TD1217B-6“ / PA apsaugos kamera

Hikvision DS-2TD1217B-6/PA. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Minimum illumination: 0.0089 lx, Field of view (FOV) angle: 39.42°, Field of view (FOV) angle (thermal module): 25 x 18.7°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"), Sensor type (thermal module): Vanadium Oxide Uncooled Focal Plane Arrays. Fixed focal length: 8 mm, Closest focusing distance: 0.6 m, Fixed focal length (thermal module): 6.2 mm

Hikvision DS-2TD1217B Temperature Screening Thermographic Turret camera is designed to detect elevated skin-surface temperature with high accuracy in real time. It can be used for preliminary temperature screening in office buildings, factories, stations, airports and other public places.

Performance

Type: IP security camera
Placement supported: Indoor & outdoor
Connectivity technology: Wired
Feature: Thermal module
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode
Feature: Infrared (IR) cut-off filter
Feature: Alarm input/output
Number of languages: 32
Thermal sensitivity (NETD): 40 mK
IFOV (spatial resolution): 2.74 mRad

Design

Form factor: Dome
Mounting type: Ceiling
Product colour: White
International Protection (IP) code: IP66

Camera

Minimum illumination: 0.0089 lx
Field of view (FOV) angle: 39.42°
Field of view (FOV) angle (thermal module): 25 x 18.7°
White balance: ATW, Auto, Daylight, Indoor, Manual, Outdoor, Sodium lamp
Camera shutter speed: 1 - 1/100000 s

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
Sensor type (thermal module): Vanadium Oxide Uncooled Focal Plane Arrays
Effective sensor resolution (thermal module): 160 x 120 pixels
Feature: Progressive scan
Sensor type: CMOS
Number of effective pixels (H x V): 2688 x 1520 pixels

Lens system

Number of lenses: 1
Fixed focal length: 8 mm
Closest focusing distance: 0.6 m
Fixed focal length (thermal module): 6.2 mm
Infrared spectral band: 8 - 14 µm
Aperture number (thermal module): 1.1

Night vision

Feature: Night vision
Night vision distance: 15 m

Video

Maximum resolution: 2688 x 1520 pixels
Total megapixels: 4 MP
Video compression formats: H.264, H.265, M-JPEG
Supported graphics resolutions: 176 x 120, 176 x 144, 320 x 240, 352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2688 x 1520
Supported video modes: 240p, 480p, 576p, 720p, 1080p, 1520p
Frame rate: 25 fps

Audio

Audio codecs: G .711u, G.711a, G.722.1, MP2L2, G.726, PCM

Network

Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet
Networking standards: IEEE 802.1x, IEEE 802.3af
Number of users: 32 user(s)
Feature: Quality of Service (QoS) support

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size: 256 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
RS-485 ports: 1
Feature: Microphone in
Headphone outputs: 1

Security

Feature: Password protection
Password protection type: Supervisor, User
Feature: IP address filtering
Security algorithms: EAP-LEAP, EAP-MD5, EAP-TLS, HTTPS
Feature: HTTPS encryption

Management features

Feature: Web-based management
Feature: Web browser

Power

Power source type: DC, PoE
Power consumption (max): 6.5 W
DC output voltage: 12

Operational conditions

Operating temperature (T-T): 10 - 35 °C
Operating relative humidity (H-H): 0 - 95%

Weight & dimensions

Width: 138.3 mm
Depth: 138.3 mm
Height: 123.1 mm
Weight: 940 g

Packaging content

Number of cameras: 1
