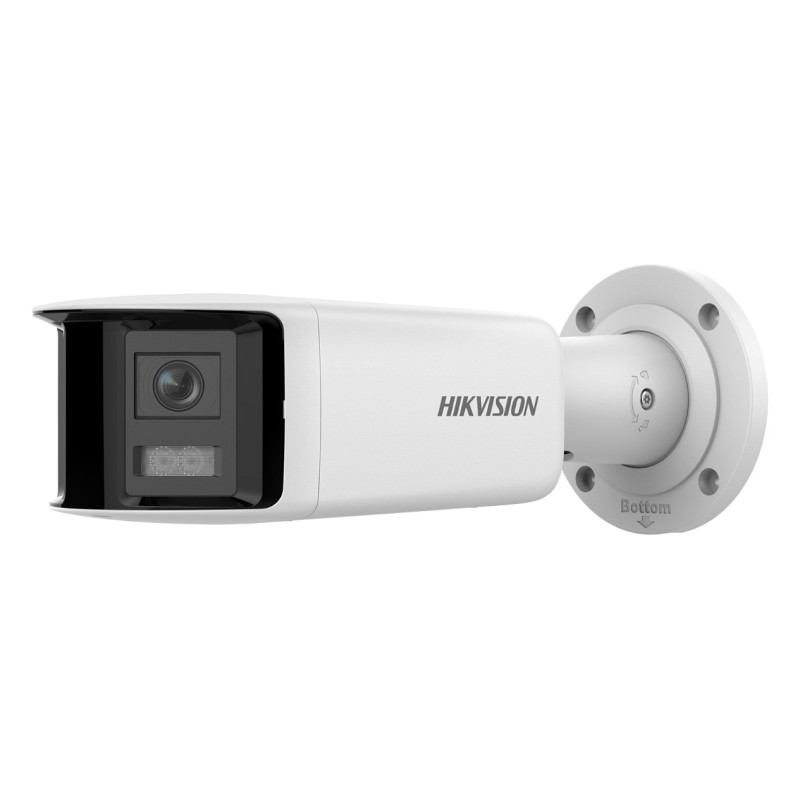

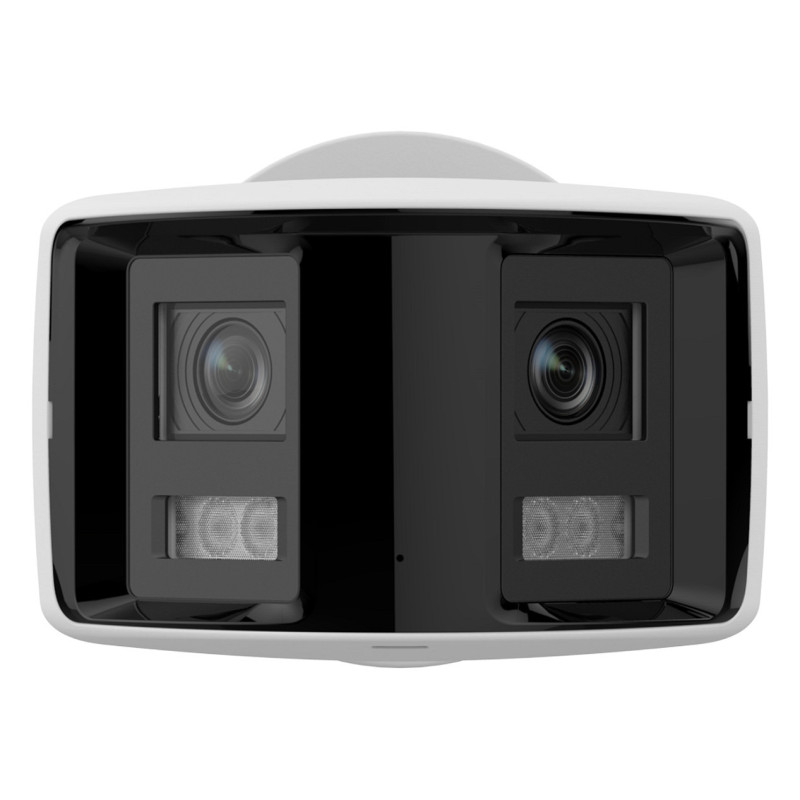

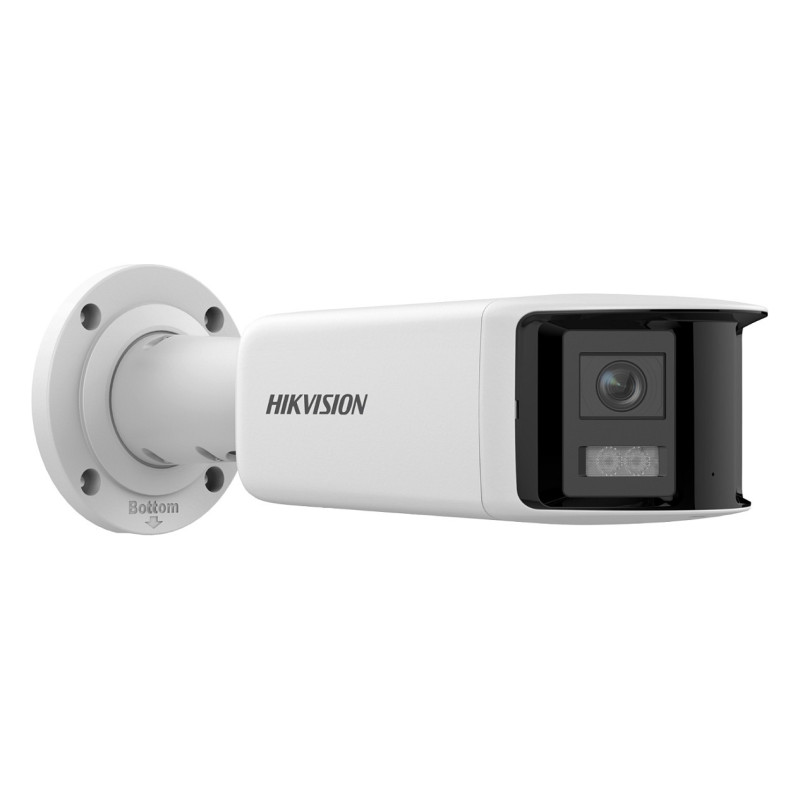

Hikvision DS-2CD2T46G2P-ISU / SL(2.8mm)(C)

Hikvision DS-2CD2T46G2P-ISU/SL(2.8mm)(C). Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: White, Form factor: Bullet. Angle of rotation: 360°, Lens viewing angle, horizontal: 180°, Lens viewing angle, vertical: 81°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.5 mm (1 / 2.5"). Detect distance: 37 m, Observe distance: 15 m, Recognize distance: 7 m

Empowered by deep learning algorithms, Hikvision AcuSense technology brings human and vehicle targets classification alarms to front- and back-end devices. The system focuses on human and vehicle targets, vastly improving alarm efficiency and effectiveness.

Performance

Type: IP security camera
Placement supported: Outdoor
Connectivity technology: Wired
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode
Feature: Alarm input/output
Feature: Built-in light
Number of languages: 33
Languages support: Multi
Dynamic range: 120 dB

Design

Form factor: Bullet
Mounting type: Wall
Product colour: White
Protection features: Waterproof
International Protection (IP) code: IP67
Feature: Weatherproof

Camera

Minimum illumination: 0 lx
Angle of rotation: 360°
Lens viewing angle, horizontal: 180°
Lens viewing angle, vertical: 81°
Tilt angle range: 0 - 90°
Pan range: 0 - 355°
Camera shutter speed: 1/3 - 1/100000 s

Image sensor

Number of sensors: 2
Optical sensor size: 25.4 / 2.5 mm (1 / 2.5")
Feature: Progressive scan
Sensor type: CMOS

Lens system

Number of lenses: 1
Detect distance: 37 m
Observe distance: 15 m
Recognize distance: 7 m
Feature: Fixed focus
Maximum aperture number: 1.6
Identify distance: 3.5 m
Fixed focal length: 2.8 mm

Night vision

Feature: Night vision
Night vision distance: 40 m
LED type: IR
Infra-red wavelength: 850 nm

Video

Maximum resolution: 3040 x 1368 pixels
Total megapixels: 4 MP
Video compression formats: H.264, H.264+, H.265, H.265+
Supported graphics resolutions: 1200 x 536, 3040 x 1368
Frame rate: 25 fps
Feature: Video streaming
Feature: Noise reduction
Noise reduction technology: 3D noise reduction
Image quality adjustment: Brightness, Contrast, Saturation, Sharpness
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate: 32 Kbps - 8 Mbps
Feature: Back Light Compensation (BLC)
Feature: Highlight Compensation (HLC)
Feature: Region of Interest (ROI) encoding

Audio

Feature: Built-in speaker(s)
Audio input channels: 1.0 channels
Audio output channels: 1.0 channels
Audio formats supported: AAC-LC, G.711, G.722.1, G.726, MP2L2, MP3, PCM
Signal-to-Noise Ratio (SNR): 52 dB
Feature: Built-in microphone
Bit rate range: 8 - 320 Kbit/s
Sample rates: 8 - 48 kHz

Network

Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet
Number of users: 32 user(s)
User access level: Administrator, Operator, User
Feature: Quality of Service (QoS) support
Client interoperability: iVMS-4200, Hik-Connect, Hik-Central
Feature: Live view
Number of simultaneous live view channels: 6 channels

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size: 256 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1

Security

Alarm input channels: 1
Alarm output channels: 1
Feature: Password protection
Feature: Video motion detection
Feature: IP address filtering
Security algorithms: EAP-MD5
Feature: HTTPS encryption
Feature: Heartbeat
Feature: Mirror
Feature: Digital watermark
Feature: Pixel counter
Feature: Flash log
Feature: Automatic Network Replenishment (ANR)

Management features

Feature: Web-based management
Feature: Reset button
Behavior analysis: Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection

Power

Power source type: DC, PoE
Power consumption (max): 10.5 W
Power consumption (Power over Ethernet (PoE)): 12.5 W
DC output voltage: 12
DC output current: 0.88 A

Operational conditions

Operating temperature (T-T): -30 - 60 °C
Storage temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%

Weight & dimensions

Width: 118.6 mm
Depth: 306.5 mm
Height: 78 mm
Weight: 1.4 kg

Packaging data

Package width: 405 mm
Package depth: 190 mm
Package height: 180 mm
Package weight: 2.1 kg

Packaging content

Number of cameras: 1

Technical details

Lens mount interface: M12

Other features

I/O ports: 1x line in, 1x line out
