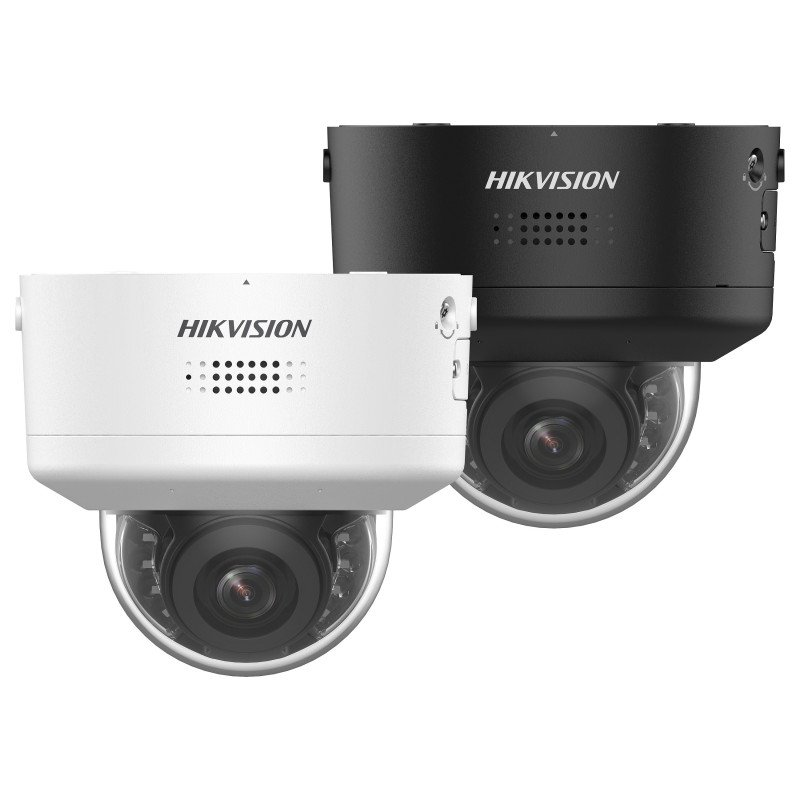

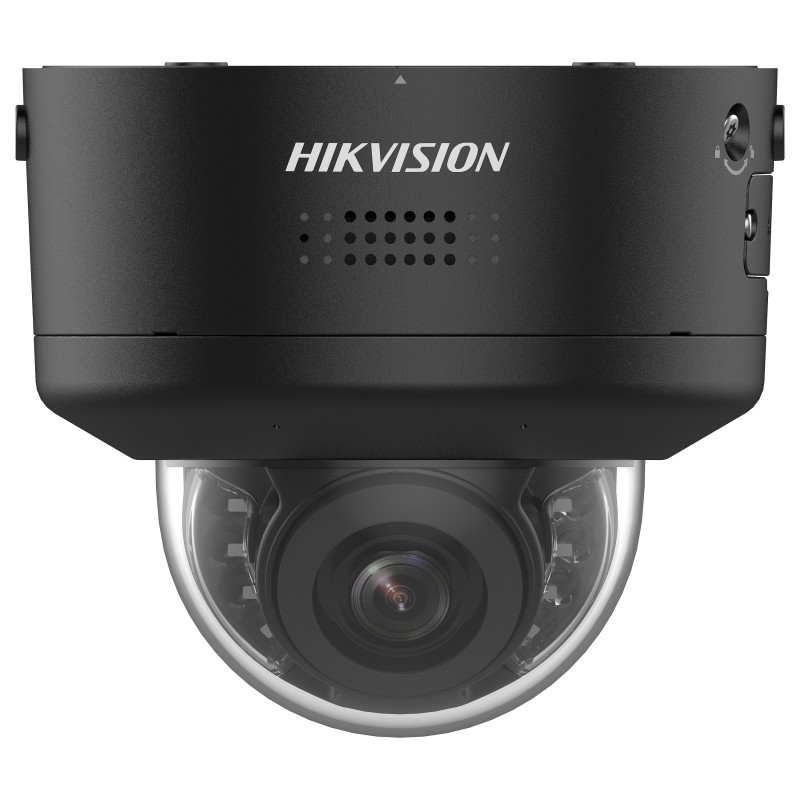

Hikvision DS-2CD2787G2H-LIPTRZS2U / SL

Hikvision DS-2CD2787G2H-LIPTRZS2U/SL. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, Form factor: Dome. Angle of rotation: 350°, Lens viewing angle, horizontal: 112.3 - 41.2°, Lens viewing angle, vertical: 58.1 - 23.1°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Focal length range: 2.8 - 12 mm, Detect distance (wide): 89 m, Detect distance (tele): 220 m

Performance

Type: IP security camera
Placement supported: Indoor & outdoor
Connectivity technology: Wired
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode
Feature: Infrared (IR) cut-off filter
Feature: Alarm input/output
Number of languages: 33
Languages support: Multi
Dynamic range: 120 dB

Design

Form factor: Dome
Mounting type: Ceiling/wall
Product colour: Black
Housing material: Metal
Protection features: Dust resistant, Water resistant
International Protection (IP) code: IP66
IK code: IK10

Camera

Angle of rotation: 350°
Lens viewing angle, horizontal: 112.3 - 41.2°
Lens viewing angle, vertical: 58.1 - 23.1°
Lens viewing angle, diagonal: 137.4 - 47.3°
Tilt angle range: 0 - 85°
Pan range: 0 - 355°
Camera shutter speed: 1/3 - 1/100000 s
Number of Privacy masking areas: 4

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 1.8 mm (1 / 1.8")
Feature: Progressive scan
Sensor type: CMOS

Lens system

Number of lenses: 1
Focal length range: 2.8 - 12 mm
Maximum aperture number: 1.2
Detect distance (wide): 89 m
Detect distance (tele): 220 m
Observe distance (wide): 35 m
Observe distance (tele): 87 m
Recognize distance (wide): 18 m
Recognize distance (tele): 44 m
Identify distance (wide): 9 m
Identify distance (tele): 22 m

Night vision

Feature: Night vision
Night vision distance: 40 m
LED type: IR/White
Infra-red wavelength: 850 nm

Video

Maximum resolution: 3840 x 2160 pixels
Total megapixels: 8 MP
Video compression formats: H.264, H.264+, H.265, H.265+, M-JPEG
Supported graphics resolutions: 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2688 x 1520, 3840 x 2160
Frame rate: 30 fps
Feature: Video streaming
Gain control type: Auto
Image quality adjustment: Brightness, Contrast, Saturation, Sharpness
Feature: Privacy masking
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate: 32 Kbps - 16 Mbps
Feature: Back Light Compensation (BLC)
Feature: Highlight Compensation (HLC)
Feature: Region of Interest (ROI) encoding

Audio

Feature: Built-in speaker(s)
Audio input channels: 1.0 channels
Audio output channels: 1.0 channels
Audio codecs: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Signal-to-Noise Ratio (SNR): 52 dB
Feature: Built-in microphone
Bit rate range: 16 - 320 Kbit/s
Sample rates: 8 - 48 kHz

Network

Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet
Networking standards: IEEE 802.1x
Number of users: 32 user(s)
User access level: Administrator, Operator, User
Feature: Live view
Number of simultaneous live view channels: 6 channels

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1

Security

Alarm input channels: 1
Alarm output channels: 1
Feature: Password protection
Feature: Video motion detection
Feature: IP address filtering
Security algorithms: EAP-LEAP, EAP-MD5, EAP-TLS, TLS
Feature: HTTPS encryption
Alert notification type: E-mail
Intelligent Video Surveillance (IVS) system features: Face detection, Scene change
Feature: Heartbeat
Feature: Digital watermark
Feature: Password reset via email
Feature: Pixel counter
Feature: Flash log
Feature: Audit log
Feature: Automatic Network Replenishment (ANR)
Feature: Digest authentication

Management features

Feature: Web browser
Feature: Reset button
Behavior analysis: Line crossing detection, Region entrance detection, Region exiting detection

Power

Power source type: DC, PoE
Power consumption (max): 16 W
Power consumption (Power over Ethernet (PoE)): 18 W
DC output voltage: 12
DC output current: 1.35 A

Operational conditions

Operating temperature (T-T): -30 - 60 °C
Storage temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%

Weight & dimensions

Height: 140.4 mm
Diameter: 15.5 cm
Weight: 820 g

Packaging data

Package width: 206 mm
Package depth: 206 mm
Package height: 230 mm
Package weight: 1.2 kg

Packaging content

Number of cameras: 1
