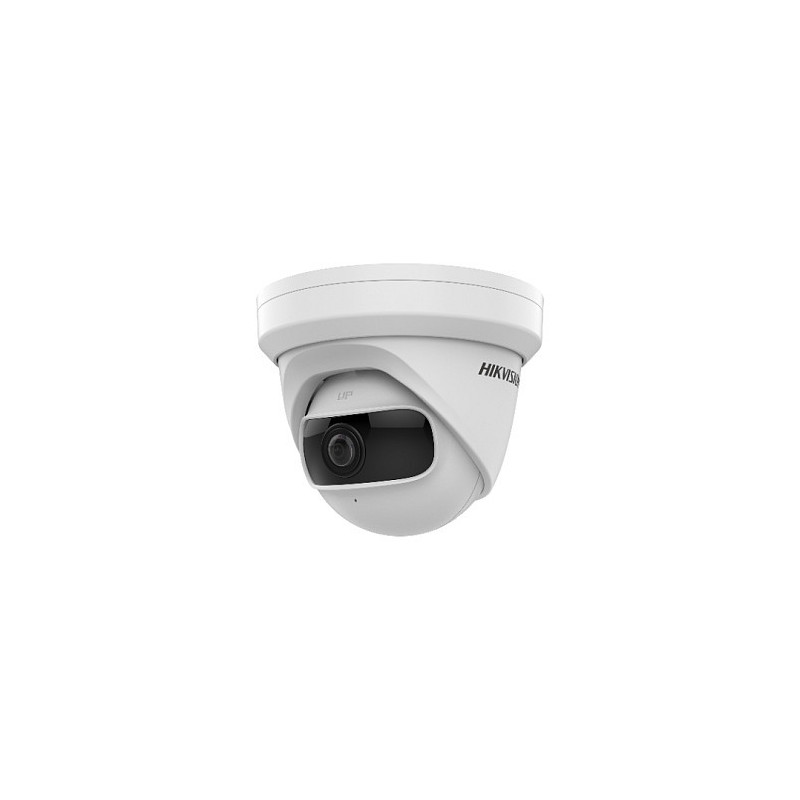

Hikvision DS-2CD2345G0P-I

Hikvision DS-2CD2345G0P-I. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Angle of rotation: 360°, Lens viewing angle, horizontal: 180°, Lens viewing angle, vertical: 101°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Fixed focal length: 1.68 mm

Performance

Type: IP security camera
Placement supported: Indoor
Connectivity technology: Wired
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode
Feature: Infrared (IR) cut-off filter
Number of languages: 32

Design

Form factor: Dome
Mounting type: Ceiling/wall
Product colour: White
Housing material: Metal, Plastic

Camera

Feature: Camera pan control
Feature: Camera tilt control
Minimum illumination: 0 lx
Angle of rotation: 360°
Lens viewing angle, horizontal: 180°
Lens viewing angle, vertical: 101°
Lens viewing angle, diagonal: 180°
Tilt angle range: 0 - 75°
Pan range: 0 - 360°
Camera shutter speed: 1/3 - 1/100000 s

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
Feature: Progressive scan
Sensor type: CMOS

Lens system

Number of lenses: 1
Maximum aperture number: 2
Fixed focal length: 1.68 mm

Night vision

Feature: Night vision
Night vision distance: 10 m
LED type: IR
Infra-red wavelength: 850 nm

Video

Maximum resolution: 2688 x 1520 pixels
Total megapixels: 4 MP
Video compression formats: H.264, H.264+, H.265, H.265+, M-JPEG
Supported graphics resolutions: 320 x 240, 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2304 x 1296, 2688 x 1520
Frame rate: 30 fps
Feature: Video streaming
Feature: Noise reduction
Noise reduction technology: 3D noise reduction
Gain control type: Auto
Image quality adjustment: Brightness, Contrast, Saturation, Sharpness
Feature: Privacy masking
Bit rate control: Constant Bit Rate (CBR), Variable Bit Rate (VBR)
Bit rate: 32 Kbps - 16 Mbps
Feature: Back Light Compensation (BLC)
Feature: Highlight Compensation (HLC)
Feature: Region of Interest (ROI) encoding

Network

Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet
Networking standards: IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Supported network protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
Number of users: 32 user(s)
Feature: Quality of Service (QoS) support

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size: 256 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1

Security

Feature: Password protection
Security algorithms: EAP-MD5, EAP-TLS, LEAP
Feature: HTTPS encryption
Intelligent Video Surveillance (IVS) system features: Face detection, Scene change
Feature: Heartbeat
Feature: Mirror

Management features

Feature: Web-based management
Feature: Reset button
Behavior analysis: Intrusion detection, Line crossing detection, Object removal detection, Unattended baggage detection

Power

Power source type: DC, PoE
Power consumption (max): 5.8 W
Power consumption (Power over Ethernet (PoE)): 6.8 W
DC output voltage: 12

Operational conditions

Operating temperature (T-T): -10 - 40 °C
Storage temperature (T-T): -10 - 40 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%

Weight & dimensions

Height: 104.1 mm
Diameter: 12.7 cm
Weight: 520 g

Packaging data

Package width: 150 mm
Package depth: 150 mm
Package height: 141 mm
Package weight: 700 g

Packaging content

Number of cameras: 1
