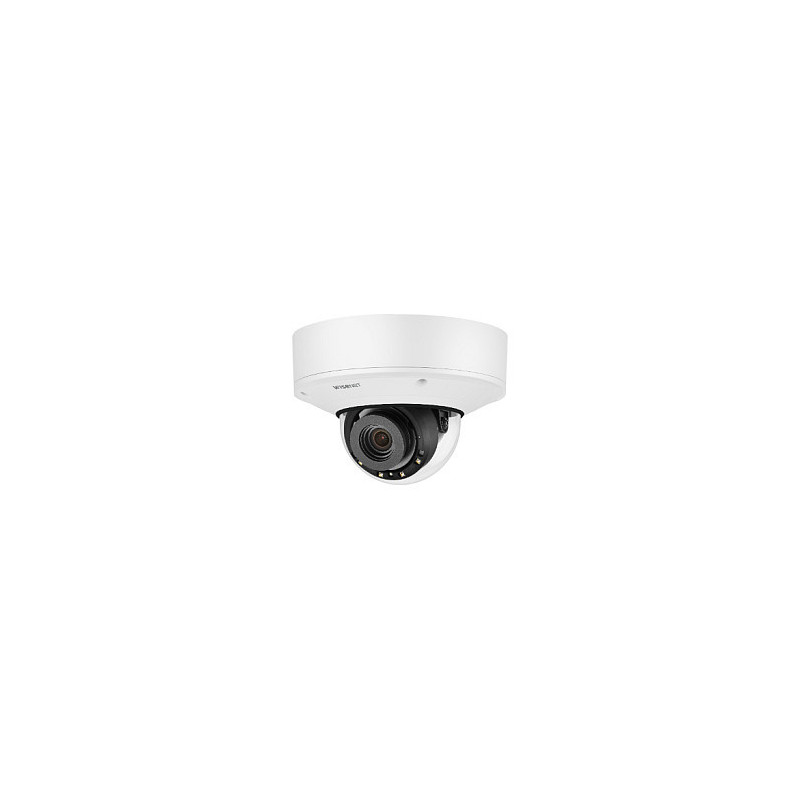

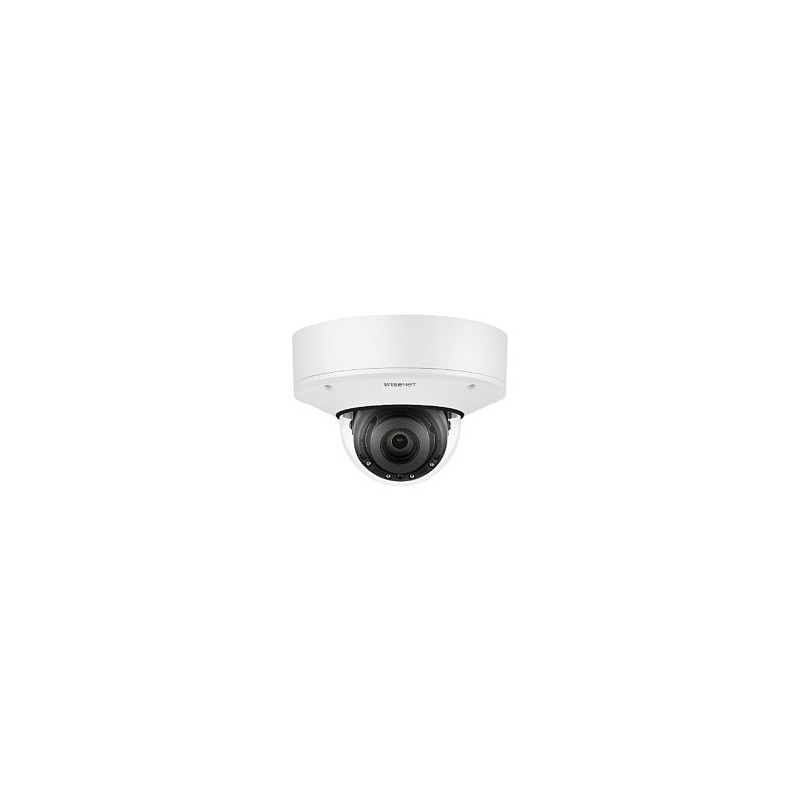

Hanwha XNV-9082R apsaugos kamera

Hanwha XNV-9082R. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Minimum illumination: 0.05 lx, Angle of rotation: 355°, Lens viewing angle, horizontal: 11°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 3x, Focal length range: 2.8 - 8.4 mm, Focus: Motorized

Performance

Type: IP security camera
Placement supported: Indoor & outdoor
Connectivity technology: Wired
PTZ control: Yes
Auto-tracking: Yes
Preset points: Yes
People counting function: Yes
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Alarm input/output: Yes
Remote viewing: Yes
Number of languages: 17
Languages support: Simplified Chinese, Czech, German, Dutch, English, Spanish, French, Greek, Hungarian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish

Design

Form factor: Dome
Mounting type: Ceiling
Product colour: White
Housing material: Aluminium
International Protection (IP) code: IP65, IP67, IP69K
IK code: IK10+

Camera

Camera pan control: Yes
Camera tilt control: Yes
Minimum illumination: 0.05 lx
Angle of rotation: 355°
Lens viewing angle, horizontal: 11°
Lens viewing angle, vertical: 62°
Lens viewing angle, diagonal: 133°
Tilt angle range: -45 - 85°
Pan range: 0 - 360°
Auto flip: Yes
White balance: ATW, AWC, Indoor, Manual, Outdoor

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Progressive scan: Yes
Sensor type: CMOS

Lens system

Zoom capability: Yes
Optical zoom: 3x
Focal length range: 2.8 - 8.4 mm
Focus: Motorized
Detect distance (wide): 49.9 m
Detect distance (tele): 209.9 m
Observe distance (wide): 19.9 m
Observe distance (tele): 83.9 m
Recognize distance (wide): 10 m
Recognize distance (tele): 42 m
Identify distance (wide): 5 m
Identify distance (tele): 21 m
Closest focusing distance: 0.7 m

Night vision

Night vision: Yes
Night vision distance: 40 m
LED type: IR

Video

Maximum resolution: 3840 x 2160 pixels
Video formats supported: H.264, H.265, M-JPEG
Video compression formats: H.264, H.265, M-JPEG
Supported graphics resolutions: 320 x 240, 640 x 360, 640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 448, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 960, 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2560 x 1440, 2560 x 1920, 2592 x 1944, 2688 x 1520, 3072 x 1728, 3840 x 2160
Frame rate: 30 fps
Video streaming: Yes
Noise reduction: Yes
Flip & mirror: Yes
Privacy masking: Yes
Image stabilizer: Yes
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Back Light Compensation (BLC): Yes
Highlight Compensation (HLC): Yes

Audio

Audio formats supported: AAC-LC, ADPCM, G.711, G.711 μ-law, G.726
Sample rate: 16 kHz
Audio detection: Yes

Network

Ethernet LAN: Yes
Networking standards: IEEE 802.3af
Supported network protocols: IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP
Number of users: 20 user(s)
Quality of Service (QoS) support: Yes
Streaming method: Multicast, Unicast

Storage

Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size: 512 GB
Flash memory: 512 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
Composite video out: 1
Microphone in: Yes
USB port: Yes

Security

Password protection: Yes
Password protection type: User
Video motion detection: Yes
Active tampering alarm: Yes
IP address filtering: Yes
Security algorithms: 802.1x RADIUS, EAP-LEAP, EAP-TLS, HTTPS, SSL/TLS
HTTPS encryption: Yes
Alert notification type: E-mail
Intelligent Video Surveillance (IVS) system features: Defocus, Face detection, People counting
Motion sensor: Yes
Anti-flicker: Yes

Power

Power source type: AC, DC, PoE
AC input voltage: 24 V
Power consumption (typical): 9 W
Power consumption (max): 13.5 W
Power consumption (Power over Ethernet (PoE)): 12.95 W
DC output voltage: 12

Operational conditions

Operating temperature (T-T): -40 - 55 °C
Storage temperature (T-T): -50 - 60 °C
Operating relative humidity (H-H): 0 - 90%
Storage relative humidity (H-H): 0 - 90%

Weight & dimensions

Height: 125 mm
Diameter: 18 cm
Length: 1900 mm

Packaging content

Number of cameras: 1
