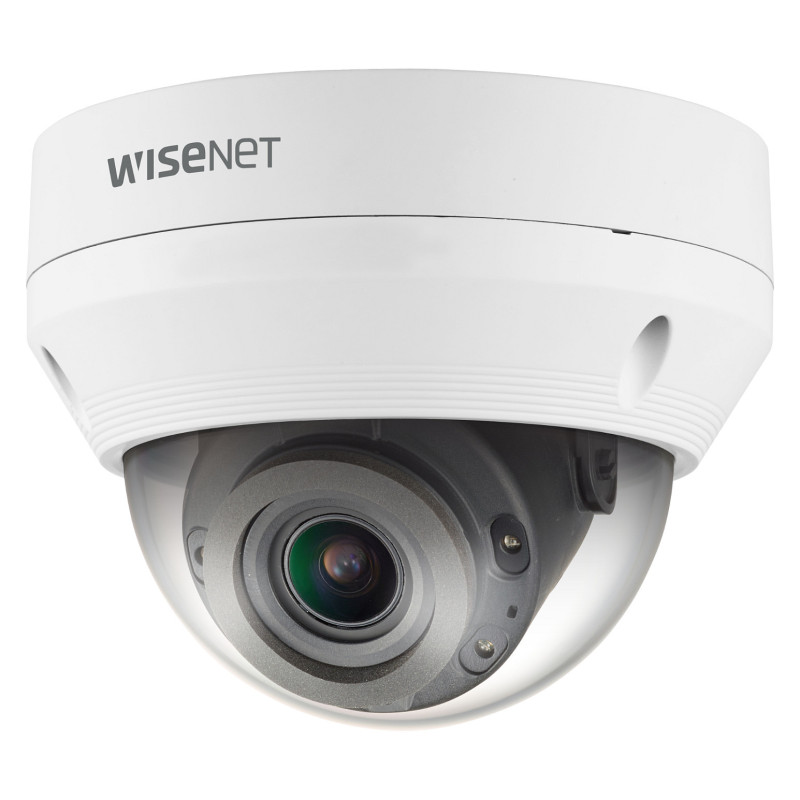

Hanwha QNV-6082R1 apsaugos kamera

Hanwha QNV-6082R1. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Minimum illumination: 0.03 lx, Angle of rotation: 355°, Tilt angle range: 0 - 67°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Focal length range: 3.2 - 10 mm, Identify distance: 12.9 m, Detect distance (wide): 27.4 m

Performance

Type: IP security camera
Placement supported: Indoor & outdoor
Connectivity technology: Wired
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode
Feature: Alarm input/output
Dynamic range: 120 dB

Design

Form factor: Dome
Mounting type: Ceiling
Product colour: White
International Protection (IP) code: IP66
IK code: IK10

Camera

Minimum illumination: 0.03 lx
Angle of rotation: 355°
Tilt angle range: 0 - 67°
Pan range: 0 - 350°
White balance: ATW, AWC, Indoor, Manual, Outdoor

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Sensor type: CMOS

Lens system

Number of lenses: 1
Focal length range: 3.2 - 10 mm
Feature: Auto focus
Maximum aperture number: 1.6
Identify distance: 12.9 m
Detect distance (wide): 27.4 m
Detect distance (tele): 128.8 m
Observe distance (wide): 11 m
Observe distance (tele): 51.5 m
Recognize distance (wide): 5.5 m
Recognize distance (tele): 25.8 m
Identify distance (wide): 2.7 m
Identify distance (tele): 12.9 m

Night vision

Feature: Night vision
LED type: IR

Video

Maximum resolution: 1920 x 1080 pixels
Total megapixels: 2 MP
Video compression formats: H.264, H.265, M-JPEG
Supported graphics resolutions: 640 x 360, 640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 448, 800 x 600 (SVGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Frame rate: 30 fps
Feature: Video streaming
Feature: Noise reduction
Noise reduction technology: Smart Super Noise Reduction (SSNR)
Gain control type: Auto
Feature: Flip & mirror
Feature: Privacy masking
Bit rate control: Constant Bit Rate (CBR), Constant Bit Rate (CBR)/Variable Bit Rate (VBR), Variable Bit Rate (VBR)
Feature: Back Light Compensation (BLC)

Network

Feature: Ethernet LAN
Number of users: 6 user(s)
Feature: Quality of Service (QoS) support
Streaming method: Multicast, Unicast

Storage

Compatible memory cards: SD, SDHC, SDXC
Maximum memory card size: 128 GB
Flash memory: 256 MB
Internal memory: 512 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
Feature: DC-in jack

Security

Alarm input channels: 1
Alarm output channels: 1
Feature: Video motion detection
Feature: IP address filtering
Security algorithms: EAP-LEAP, EAP-TLS, HTTPS
Feature: Anti-flicker
Feature: Mirror
Feature: Digest authentication

Power

Power source type: DC, PoE
Power consumption (max): 7.7 W
Power consumption (Power over Ethernet (PoE)): 7.7 W
DC output voltage: 12

Operational conditions

Operating temperature (T-T): -30 - 55 °C
Storage temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 90%
Storage relative humidity (H-H): 0 - 90%

Weight & dimensions

Height: 106.1 mm
Diameter: 13.7 cm
Weight: 710 g

Packaging content

Number of cameras: 1
