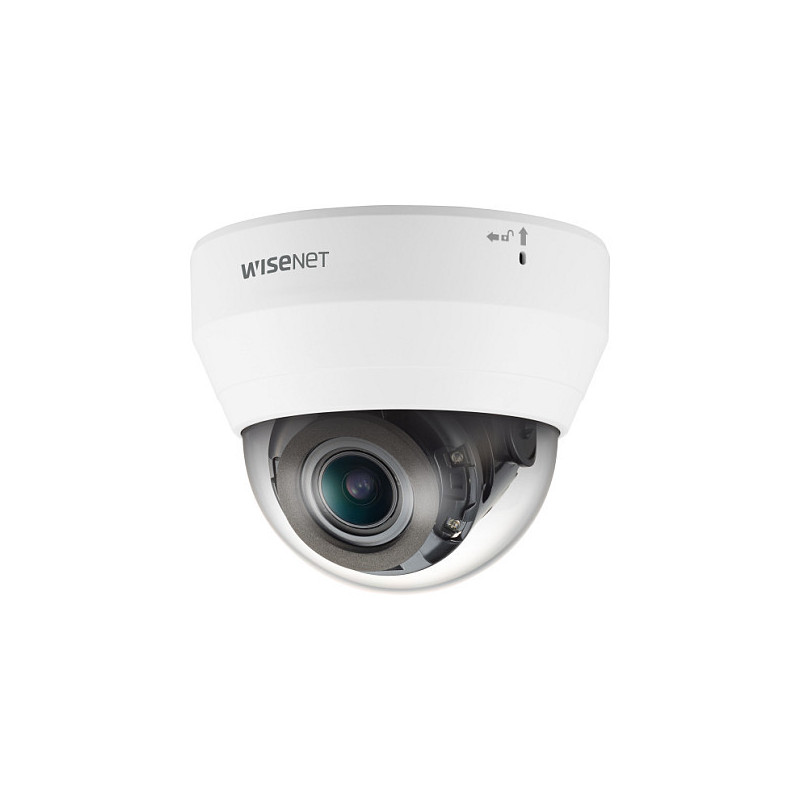

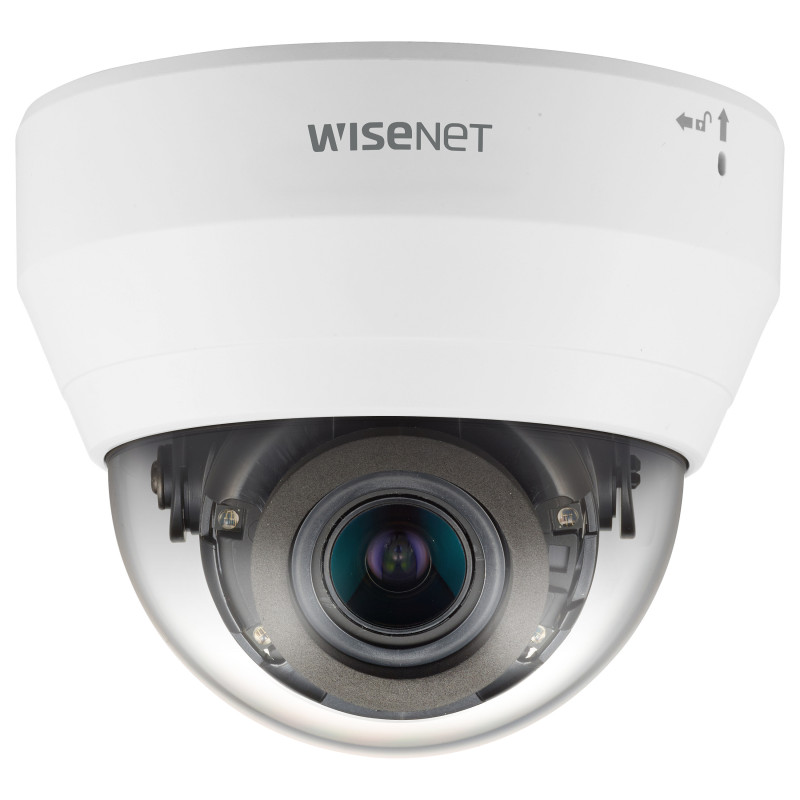

Hanwha QND-7082R apsaugos kamera

Hanwha QND-7082R. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Angle of rotation: 355°, Lens viewing angle, horizontal: 98.6°, Lens viewing angle, vertical: 52.3°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Detect distance: 27 m, Observe distance: 11 m, Recognize distance: 6 m

Performance

Type: IP security camera
Placement supported: Indoor
Connectivity technology: Wired
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode
Feature: Alarm input/output

Design

Form factor: Dome
Mounting type: Ceiling/wall
Product colour: White
Housing material: Plastic

Camera

Feature: Camera pan control
Feature: Camera tilt control
Minimum illumination: 0 lx
Angle of rotation: 355°
Lens viewing angle, horizontal: 98.6°
Lens viewing angle, vertical: 52.3°
Lens viewing angle, diagonal: 115.7°
Tilt angle range: 0 - 67°
Pan range: 0 - 350°

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 3 mm (1 / 3")
Sensor type: CMOS

Lens system

Number of lenses: 1
Detect distance: 27 m
Observe distance: 11 m
Recognize distance: 6 m
Focal length range: 3.2 - 10 mm
Maximum aperture number: 2.9
Identify distance: 3 m
Minimum aperture number: 1.6

Night vision

Feature: Night vision
Night vision distance: 20 m
LED type: IR

Video

Maximum resolution: 2560 x 1440 pixels
Total megapixels: 4 MP
Video compression formats: H.264, H.265, M-JPEG
Frame rate: 30 fps
Feature: Video streaming
Feature: Noise reduction
Feature: Privacy masking
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Feature: Back Light Compensation (BLC)

Audio

Audio input channels: 1.0 channels
Audio output channels: 1.0 channels
Voice codecs: G.711Mu, G.711a, G.723, G.726

Network

Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet
Networking standards: IEEE 802.1x, IEEE 802.3af
Number of users: 20 user(s)
Feature: Quality of Service (QoS) support

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size: 128 GB
Flash memory: 256 MB
Internal memory: 512 MB

Security

Feature: Video motion detection
Feature: IP address filtering
Intelligent Video Surveillance (IVS) system features: Defocus

Power

Power source type: DC, PoE
Power consumption (max): 7.6 W
Power consumption (Power over Ethernet (PoE)): 8.6 W
DC output voltage: 12

Operational conditions

Operating temperature (T-T): -10 - 55 °C
Storage temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%

Weight & dimensions

Height: 98.8 mm
Diameter: 12 cm
Weight: 320 g

Packaging content

Number of cameras: 1
