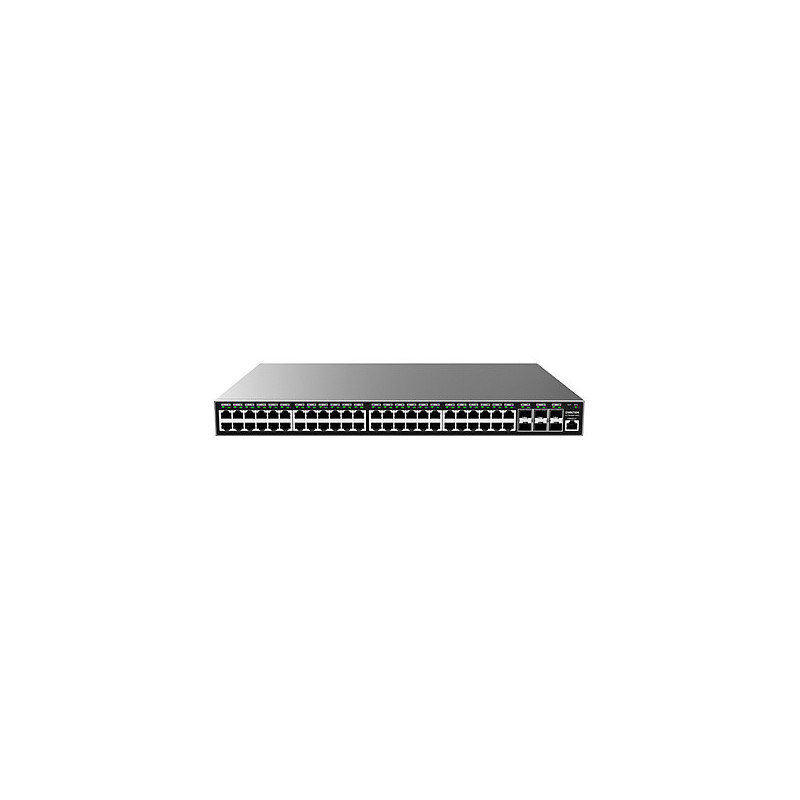

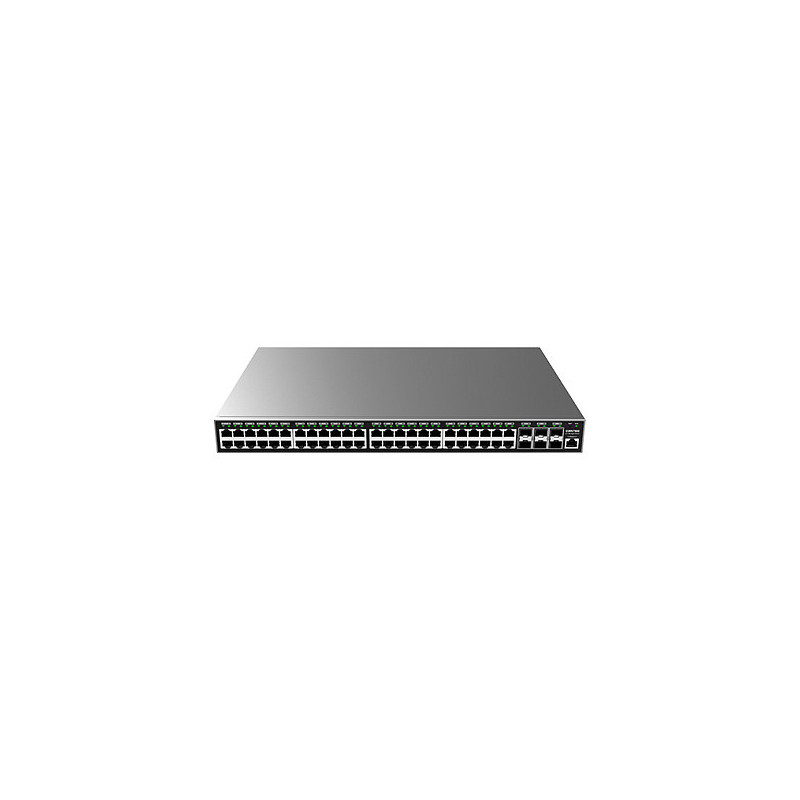

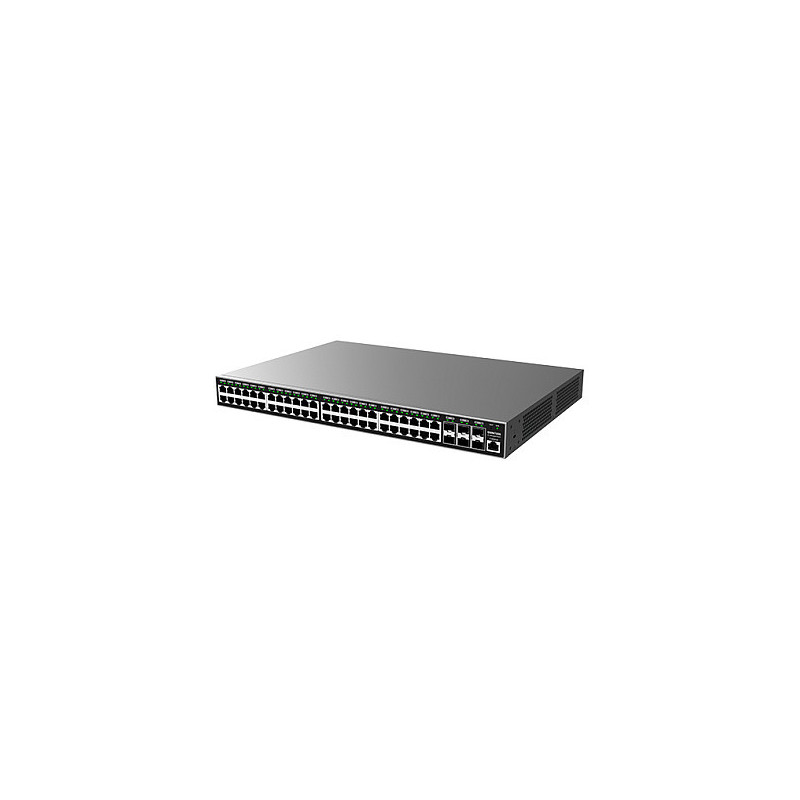

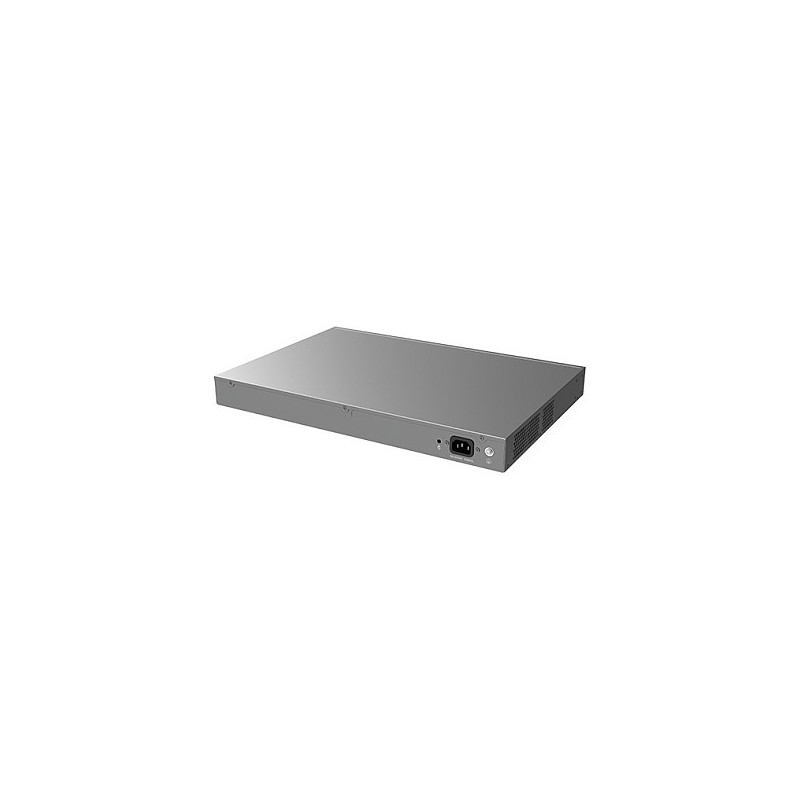

„Grandstream Networks“ GWN7806P tinklo komutatorius

Grandstream Networks GWN7806P. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. MAC address table: 32000 entries, Switching capacity: 216 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Power over Ethernet (PoE). Rack mounting

The GWN7806(P) is a high-performance layer 2+ managed network switch with 48 ports that allows small-to-medium enterprises to build scalable, secure, and smart business networks that are fully manageable

GWN.Cloud
GWN.Cloud is a enterprise-grade, management platform for Grandstream networking products. Secure networks can be deployed in seconds using GWN.Cloud mobile app or the web browser interface, then later managed from the same interface. Keep an eye on the network's performance with real-time monitoring, alerts, statistics and reports that can be viewed using a web browser or the mobile application, then later managed from either interface.

GWN Manager
GWN Manager is a on-premise enterprise- grade, management platform for an unlimited number of Grandstream networking products. Typically deployed on a customer's private network, this solution offers simplified configuration and management. Keep an eye on the network's performance with real-time monitoring, alerts, statistics and reports that can be viewed using a web browser or the mobile application.

Embedded Controller
Grandstream's GWN networking products include an embedded controller software at no extra cost and it is simply built-in to the product's web user interface. Our embedded controllers can auto discovery and auto-provision any in-network GWN series networking product which also offers a centralized provisioning and management interface.

Management features

Switch type: Managed
Switch layer: L2+
Feature: Quality of Service (QoS) support
Feature: Cloud-managed
Feature: Traffic shaping
Feature: ARP inspection

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 48
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity: 6

Network

Feature: Port mirroring
Feature: Link aggregation
Feature: Rate limiting
Feature: Spanning tree protocol
Feature: VLAN support
Virtual LAN features: Tagged VLAN
Number of VLANs: 4000

Data transmission

Switching capacity: 216 Gbit/s
Throughput: 108 Gbit/s
Forwarding rate: 160.704 Mpps
MAC address table: 32000 entries
Feature: Store-and-forward
Feature: Static route
Packet buffer memory: 16 MB

Security

DHCP features: DHCP Option 82, DHCP relay, DHCP server, DHCP snooping
Feature: Access Control List (ACL)
Access Control List (ACL) IPv4 entries: 4000
Access Control List (ACL) IPv6 entries: 4000
Feature: IGMP snooping
Security algorithms: 802.1x RADIUS, SNMP
Feature: MAC address filtering
Feature: Loop protection
Feature: BPDU filtering/protection
Feature: Password protection
Authentication type: AAA, RADIUS, TACACS+
Queue scheduling algorithms: SP, WFQ, WFQ+SP, WRR+SP, Weighted Round Robin (WRR)

Protocols

Feature: GARP VLAN Registration Protocol (GVRP)

Design

Feature: Rack mounting

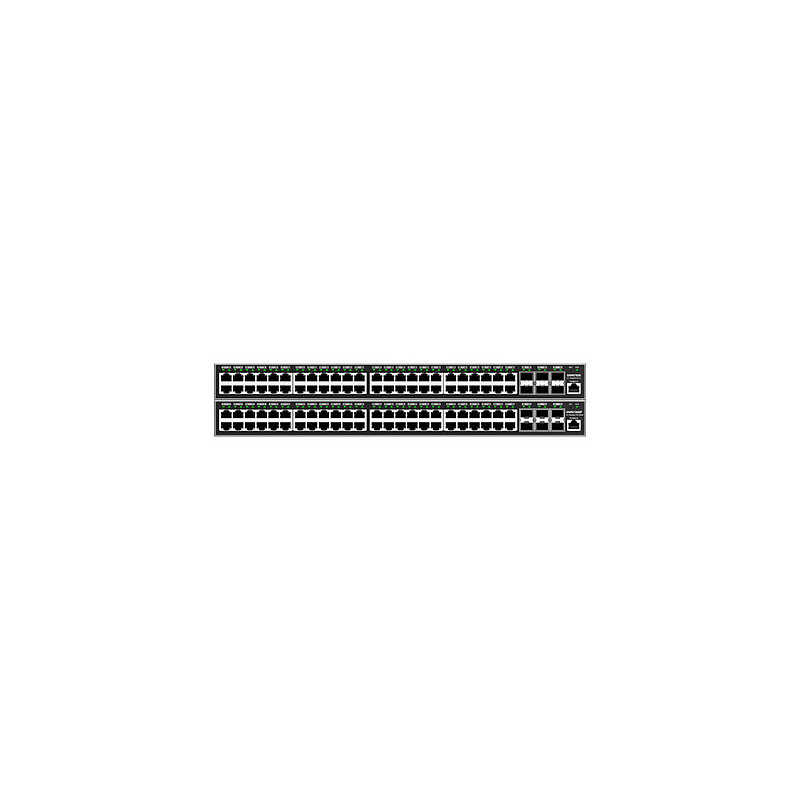

Feature: Stackable
Product colour: Grey
LED indicators: Yes
Number of fans: 3 fan(s)

Performance

Physical stacking (units): 16

Power

Power source: DC/PoE
Feature: Power supply included
Power consumption (typical): 470 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) ports quantity: 48
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 400 W

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -10 - 60 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 301 mm
Depth: 440 mm
Height: 44 mm
Weight: 5.1 kg

Packaging content

Cables included: AC
Feature: Quick start guide
Feature: Rack mount kit
