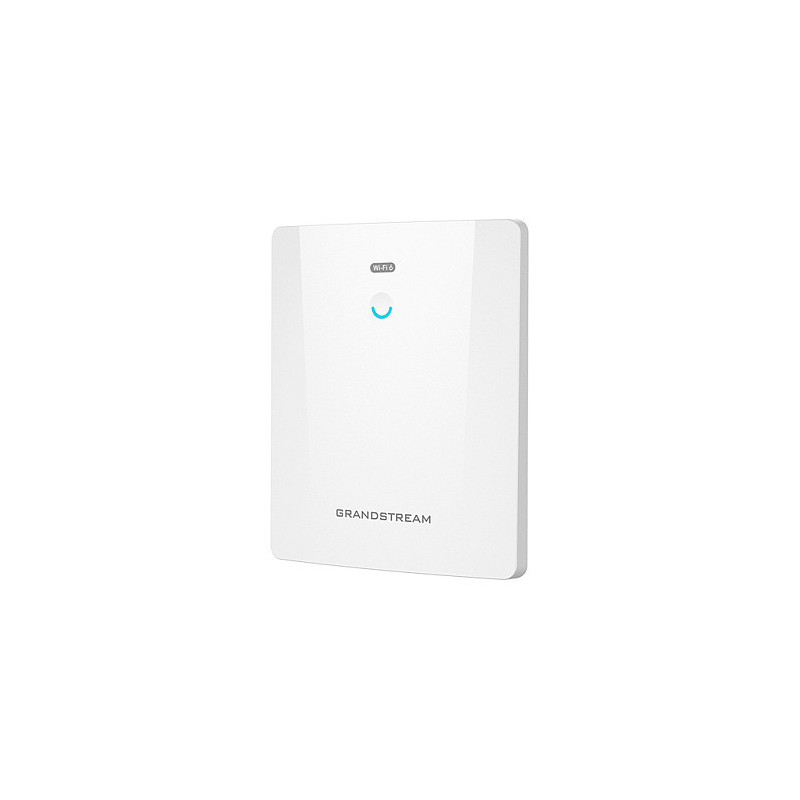

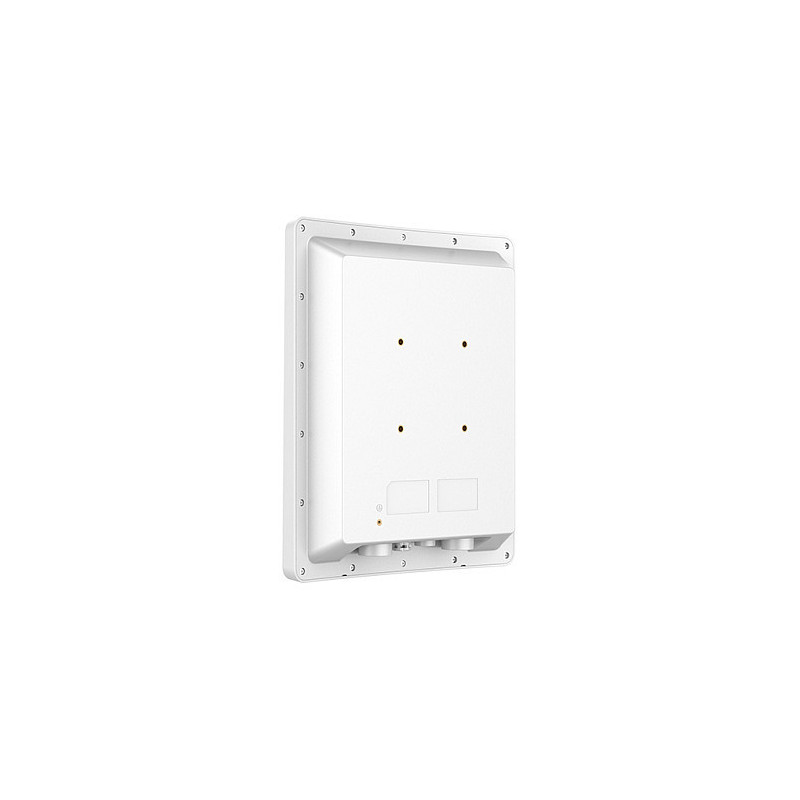

„Grandstream Networks“ GWN7664ELR belaidis prieigos taškas

Grandstream Networks GWN7664ELR. 2.4 GHz, 5 GHz, Maximum data transfer rate: 6000 Mbit/s. Security algorithms: AES, SSID, TKIP, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3. Ethernet LAN data rates: 2500 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 24 W

The GWN7664ELR is an enterprise-grade long-range 802.11ax Wi-Fi 6 access point for medium-to-large businesses and enterprises who need to provide long-range coverage in outdoor spaces.

GDMS Networking
GDMS Networking is an enterprise-grade, cloud management platform for Grandstream networking products.

GWN Manager
GWN Manager is an on-premise enterprise- grade, management platform for an unlimited number of Grandstream networking products.

Embedded Controller
Grandstream's GWN networking products include an embedded controller software and is built-in to the product's web user interface.

Features

Feature: 2.4 GHz
Feature: 5 GHz
Maximum data transfer rate: 6000 Mbit/s
Maximum data transfer rate (2.4 GHz): 1147 Mbit/s
Maximum data transfer rate (5 GHz): 4800 Mbit/s
Ethernet LAN data rates: 2500 Mbit/s
Frequency band: 2400 - 2483.5, 5150 - 5850 GHz
Networking standards: IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at
Feature: MIMO
MIMO type: Multi User MIMO
Spread spectrum method: OFDMA
Number of WLAN connections (max): 512
Feature: Quality of Service (QoS) support
Maximum outdoor range: 300 m

Security

Security algorithms: AES, SSID, TKIP, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3
Number of SSID supported: 32

Protocols

Supported network protocols: s IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM

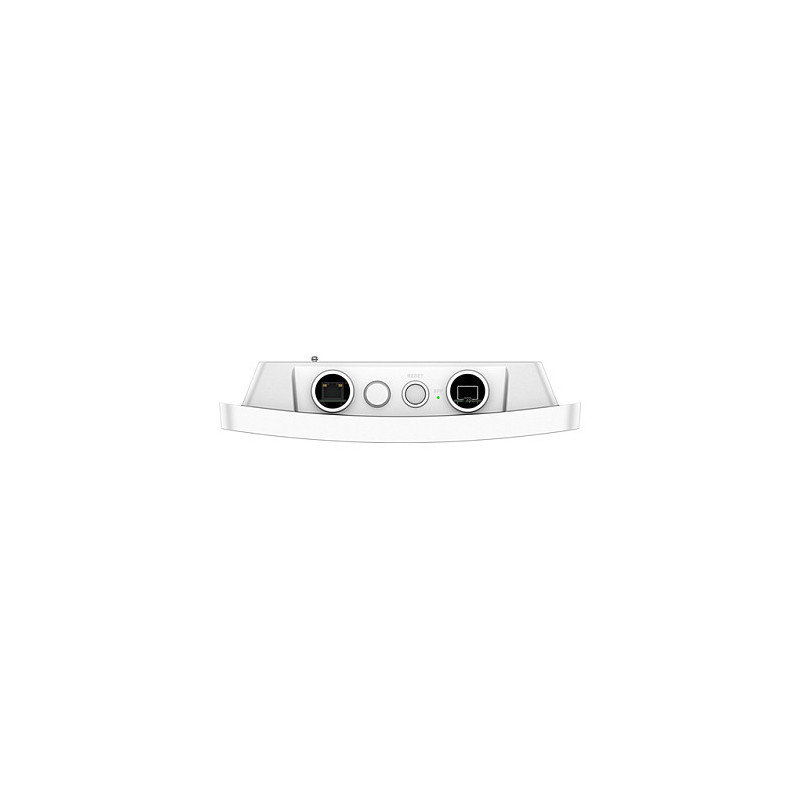

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
WAN connection: SFP

Power

Feature: Power over Ethernet (PoE)
Power consumption (max): 24 W

Design

Placement: Pole, Wall
Product colour: White
International Protection (IP) code: IP67
Feature: Reset button
LED indicators: Yes

Antenna

Antenna type: Internal
Antennas quantity: 8
Antenna gain level (max): 6.5 dBi

Weight & dimensions

Width: 310 mm
Depth: 260 mm
Height: 59 mm
Weight: 1.45 kg

Packaging data

Package width: 469 mm
Package depth: 377 mm
Package height: 137 mm
Package weight: 3.06 kg

Packaging content

Quantity per pack: 1 pc(s)
Feature: Mounting kit
Feature: Quick start guide

Operational conditions

Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): -30 - 60 °C
Storage temperature (T-T): -30 - 60 °C
