„Grandstream Networks GWN7660“ belaidis prieigos taškas

Grandstream Networks GWN7660. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1770 Mbit/s. Security algorithms: WEP, WPA, WPA2, WPA2-PSK, WPA3. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 9 W

The GWN7660 is an enterprise-grade 802.11ax Wi-Fi 6 access point and offers dual-band 2x2:2 MU-MIMO with DL/UL OFDMA technology and a sophisticated antenna design for maximum network throughput, that allows businesses to build next-generation Wi-Fi networks for high-density environments.

The GWN7660 offers dual-band 2x2:2 MU-MIMO with DL/UL OFDMA technology and a sophisticated antenna design for maximum network throughput and expanded Wi-Fi coverage range. To ensure easy installation and management, the GWN7660 uses a controller-less distributed network management design in which the controller is embedded within the product's Web user interface. The GWN7660 is also supported by GWN.Cloud and GWN Manager, Grandstream's cloud and on-premise Wi-Fi management platform. It is the ideal Wi-Fi AP for voice-over-Wi -Fi deployments and offers a seamless connection with Grandstream's Wi-Fi capable IP phones. With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals, 256 concurrent clients per AP and dual Gigabit network ports with PoE/PoE+, GWN7660 is an ideal Wi-Fi access point for medium wireless network deployments with medium-to-high user density.

Features

Feature: 2.4 GHz
Feature: 5 GHz
Maximum data transfer rate: 1770 Mbit/s
Maximum data transfer rate (2.4 GHz): 573.5 Mbit/s
Maximum data transfer rate (5 GHz): 1201 Mbit/s
Ethernet LAN data rates: 10,100,1000 Mbit/s
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Feature: MIMO
Feature: VLAN support
Feature: Quality of Service (QoS) support
Maximum indoor range: 175 m

Security

Security algorithms: WEP, WPA, WPA2, WPA2-PSK, WPA3
Number of SSID supported: 32

Protocols

Supported network protocols: IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM

Ports & interfaces

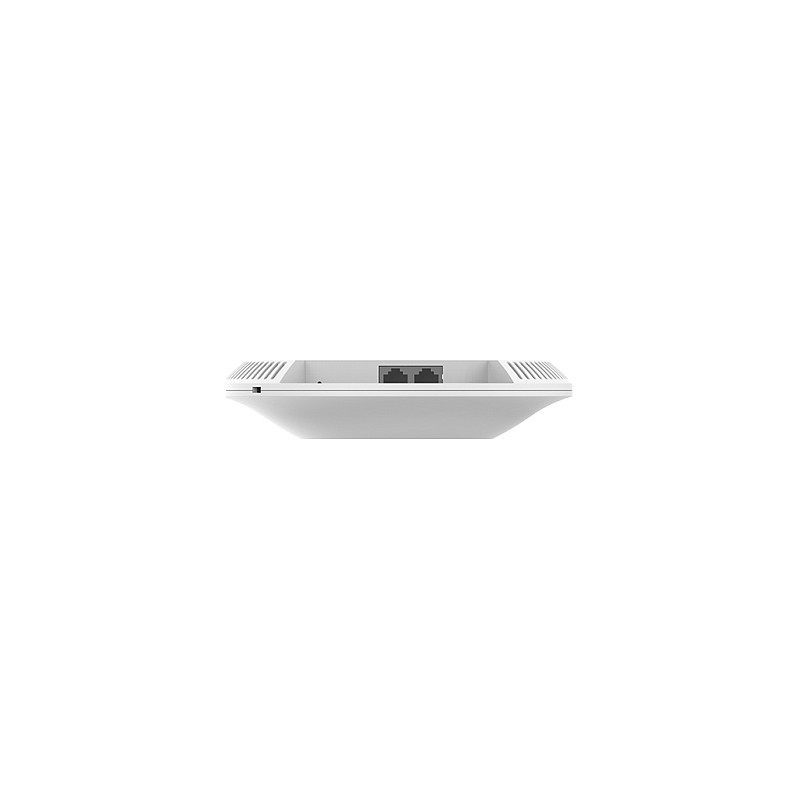

Ethernet LAN (RJ-45) ports: 2

Power

Feature: Power over Ethernet (PoE)
Power consumption (max): 9 W

Design

Placement: Wall
Product colour: White
Feature: Cable lock slot
Cable lock slot type: Kensington
LED indicators: Status

Antenna

Antenna type: Internal
Antenna gain level (max): 4 dBi

Certificates

Certification: FCC, CE, RCM, IC

Weight & dimensions

Width: 180.4 mm
Depth: 180.4 mm
Height: 40.8 mm
Weight: 443 g

Packaging data

Package width: 228.5 mm
Package depth: 220 mm
Package height: 79 mm
Package weight: 774 g

Operational conditions

Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -10 - 60 °C

Logistics data

Harmonized System (HS) code: 85176990
