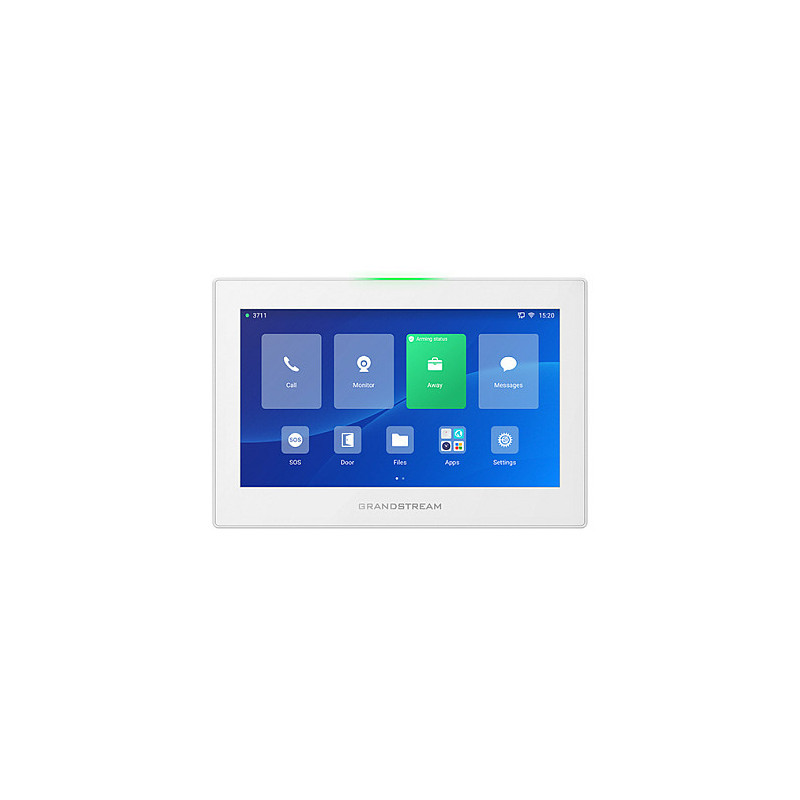

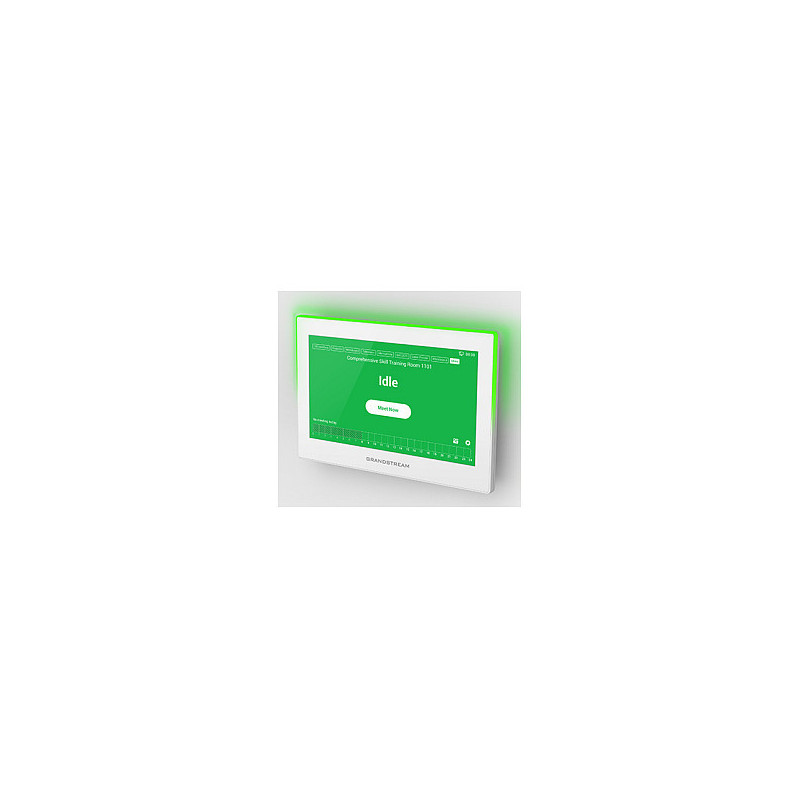

„Grandstream Networks GSC3574“ vaizdo domofono sistema

Grandstream Networks GSC3574. Display diagonal: 17.8 cm (7"), Display technology: TFT, Display resolution: 1024 x 600 pixels. Voice codecs: AGC, AJB, CNG, G.711, G.722, G.726-32, G.729A, G.729B, OPUS, PLC, VAD, iLBC. Product colour: White, On Screen Display (OSD) languages: Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Portuguese,..., Placement supported: Horizontal. Compatible memory cards: MicroSD (TransFlash), Maximum memory card size: 512 GB. Ethernet interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

The GSC3574 and GSC3575 are powerful intercom and facility control stations and run on Android™ Version 13 and support all lighting, HVAC, scheduling, and similar smart office apps in the Google Play Store.

Grandstream Device Management System
GDMS provides a FREE centralized interface to provision, manage, monitor and troubleshoot Grandstream products, including device management, account management, device configuration, firmware upgrades, device monitoring, intelligent alarm, and statistical analysis, individually or in batches of devices by site, group and model. This powerful cloud management platform adds robust security features to protect enterprise networks, including bank-grade TLS encryption from end-to-end, two-factor login authentication to protect your data security, two-way certificate verification and encryption of all device information. By offering a centralized, secure and zero-touch management for Grandstream endpoints, GDMS is ideal for enterprises, service providers and multi-site businesses as it allows them to easily deploy and manage large networks of Grandstream solutions. Visit gdms.cloud to sign up for free today!

Android and iOS mobile users can access the GDMS mobile app from any device by downloading for free through the app store, or get it on google play.

Technical details

Connectivity technology: Wired & Wireless
Feature: Colour
Feature: Speakerphone
Frequency band: 2.4 & 5
Feature: Built-in microphone
Compliance certificates: Federal Communications Commission (FCC), CE, RCM, EAC

Display

Display diagonal: 17.8 cm (7")
Display technology: TFT
Display resolution: 1024 x 600 pixels
Feature: Touchscreen
Touchscreen type: Capacitive
Video formats supported: H.264, H.264 BP

Audio

Feature: Built-in speaker(s)
Number of speakers: 2
Voice codecs: AGC, AJB, CNG, G.711, G.722, G.726-32, G.729A, G.729B, OPUS, PLC, VAD, iLBC

Design

Product colour: White
On Screen Display (OSD) languages: Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Portuguese, Russian
Placement supported: Horizontal

Storage

Feature: Memory card slot
Compatible memory cards: MicroSD (TransFlash)
Maximum memory card size: 512 GB

Network

Ethernet interface type: Fast Ethernet
Ethernet LAN data rates: 10,100 Mbit/s
Feature: Wi-Fi
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Feature: Power over Ethernet (PoE)
Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af

Software

Operating system installed: Android
Operating system version: 13

Power

AC adapter output voltage: 12 V
AC adapter output current: 1 A

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -10 - 60 °C
Operating relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 182 mm
Depth: 122 mm
Height: 26.2 mm
Weight: 408 g

Packaging data

Feature: Indoor unit included
Package width: 230 mm
Package depth: 154 mm
Package height: 67 mm
Package weight: 729 g

Logistics data

Quantity per pack: 1 pc(s)
