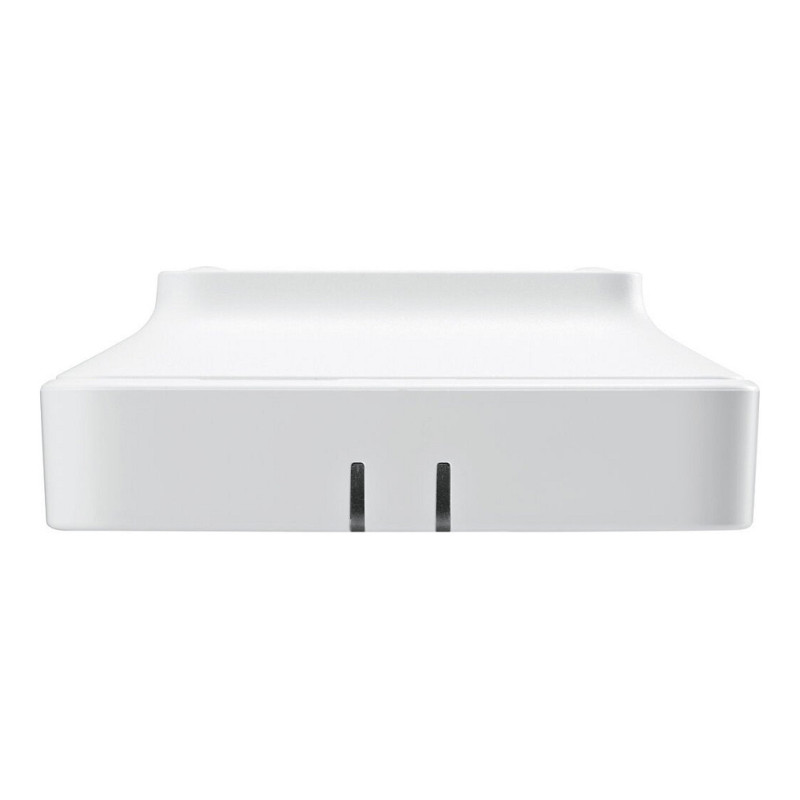

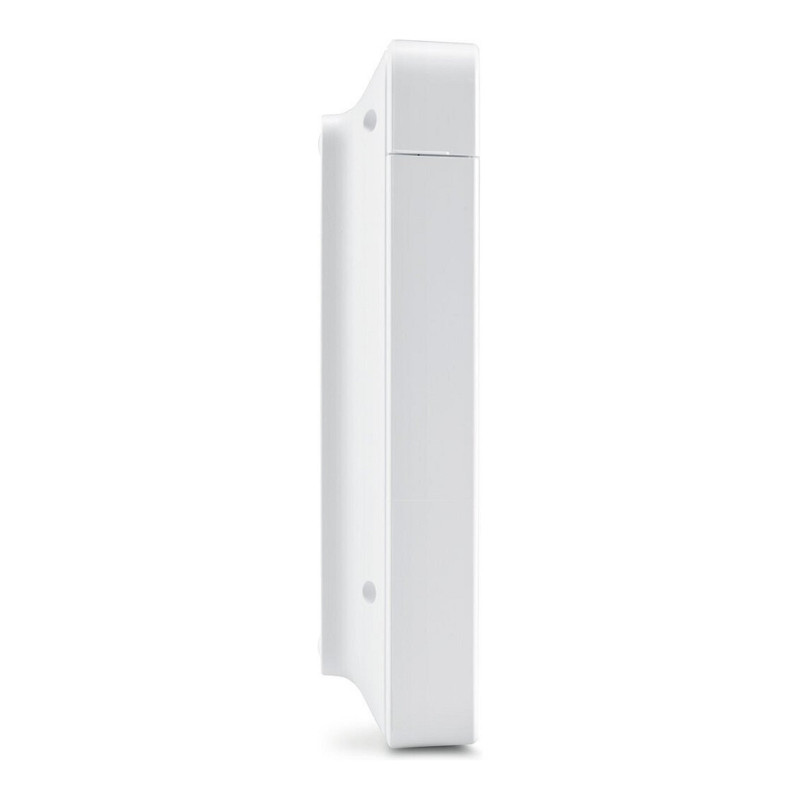

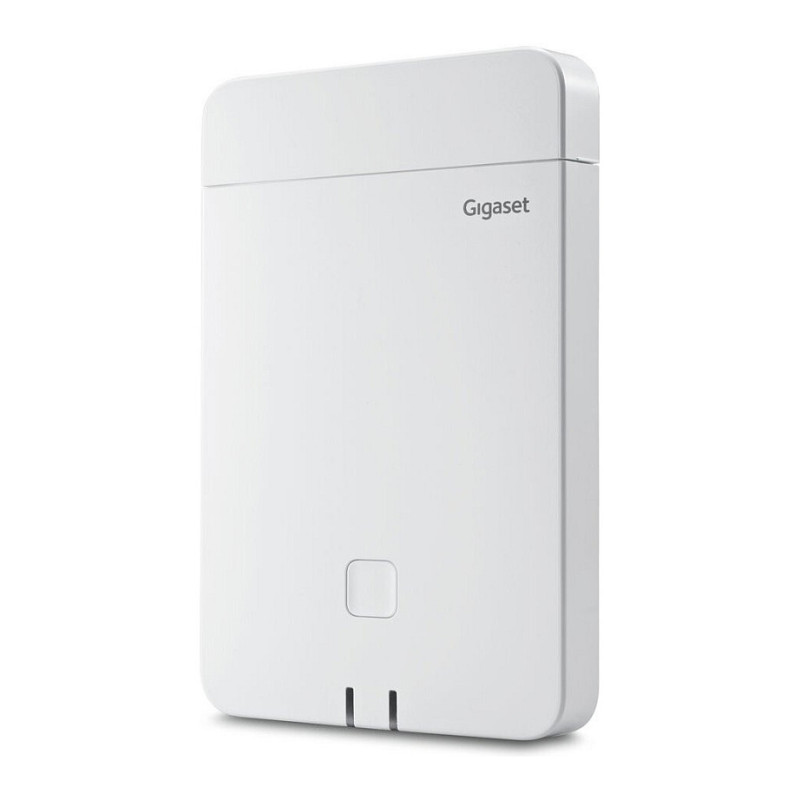

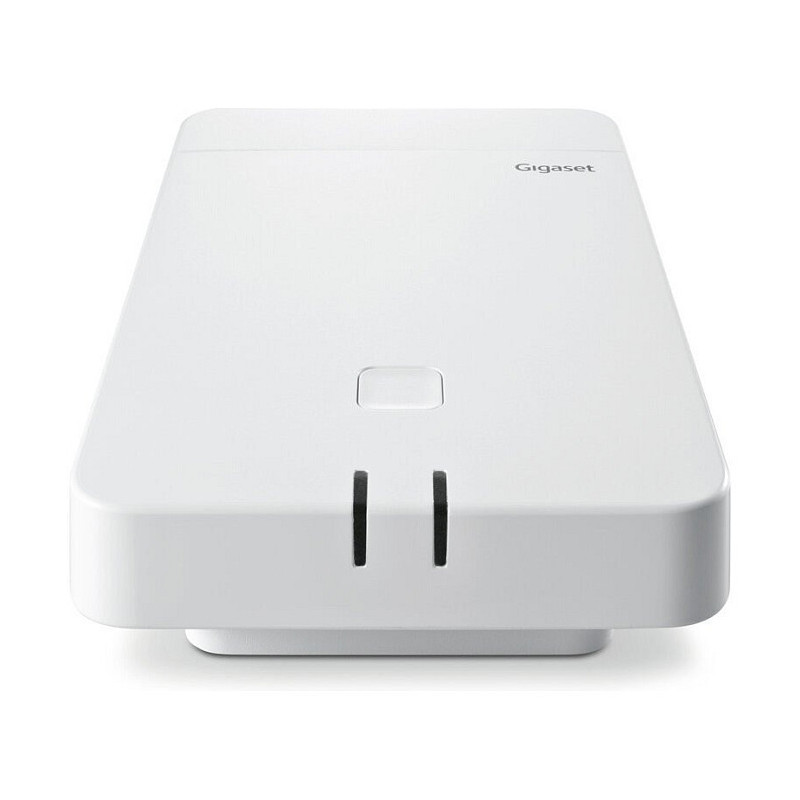

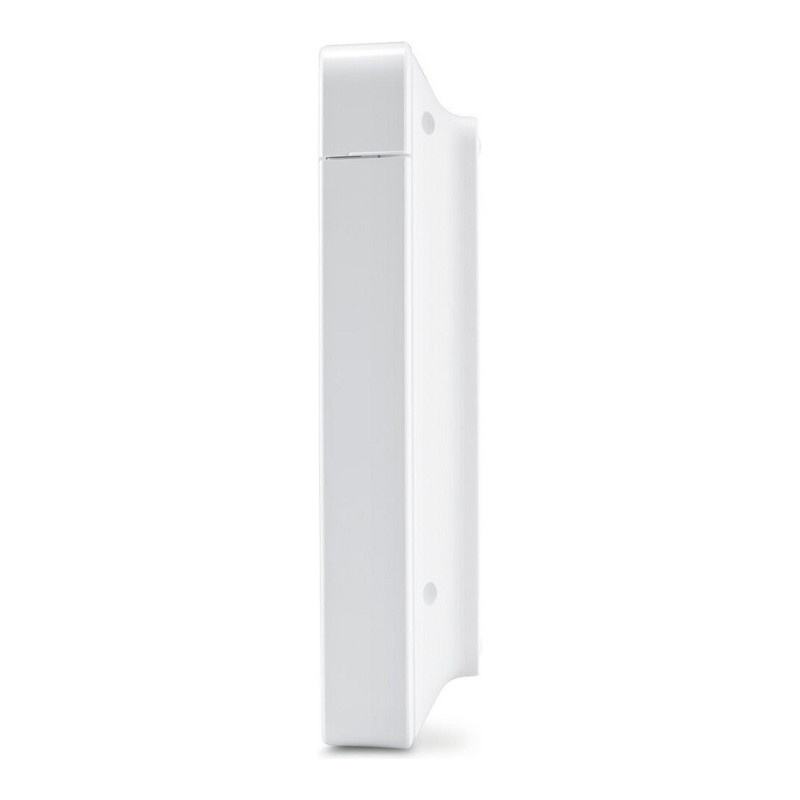

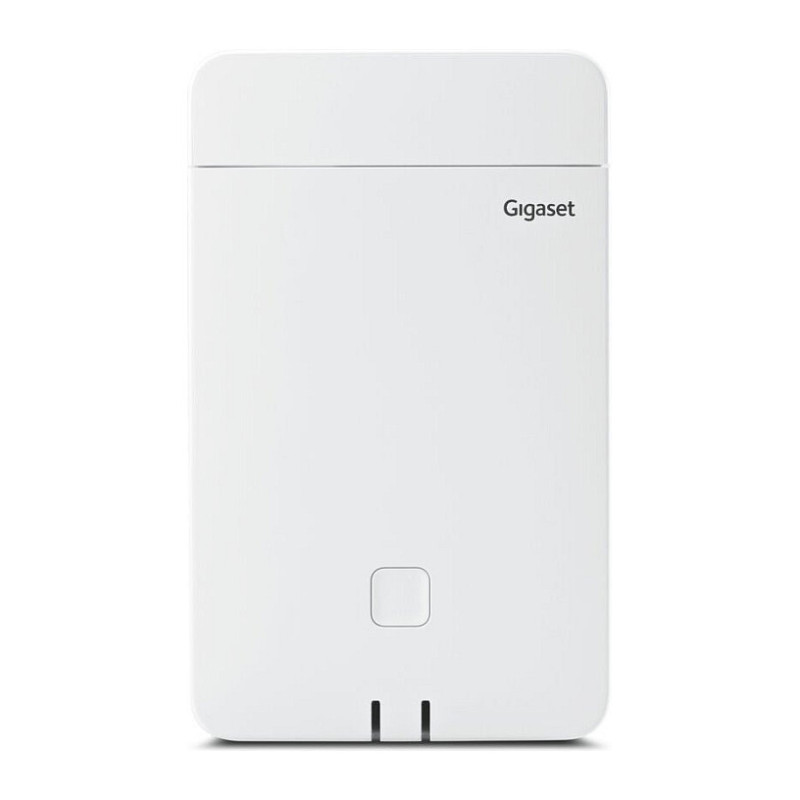

Gigaset N770 IP Pro DECT bazinė stotis

Gigaset N770 IP Pro. Channels quantity: 120 channels, Security algorithms: HTTPS, SIPS, SRTP, SSL/TLS, Compatible products: S700H PRO, R700H PRO, R700H protect PRO, SL800H PRO, SL850H PRO. Maximum indoor range: 50 m, Maximum outdoor range: 300 m. Product colour: White. Dimensions (WxDxH): 110 x 42 x 180 mm, Weight: 220 g, Package width: 163 mm

The DECT IP multi-cell system for small to medium-sized businesses

The Gigaset N770 IP PRO is the first choice for cordless telephony for up to 100 handsets.

An N770 IP PRO in the role of integrator+DECT manager manages up to 20 N770 IP PRO DECT base stations. This enables telephony in a large coverage area with seamless call handover.

Up to 30 parallel calls guarantee a high level of operational readiness in your business environment.

Calls are secure thanks to SRTP. Contacts are always available in the central phone book of the N770 IP PRO, or can be connected via LDAP or XML. With the ability to create their own xhtml applications, users can access and control business-relevant data.

The Gigaset N770 IP PRO is compatible with a wide range of on-premise and cloud telephone systems and is easy to set up thanks to auto-provisioning. The range of functions is rounded off by support for Alarm, Messaging and Location (AML).

Made for growth - scalable multi-cell technology
With the Gigaset N770 IP PRO, your communication system grows with your business. Up to 20 base stations can be combined into a multi-cell network - for seamless handover and roaming throughout the office.

Full team performance - up to 100 users, 30 simultaneous calls
The Gigaset N770 IP PRO supports up to 100 users, handsets and SIP accounts. With up to 30 simultaneous calls, it ensures consistently high availability even during busy periods. The base station is compatible with many IP-based telephone systems and virtual telephone systems from well-known manufacturers. All professional Gigaset DECT handsets of the current generation are compatible and can be easily integrated.

Future-proof functionality - Alarm, Messaging, Location
For demanding application scenarios such as industry, healthcare or large offices, the Gigaset N770 IP PRO offers licence-based support for Alarm, Messaging and Location (AML) - for example, for security, emergency calls or location determination. Thanks to a central phone book (only for small/medium-sized systems), integration of external directories (LDAP, XML, Remote, Broadsoft, 3CX, xHTML) and encrypted contacts, your team always stays connected.

Security & quick setup
The Gigaset N770 IP PRO relies on state-of-the-art security standards: DECT and SIP communication are end-to-end encrypted (SRTP/SIPS/TLS/LDAP(S)/HTTPS). Both "Sync over the Air" and "Sync over LAN" are available for synchronisation between the base stations. Thanks to zero-touch auto-provisioning, setup is quick and easy. Firmware updates, configuration and maintenance are simple and secure - even for larger, distributed infrastructures.

Flexible, compact & efficient
The Gigaset N770 IP PRO impresses with its compact design and can be used flexibly in any small to medium-sized business - whether in industry, healthcare or large offices.

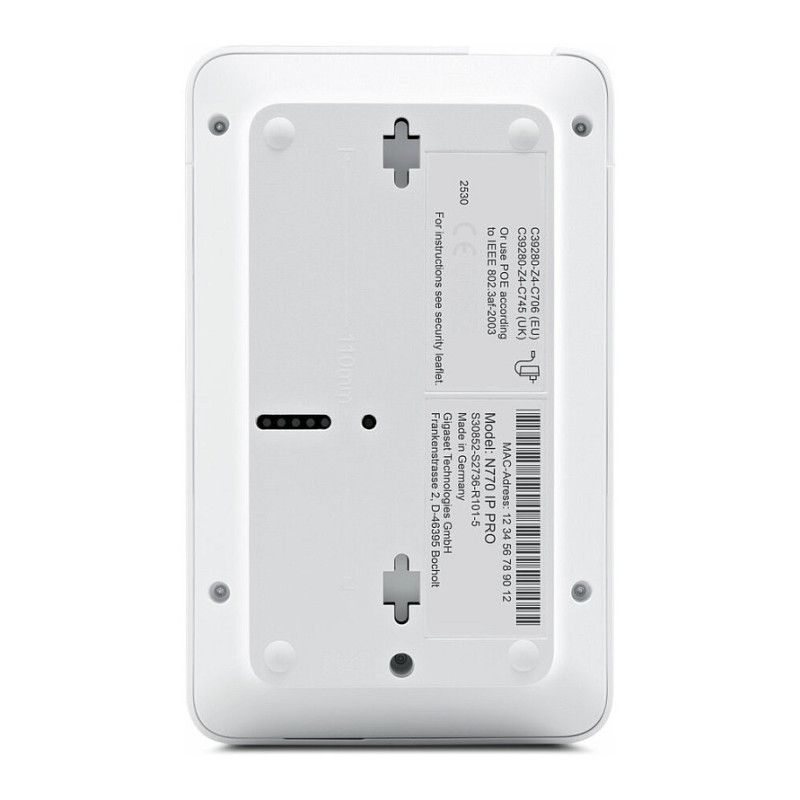

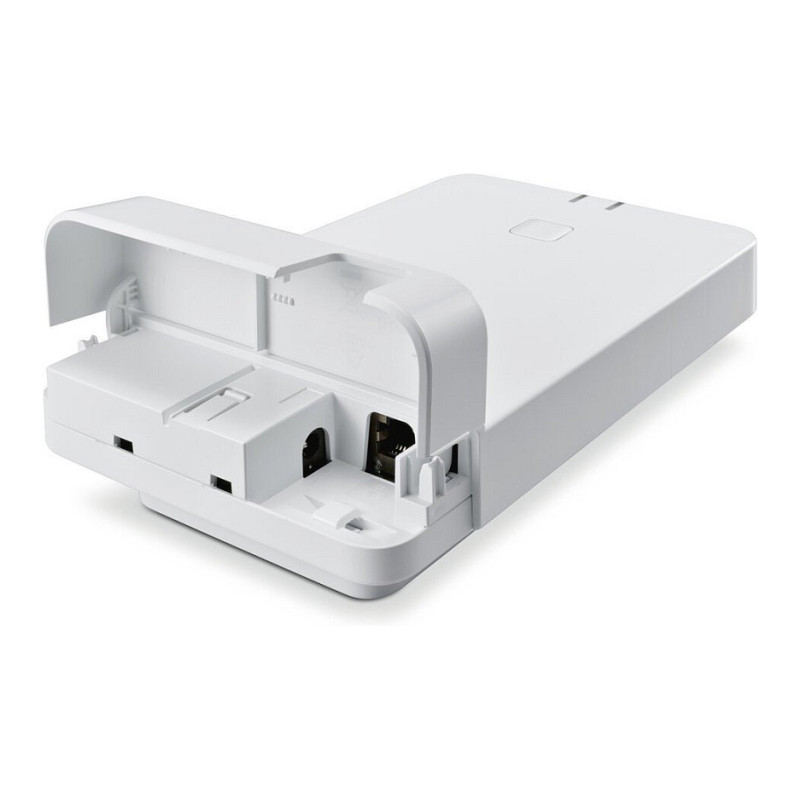

The multi-cell can be mounted on the wall or ceiling to save space. Power is conveniently supplied via Power over Ethernet (PoE), with a separate power supply unit available as an option. Installation is quick and easy, even for multiple base stations.

Further advantages at a glance

- Autoprovisioning:
- Fastest commissioning via IPUI provisioning - for particularly simple and efficient setup.
- Security & encryption:
- Secure calls thanks to modern standards such as RTP, SIPS and TLS - tap-proof, even in the cloud. Server location and redirect in Germany.
- Easy installation & configuration:
- Intuitive setup and quick configuration ensure a smooth start.
- Licence model:
- Transparent one-time licences for AML handsets and infrastructure - no hidden follow-up costs.
- Central phone book:
- Central, encrypted phone book with LDAP(S) support and company-wide access.

Made in Germany - for the highest quality standards and reliable service.

Performance

Number of handsets supported (max): 100
Channels quantity: 120 channels
Feature: GAP compatible
Feature: Voice activity detection
Feature: Comfort noise generation (CNG)
Security algorithms: HTTPS, SIPS, SRTP, SSL/TLS
Feature: Quality of Service (QoS) support
Feature: Dual-Tone Multi-Frequency (DTMF)
Feature: Firmware upgradeable
Compatible products: S700H PRO, R700H PRO, R700H protect PRO, SL800H PRO, SL850H PRO

Call management

Feature: Conference call
Number of parallel conferences: 30
Feature: Call waiting
Feature: Call forwarding
Feature: Call transfer
Feature: Call hold

Antenna

Maximum indoor range: 50 m
Maximum outdoor range: 300 m

Ports & interfaces

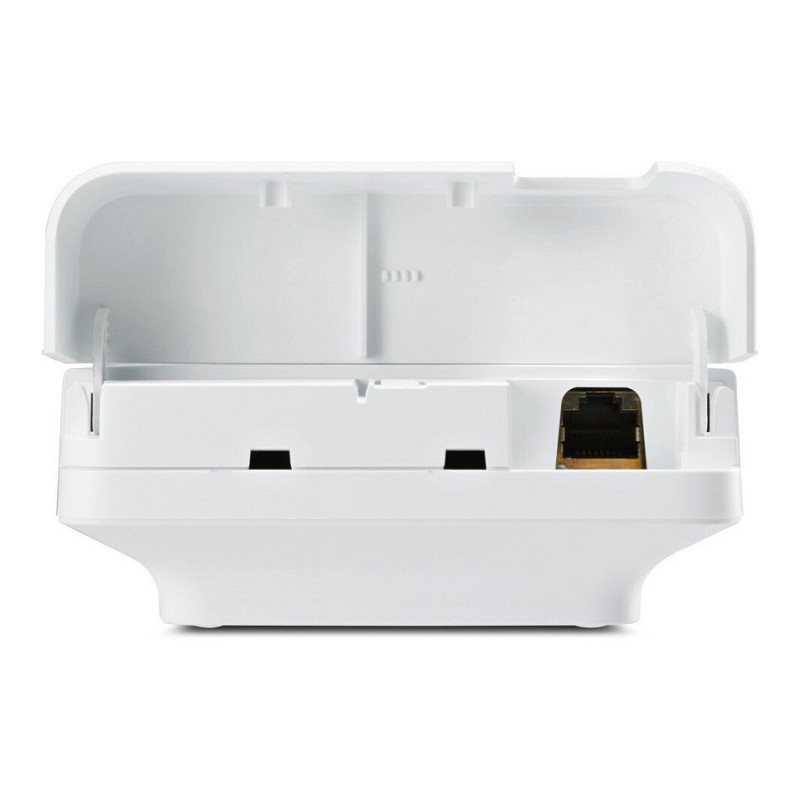

Feature: Ethernet LAN

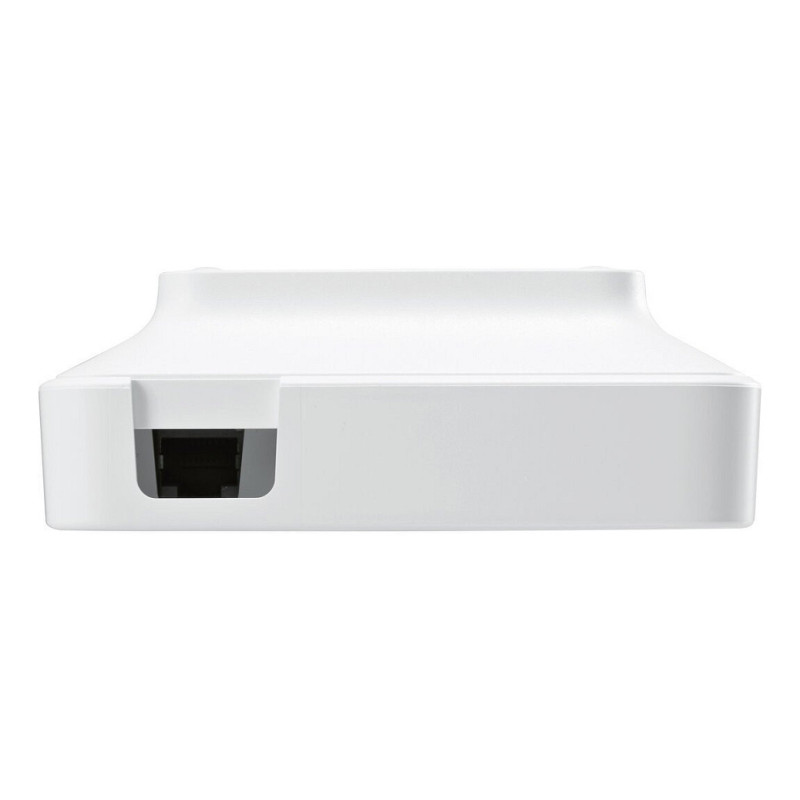

Ethernet LAN (RJ-45) ports: 1

Design

Product colour: White
Feature: Wall mountable

Power

Feature: Power over Ethernet (PoE)

Operational conditions

Operating temperature (T-T): 5 - 45 °C
Storage temperature (T-T): -20 - 70 °C
Operating relative humidity (H-H): 20 - 75%

Weight & dimensions

Dimensions (WxDxH): 110 x 42 x 180 mm
Weight: 220 g
Package width: 163 mm
Package depth: 65 mm
Package height: 223 mm
Package weight: 380 g

Packaging content

Feature: Screws included
