Foscam V5EP

Foscam V5EP. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: Black, White, Form factor: Bullet. Lens viewing angle, horizontal: 82.3°, Lens viewing angle, vertical: 52.5°, Lens viewing angle, diagonal: 110°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Fixed focal length: 4 mm

Foscam V5EP

5 Megapixel outdoor security camera with person and vehicle detection and high-definition images. With stable Power over Ethernet connection.

Power over Ethernet

Power over ethernet (poe camera) for easy installation. This camera is compatible with Foscam NVR.

Person and vehicle detection

Say goodbye to the unwanted alarms triggered by moving branches or flying bugs. With advanced human/vehicle detection, the camera identifies true threats in the light of cutting-edge detection algorithms, giving you the utmost peace and relief.

Two-way audio for real-time dialogue

Built-in microphone & speaker allow you to listen and talk back to whoever the camera catches: A 'hello' to families and friends or a warning to suspicious strangers.

Sound and Light alarm

Once an intruder is detected, the camera's spotlight and siren will be triggered to warn potential criminals. You can also manually activate the spotlight to stop crimes before it happen and it supports maximum 100dB alarm siren.

Performance

Type: IP security camera
Placement supported: Outdoor
Connectivity technology: Wired
Virtual assistant: Amazon Alexa & Google Assistant
Feature: Day/night mode
Feature: Built-in light
Colour temperature: 4500 K
Certification: FCC, CE, UKCA, ERP

Design

Form factor: Bullet
Mounting type: Wall
Product colour: Black, White
International Protection (IP) code: IP66
Feature: Weatherproof

Camera

Minimum illumination: 0 lx
Lens viewing angle, horizontal: 82.3°
Lens viewing angle, vertical: 52.5°
Lens viewing angle, diagonal: 110°

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
Sensor type: CMOS

Lens system

Number of lenses: 1
Maximum aperture number: 2.1
Fixed focal length: 4 mm

Night vision

Feature: Night vision
Night vision distance: 20 m
LED type: IR
Number of illumination LEDs: 4

Video

Maximum resolution: 3072 x 1728 pixels
Total megapixels: 5 MP
Video formats supported: H.264, H.265
Supported graphics resolutions: 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 3072 x 1728
Supported video modes: 720p, 1080p
Frame rate: 25 fps
Feature: Video streaming
Image quality adjustment: Brightness, Contrast, Saturation, Sharpness
Feature: Flip & mirror

Audio

Feature: Built-in speaker(s)
Audio system: 2-way
Audio formats supported: AAC, PCM
Feature: Built-in microphone

Network

Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet
Networking standards: IEEE 802.3af
Supported network protocols: IP, TCP, UDP, SMTP, FTP, DHCP, RTSP, ONVIF
Streaming method: Multicast

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash)
Maximum memory card size: 256 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1

Security

Feature: Built-in siren
Siren noise level: 100 dB
Feature: Video motion detection
Alert notification type: E-mail, Snapshot alert message
Intelligent Video Surveillance (IVS) system features: Human detection, Vehicle detection

Power

Power source type: PoE
Power consumption (max): 5 W
DC output voltage: 12
DC output current: 1 A

Operational conditions

Operating temperature (T-T): -20 - 50 °C
Storage temperature (T-T): -20 - 50 °C
Operating relative humidity (H-H): 10 - 80%
Storage relative humidity (H-H): 0 - 90%

System requirements

Windows operating systems supported: Yes
Mac operating systems supported: Yes
Mobile operating systems supported: Android, iOS

Weight & dimensions

Width: 66 mm
Depth: 170 mm
Height: 66 mm
Weight: 342 g

Packaging data

Package type: Box

Sustainability

Compliance certificates: RoHS

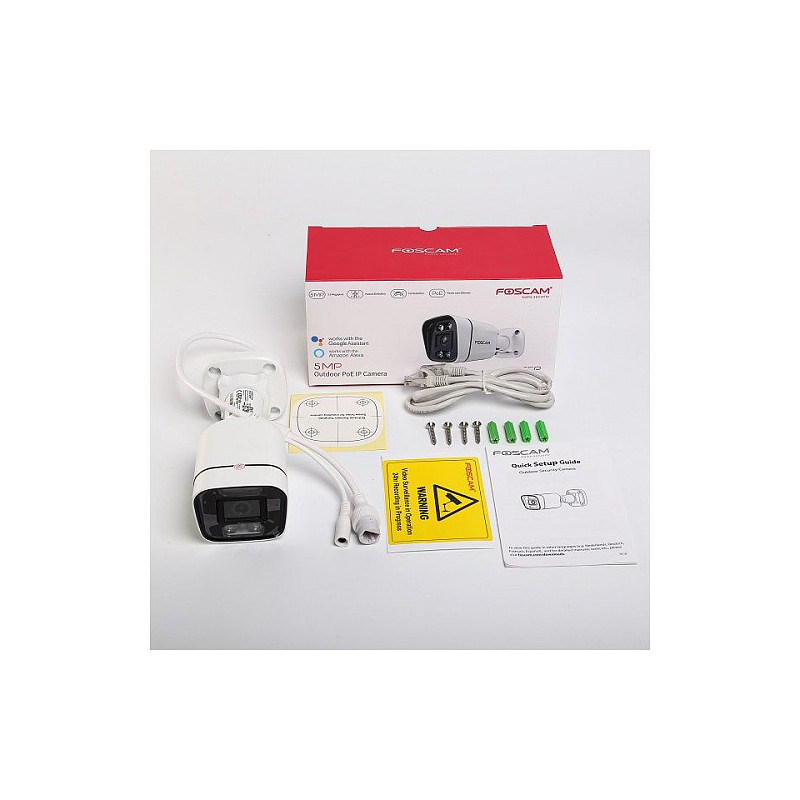

Packaging content

Number of cameras: 1
Cables included: LAN (RJ-45)
Feature: Screws included
Feature: Manual
