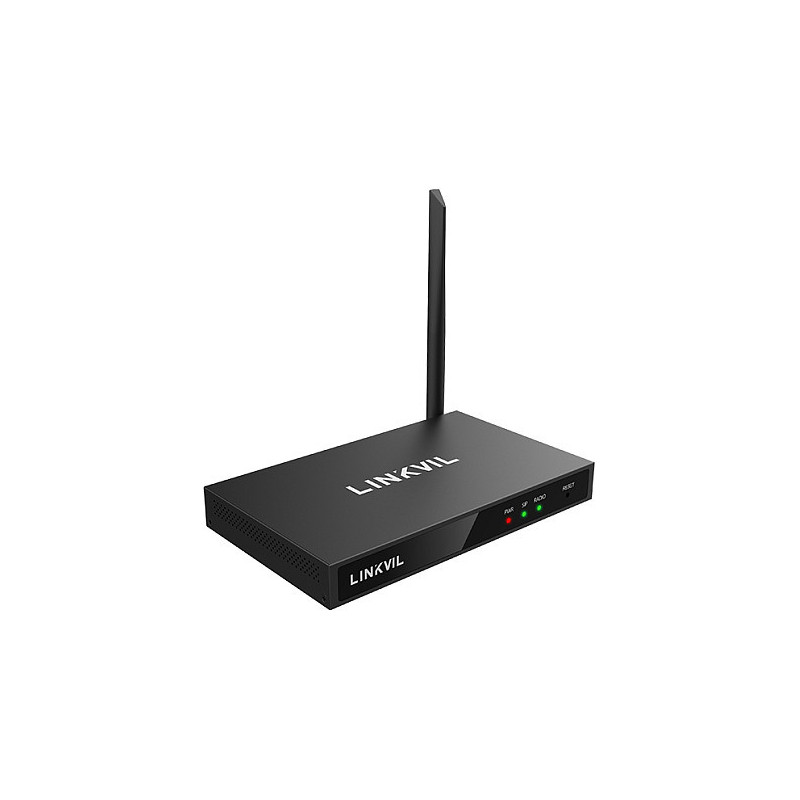

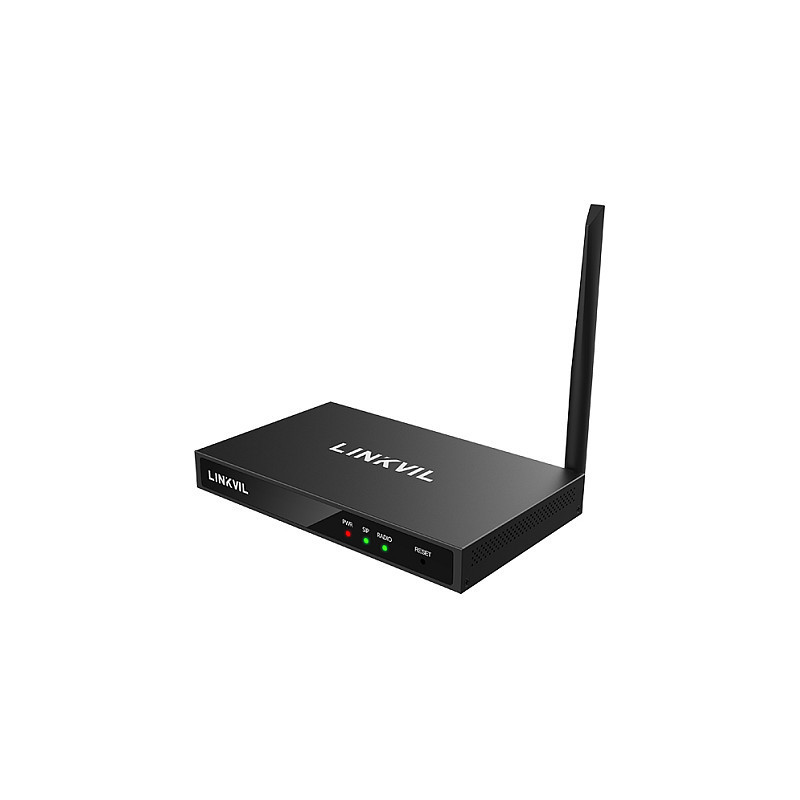

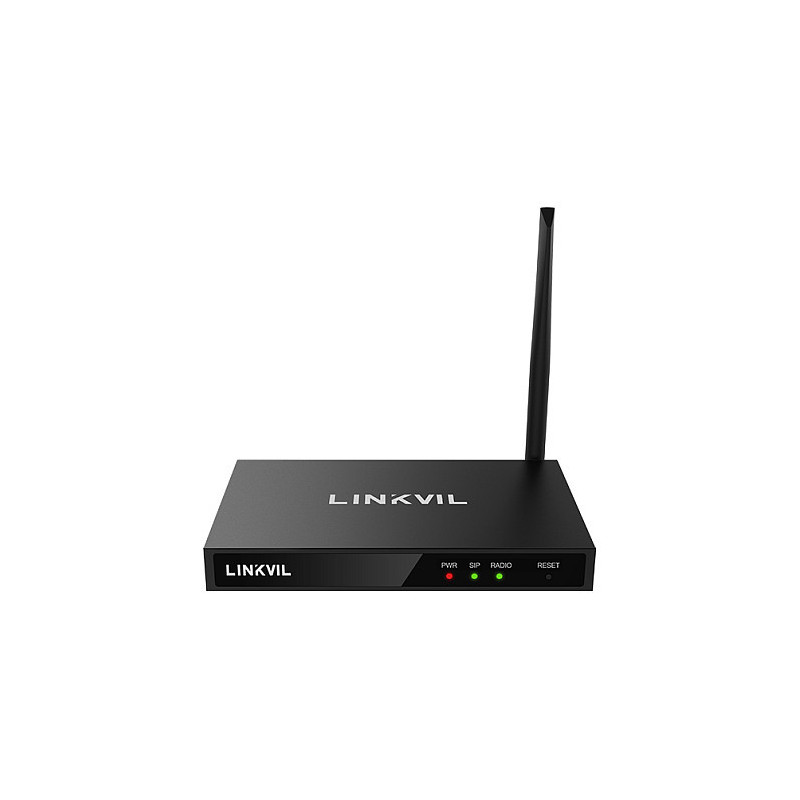

Fanvil W712 šliuzas / valdiklis

Fanvil W712. Product colour: Black. Voice codecs: G.711a, G.711u, G.722, G.723, G.726-32, G.729A, G.729ab, iLBC, Compatible memory cards: MicroSD (TransFlash). Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3at. Security algorithms: HTTPS, SRTP. WAN connection: Ethernet (RJ-45)

LINKVIL W712 is a RoIP gateway with built-in radio and SIP modules, which enables interconnection betweenanalog/digital two-way radios and SIP communication devices. Small, portable and powerful, W712 gatewayiscompatible with mainstream analog/DMR II digital two-way radios and easy to deploy and manage. W712 helps tobuildan interconnected communication system without changing the existing analog and digital communication systems. It issuitable for internal communication in different scenarios, such as community security, industrial parks, supermarkets, hospitality, campus security, etc.

Design

Product colour: Black
LED indicators: Yes

Features

Voice codecs: G.711a, G.711u, G.722, G.723, G.726-32, G.729A, G.729ab, iLBC
Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash)

Protocols

Feature: DHCP server

Network

Ethernet LAN data rates: 10,100,1000 Mbit/s
Networking standards: IEEE 802.3at

Security

Security algorithms: HTTPS, SRTP

Ports & interfaces

USB 2.0 ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
WAN connection: Ethernet (RJ-45)

Management features

Feature: Web-based management
Feature: Reset button

Power

Feature: Power over Ethernet (PoE)
DC input voltage: 12 V

Weight & dimensions

Width: 209 mm
Depth: 126 mm
Height: 26.3 mm

Packaging data

Package width: 424 mm
Package depth: 320 mm
Package height: 245 mm

Operational conditions

Operating temperature (T-T): -10 - 50 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 10 - 95%
