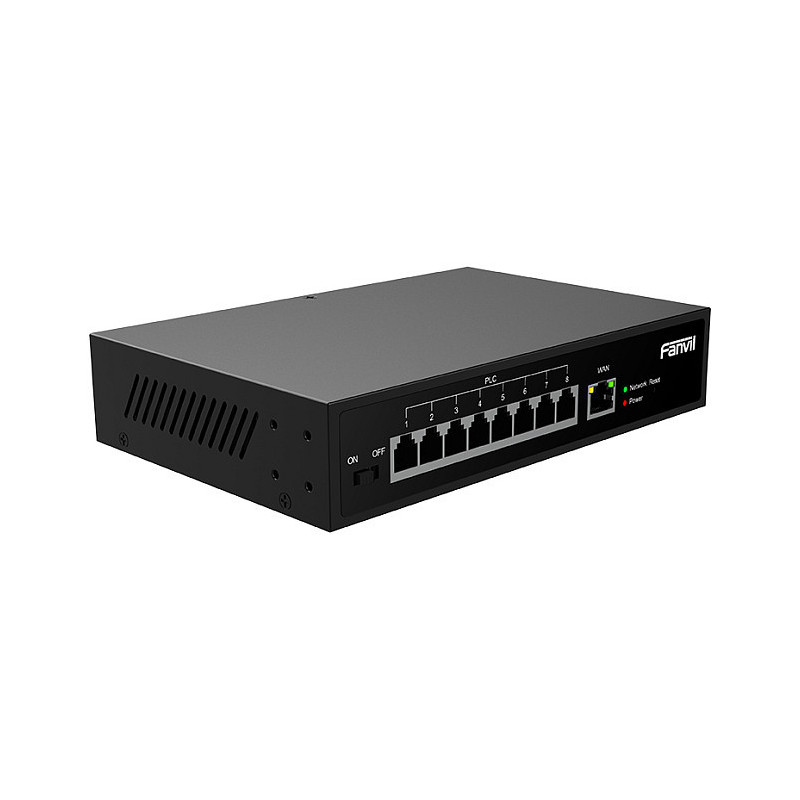

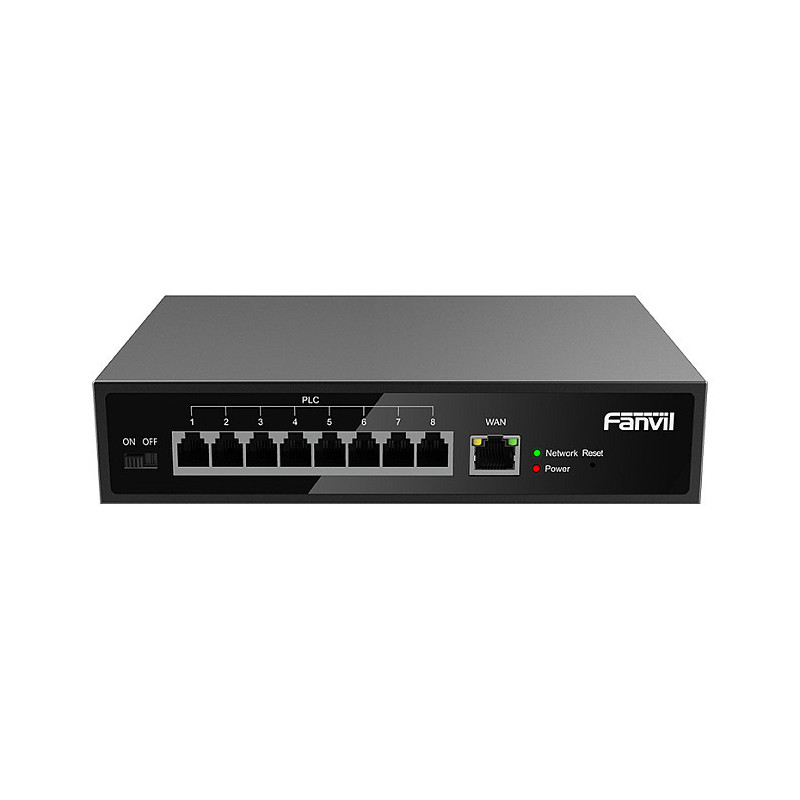

„Fanvil PN8“ tinklo komutatorius

Fanvil PN8. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 8. Rack mounting

Fanvil PN8 is a 2-wire PoE switch featuring a unique design that facilitates the reuse of existing wires. It requires no cumbersome installation or wiring, simply plug it in and it's ready to use. This not only saves installation time but also significantly reduces overall wiring costs. This innovative feature makes PN8 an ideal choice for quick and efficient deployment in existing infrastructure, providing users with a more convenient and cost-effective experience.

Management features

Switch type: Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)

Optical fiber

Maximum transfer distance (Single-mode): 300 m

Design

Feature: Rack mounting
Feature: Stackable
Product colour: Black
Housing material: Galvanized steel
Feature: Reset button
LED indicators: Network, Power

Power

Power source: AC
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Input current: 1.5 A
Power plug type: No plug

Operational conditions

Operating temperature (T-T): -20 - 50 °C
Storage temperature (T-T): -20 - 70 °C

Weight & dimensions

Width: 195 mm
Depth: 130 mm
Height: 40 mm
Weight: 1.1 kg

Packaging data

Package width: 310 mm
Package depth: 66 mm
Package height: 156 mm
