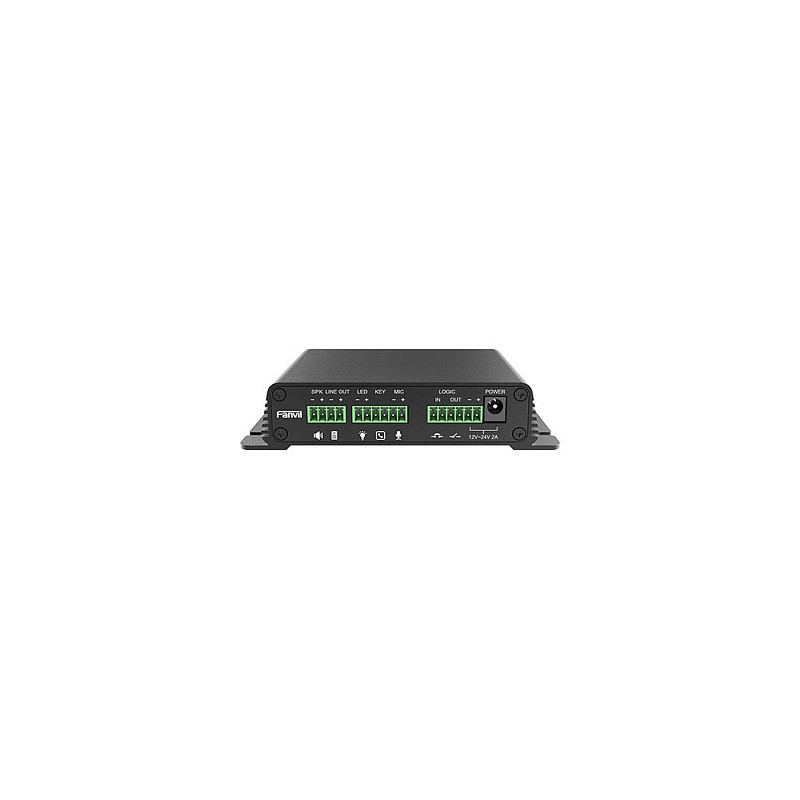

Fanvil PA2S šliuzas / valdiklis

Fanvil PA2S. Product colour: Black, Enclosure material: Aluminum, Mounting type: Desktop/Wall mounting. Voice codecs: G.711a, G.711u, G.722, G.729A, G.729B, OPUS. Supported protocols: SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS RTP/RTCP/SRTP STUN DHCP IPv6 PPPoE L2TP OpenVPN.... Ethernet LAN data rates: 10,100 Mbit/s, VPN support: L2TP / OpenVPN. Headphone connectivity: 3.5 mm, Microphone connectivity: 3.5 mm, WAN connection: Ethernet (RJ-45)

Fanvil PA2S is a SIP paging gateway that uses the standard IP/RTP/RTSP protocol for media streaming. It sets a variety of functional interfaces in one: broadcast, recording, intercom, security. Through the connection of the external devices to achieve audio and video intercom, broadcast, security trigger and other practical functions, Fanvil PA2S can apply to multiple scenarios to deploy the equipment. The size of the device is small, which is suitable for DIY applications of various integrated solutions.

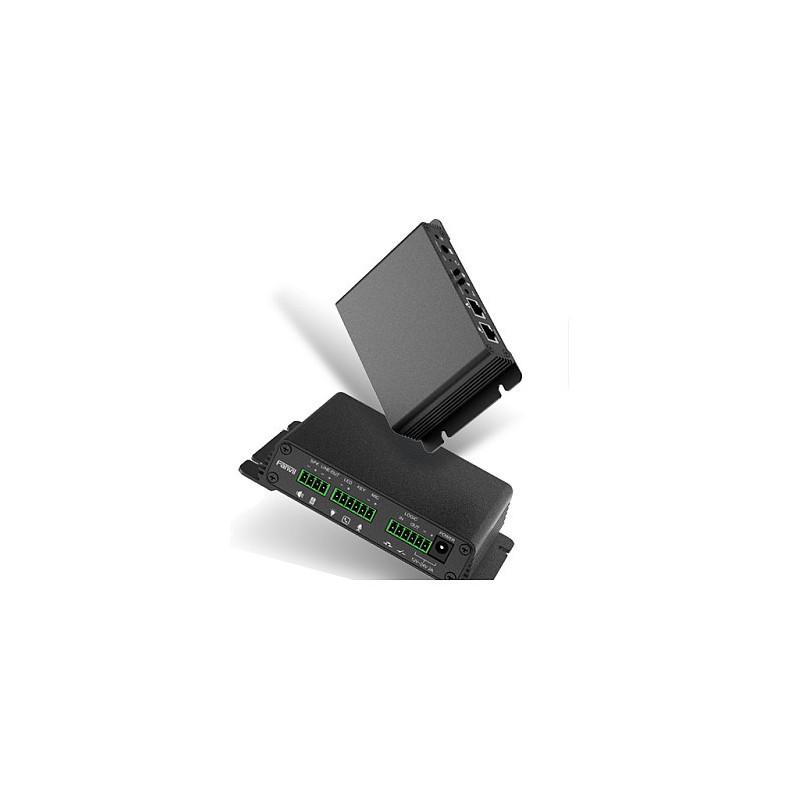

Industrial Aesthetic Design
Compact and delicate, PA2S is designed with concept of industrial aesthetics.
Simple and flexible to embed in other industry equipment. It is suitable for
DIY applications of various integrated solutions.

SIP Unified Communication for Fully Connectivity
Based on SIP standard communication protocol, Fanvil PA2S can be widely deployed in
both LAN and WAN, which maintains the value of equipment investment.

HD Audio Spread Clearer and Farther
Supporting Wideband codec G.722 and Opus, Fanvil
PA2S brings the users a crystal-clear telecom-level
auditory experience, allowing the sound to spread
farther and clearer. The sound can be heard clearly
even in a large public area.

Online Broadcasting or MP3 Broadcasting
Fanvil PA2S can be connected to the external devices, such as microphones, mobile phones,
FM radio, and passive/active speakers, supporting MP3 broadcast，to provide real-time
broadcasting in campus, hospitals, industrial parks, airports, etc.

Wide Scalability
PA2S can be connected to infrared probes and switches to trigger the alarm lights,
barrier rods and other equipments through the input/output interfaces,
realizing the automatic alarm and remote door opening.

Support HD Video Linkage
Users can view the HD video image of the camera
on the IP phone through Fanvil PA2S, monitoring
the surrounding situation in real-time.

Design

Product colour: Black
Enclosure material: Aluminum
Mounting type: Desktop/Wall mounting
LED indicators: Network, Status

Features

Voice codecs: G.711a, G.711u, G.722, G.729A, G.729B, OPUS

Performance

Feature: Control display unit

Protocols

Supported protocols: SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLSRTP/RTCP/SRTPSTUNDHCPIPv6PPPoEL2TPOpenVPNSNTPFTP/TFTPHTTP/HTTPSTR-069

Network

Ethernet LAN data rates: 10,100 Mbit/s
Feature: Full duplex
VPN support: L2TP / OpenVPN

Security

Feature: VLAN support

Ports & interfaces

Headphone connectivity: 3.5 mm
Microphone connectivity: 3.5 mm
Ethernet LAN (RJ-45) ports: 2
WAN connection: Ethernet (RJ-45)

Management features

Feature: Web-based management
Feature: Reset button
Feature: Syslog
Feature: Multicast support

Power

Feature: Power over Ethernet (PoE)

Weight & dimensions

Width: 113 mm
Depth: 28 mm
Height: 83 mm

Packaging data

Package width: 147 mm
Package depth: 58 mm
Package height: 114 mm

Operational conditions

Operating temperature (T-T): -30 - 60 °C
Storage temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 10 - 95%
