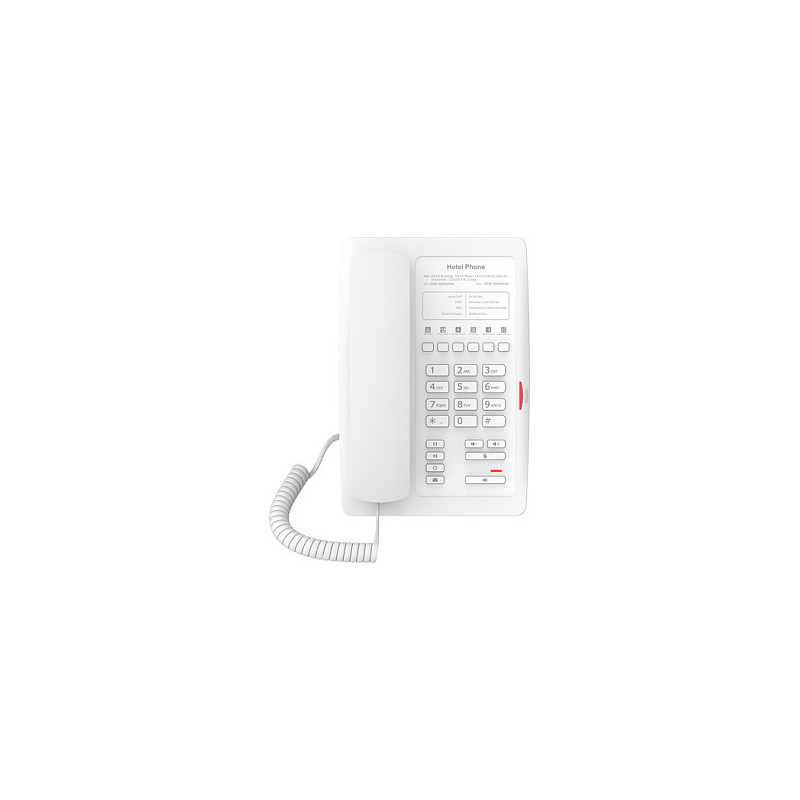

Fanvil H3 IP telefonas

Fanvil H3. Product type: IP Phone, Product colour: White, Handset type: Wired handset. Internal memory: 16 MB, Flash memory: 8 MB, Operating system installed: VxWorks. Voice codecs: G.711a, G.711u, G.722, G.723.1, G.726, G.729ab. Ethernet LAN interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Supported network protocols: DHCP, PPPoE, FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR069. Certification: RoHS, CE, FC, CCC

Elegant Outlook

Fanvil H3 is the IP Phone designed for hotels. With stylish, fresh appearance, excellent voice quality, and matching integrated communication platform, it can become a new generation of hotel intelligent terminal equipment.

6 Programmable Soft Keys for Service Hotline
6 Programmable Soft Keys for Service Hotline6 programmable Soft Keys for service hotline(Housekeeping, Ticketing,
Switchboard, Food and beverage, etc) and the hotel considerate services
(Morning call, Voice message, and etc).

Support SIP Hotspot
Fanvil H3 IP phones can share one number from the server. When a call comes in,
each extension phone will ring together to make sure you won't miss a call.

Design

Product type: IP Phone
Handset type: Wired handset
Product colour: White

Performance

Internal memory: 16 MB
Flash memory: 8 MB
Operating system installed: VxWorks
Dual-Tone Multi-Frequency (DTMF) modes: In-band, Out-of band, SIP info

Phone features

Feature: Answering machine
Call log entries: 300
Feature: Call waiting
Feature: Speed dialling
Feature: Call hold
Feature: Redialing
Feature: Do not disturb function
Feature: Anonymous call
Feature: Anonymous call rejection
Feature: Call transfer
Feature: Message-waiting indicator (MWI)

Management features

Number of programmable keys: 6
Feature: Firmware upgradeable

Audio

Voice codecs: G.711a, G.711u, G.722, G.723.1, G.726, G.729ab
Feature: Noise reduction
Feature: Echo cancellation
Feature: Voice activity detection
Feature: Comfort noise generation (CNG)
Feature: Packet loss concealment (PLC)

Network

Feature: Ethernet LAN
Ethernet LAN interface type: Fast Ethernet
Ethernet LAN data rates: 10,100 Mbit/s
Supported network protocols: DHCP, PPPoE, FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR069
Feature: Quality of Service (QoS) support
Feature: Syslog
Networking standards: IEEE 802.3af
Feature: Auto diagnostic

Ports & interfaces

Ethernet LAN (RJ-45) ports: 2
RJ-9 ports quantity: 1
Feature: DC-in jack

Certificates

Certification: RoHS, CE, FC, CCC

Power

Feature: Power over Ethernet (PoE)
AC adapter input voltage: 100 - 240 V
AC adapter output voltage: 5 V
AC adapter output current: 1 A
Power consumption (typical): 2.8 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 65%

Weight & dimensions

Width: 170 mm
Depth: 213 mm
Height: 130 mm

Packaging content

Number of handles included: 1 pc(s)
