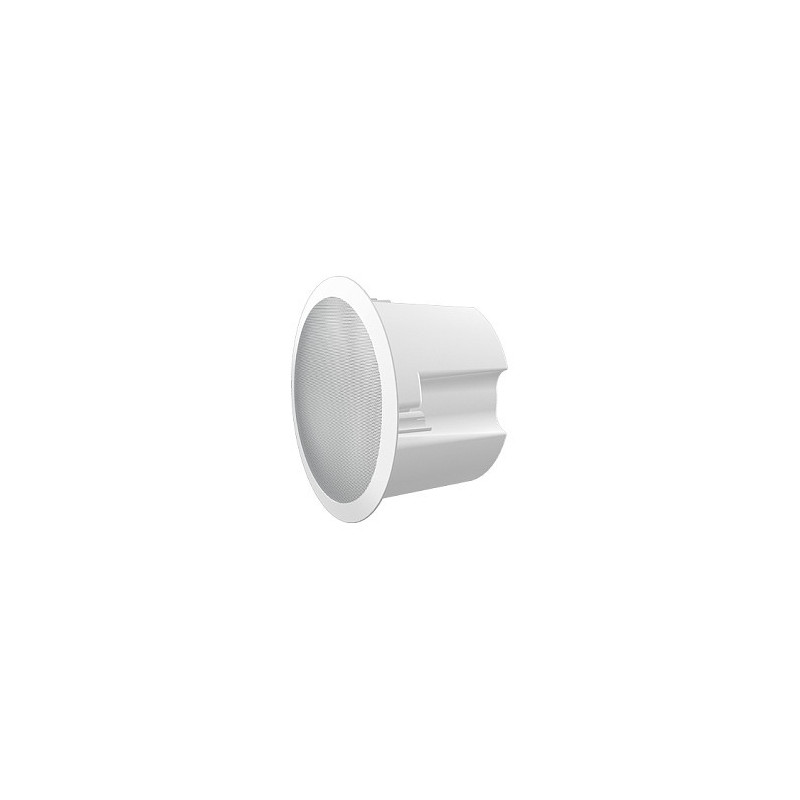

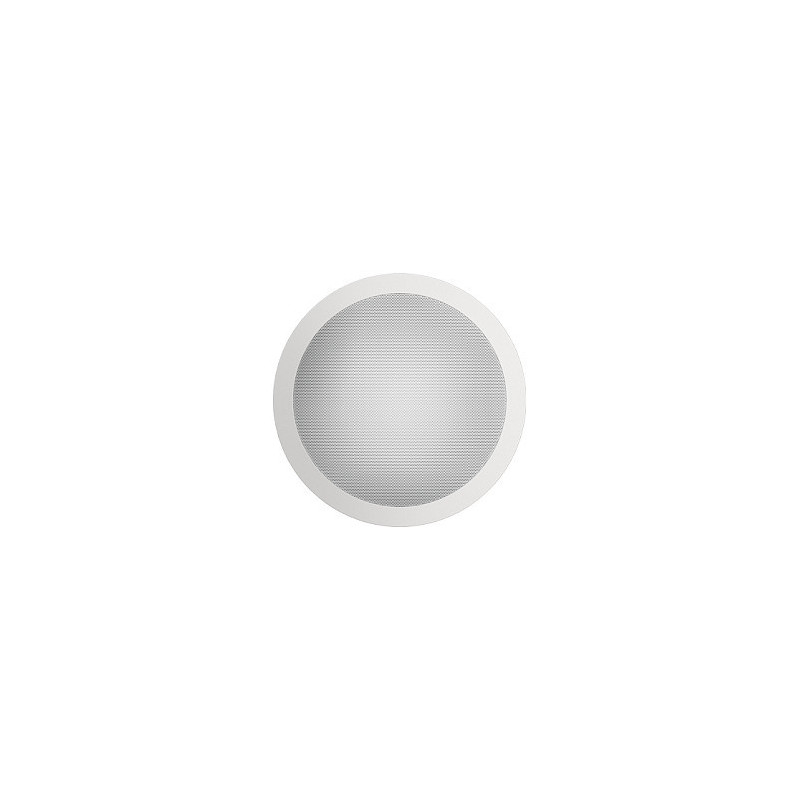

Fanvil FH-S01 garsiakalbis

Fanvil FH-S01. Recommended usage: Conferencing system. Connectivity technology: Wired. RMS rated power: 20 W, Frequency range: 100 - 20000 Hz, Impedance: 8 Ω, Sensitivity: 89 dB. Product colour: White

FH-S01 is a SIP ceiling speaker featuring paging, multicasting, broadcasting and talkback functionalities. It supports up to 10 multicast zones with prioritization. It delivers high-intelligibility performance with G.722&Opus codecs. Adopted standard SIP 2.0(RFC3261) and related RFC protocols, it has strong compatibility and scalability.

Loudspeakers

Speaker placement: Ceiling-mountable

Audio

RMS rated power: 20 W
Frequency range: 100 - 20000 Hz
Impedance: 8 Ω
Sensitivity: 89 dB
Audio formats supported: G.722, G.723, G.726, G.729

Performance

Recommended usage: Conferencing system
Product colour: White
Feature: Firmware upgradeable
LED indicators: Yes

Amplifier

Amplifier: No

Ports & interfaces

Connectivity technology: Wired

Power

Power source type: DC
DC input voltage: 16 - 18 V

Weight & dimensions

Width: 238.5 mm
Depth: 238.5 mm
Height: 148.3 mm

Packaging data

Package type: Box
Package width: 270 mm
Package depth: 270 mm
Package height: 188 mm

Operational conditions

Operating temperature (T-T): -20 - 50 °C
Storage temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 10 - 95%
