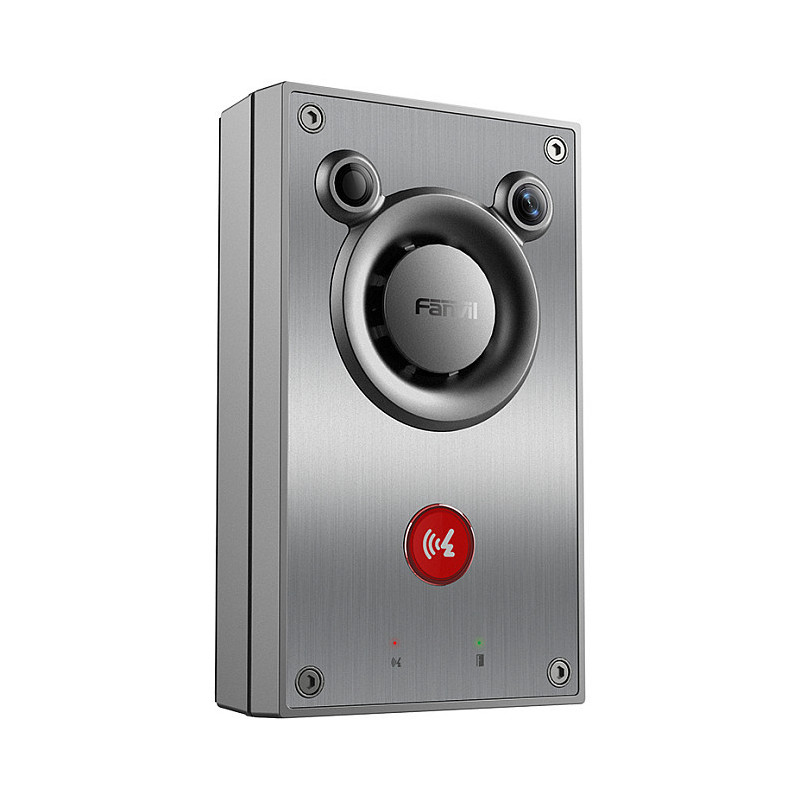

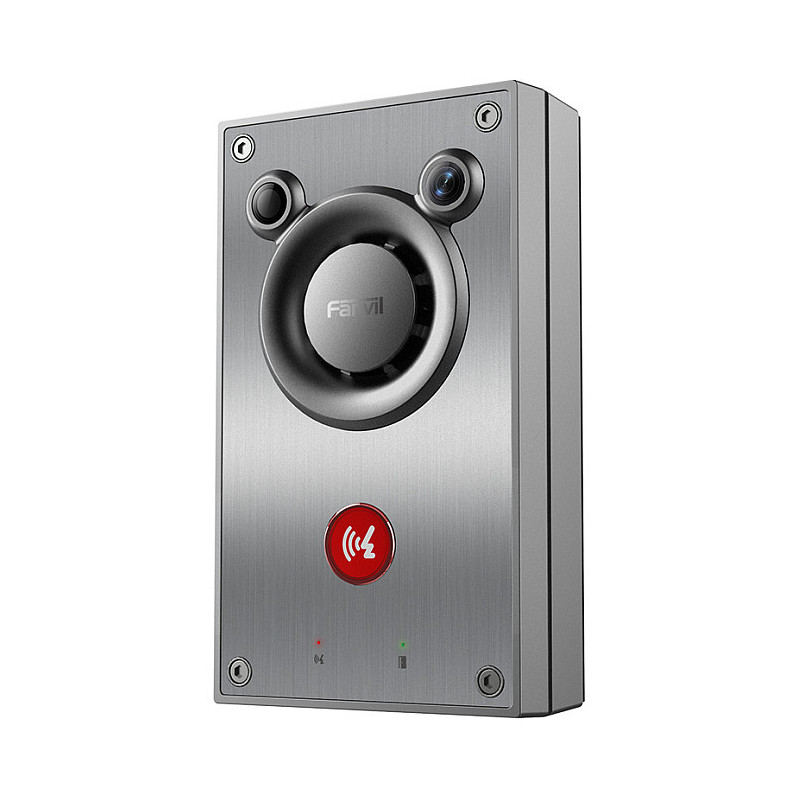

„Fanvil A12V“ vaizdo domofono sistema

Fanvil A12V Video Intercom. Video formats supported: H.264. Megapixel (approx.): 4 MP, Supported video modes: 720p, 1080p, Sensor type: CMOS. Voice codecs: G.711a. Product colour: Silver, International Protection (IP) code: IP66, IK code: IK10. Ethernet LAN data rates: 10,100 Mbit/s, Supported network protocols: FTP/TFTP HTTP/HTTPS TR-069SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS RTP/RTCP/SRTP STUN..., Networking standards: IEEE 802.3at

Fanvil A12V Video Intercom is a brand-new intercom featuring a 10W speaker and turbo sound chamber for powerful sound quality. With Fanvil's advanced dual-microphone noise reduction and voice enhancement technology, it captures clear audio even in challenging environments. Equipped with a 4MP starlight wide-angle camera with built-in infrared lighting and HDR technology, it ensures excellent imaging. Designed with a unique combination of a stainless-steel panel and integrated aluminum alloy structure, the A12V stands out with exceptional corrosion resistance and a high protection rating, making it highly durable and adaptable to diverse environments.

Technical details

Connectivity technology: Wired
Feature: Wall mountable

Display

Video formats supported: H.264

Camera

Megapixel (approx.): 4 MP
Supported video modes: 720p, 1080p
Sensor type: CMOS
Optical sensor size: 25.4 / 2.9 mm (1 / 2.9")
Viewing angle, horizontal: 103°
Viewing angle, vertical: 54.8°
Viewing angle, diagonal: 122°

Audio

Voice codecs: G.711a

Design

Product colour: Silver
International Protection (IP) code: IP66
IK code: IK10

Storage

Feature: Memory card slot

Indoor unit

RS-485 ports: 1

Network

Ethernet LAN data rates: 10,100 Mbit/s
Ethernet LAN (RJ-45) ports: 1
Feature: Power over Ethernet (PoE)
Supported network protocols: FTP/TFTP HTTP/HTTPS TR-069SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS RTP/RTCP/SRTP STUN DHCP IPv6 PPPoE L2TP OpenVPN SNTP
Networking standards: IEEE 802.3at

Management features

Feature: Web-based management
Feature: Syslog

Operational conditions

Operating temperature (T-T): -40 - 70 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 95%

Weight & dimensions

Width: 120 mm
Depth: 54.5 mm
Height: 205 mm

Packaging data

Feature: Outdoor unit included
Feature: Camera included
Package width: 168 mm
Package depth: 80 mm
Package height: 286 mm

Logistics data

Quantity per pack: 1 pc(s)
