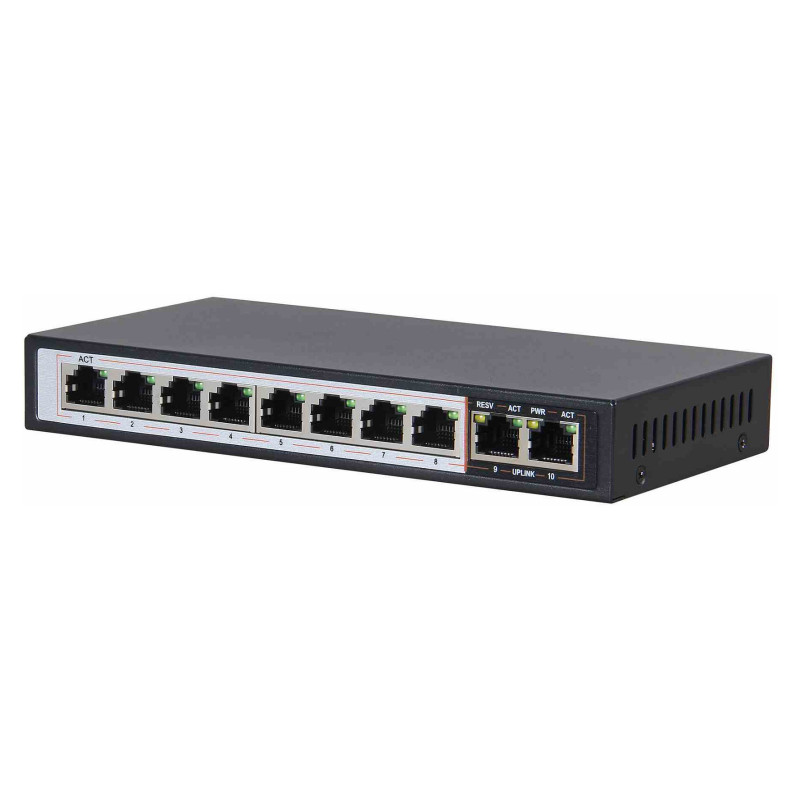

Extralink EX.3906 tinklo komutatorius

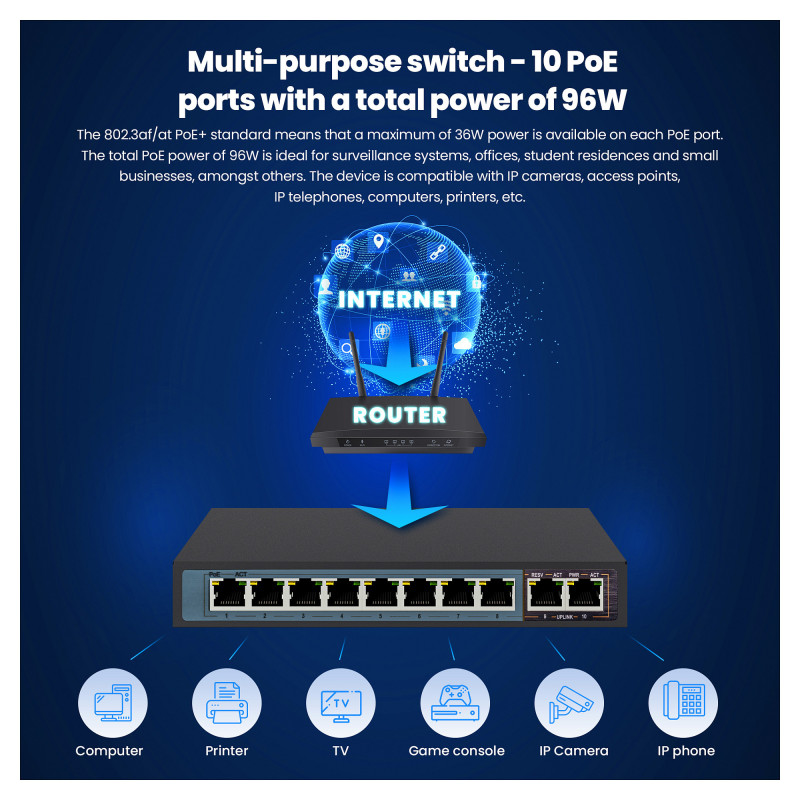

Extralink PoE Switch CERES 8x 100Mb/s PoE/PoE+, 2x RJ45 Uplink 100Mb/s, 96W. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 10. MAC address table: 4096 entries, Switching capacity: 1.2 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack. Power over Ethernet (PoE). Form factor: 1U

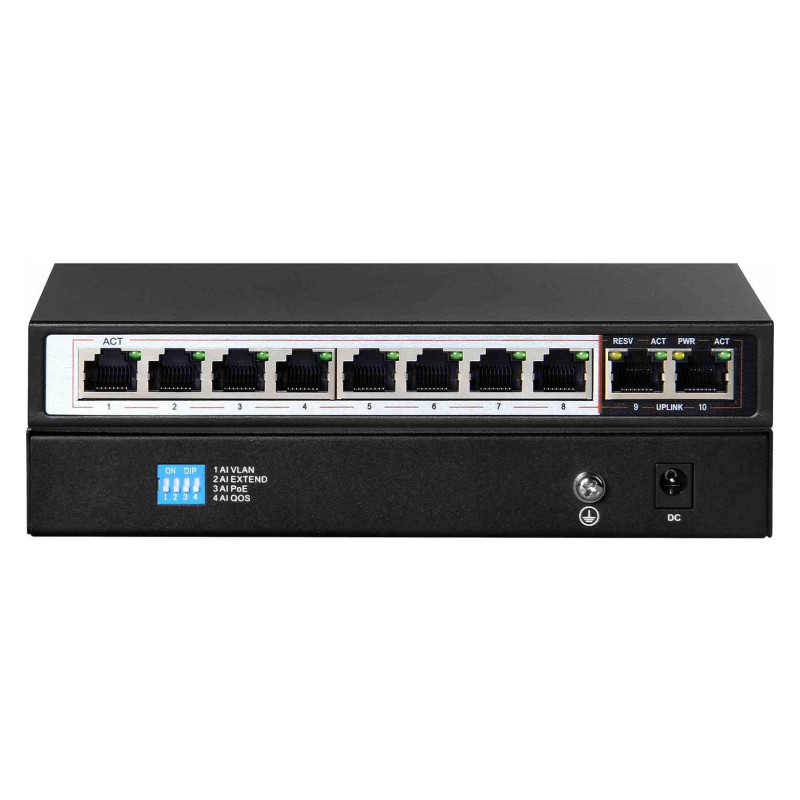

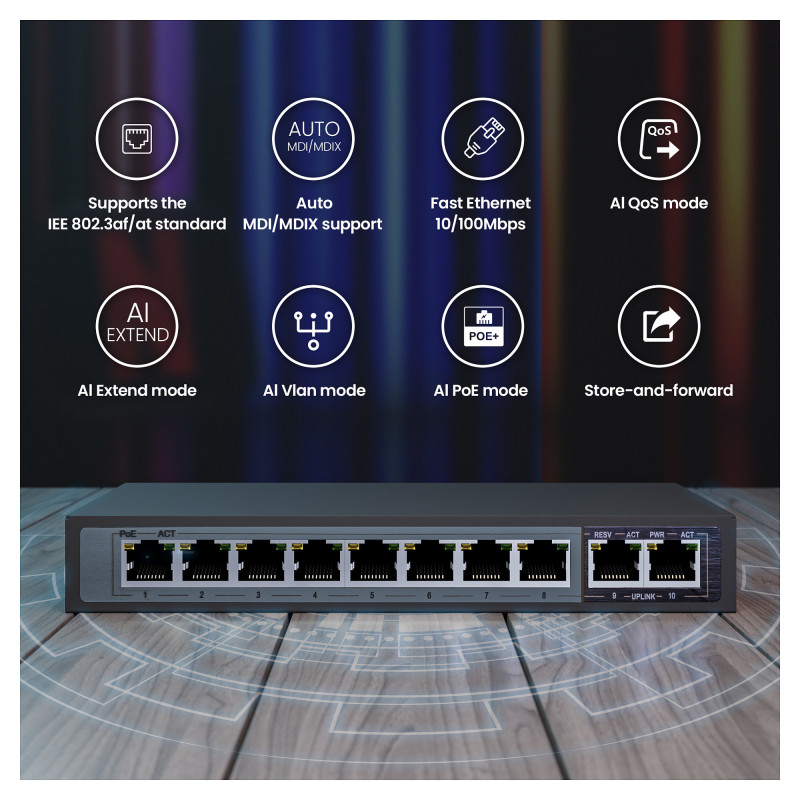

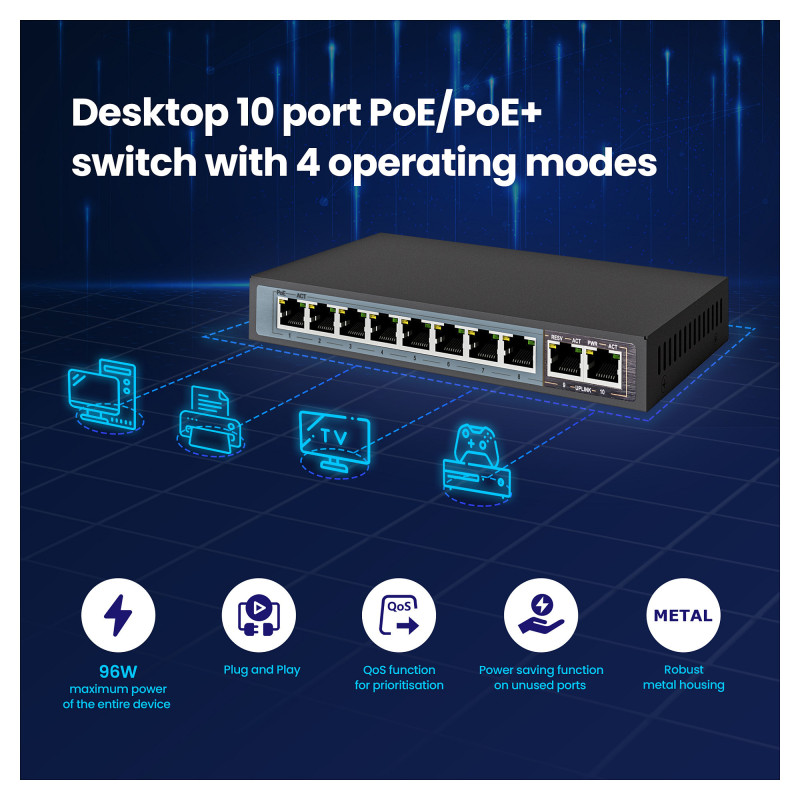

Extralink CERES (switch extralink ceres ex3906 8x) is a 10-port PoE switch with 4 modes of operation: AI QoS, AI VLAN, AI Exten and smart power mode. The AI QoS mode is ideal for use in monitoring, ensuring smooth image quality by processing video data with highest priority.

Extralink Ceres
Port separation using VLAN functions
The extralink switch has an AI VLAN mode, ports 1-8 are isolated from each other, which helps to effectively suppress public address storms and improves network performance.


Power supply for cameras up to 250 meters and real-time monitoring of equipment operation
In AI Extend mode, ports 1-8 can effectively transmit data and PoE power up to 250 meters, which is ideal for monitoring systems and when powering cameras or access points. In AI PoE mode, the switch automatically detects the operating status of the connected device when it detects that it is not working properly, automatically restarts the device.

Management features

Switch type: Unmanaged
Switch layer: L2
Feature: Quality of Service (QoS) support

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 10
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
Power connector: DC-in jack

Network

Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Cable types supported: Cat5, Cat5e

Data transmission

Switching capacity: 1.2 Gbit/s
Throughput: 2 Gbit/s
MAC address table: 4096 entries

Design

Form factor: 1U
Product colour: Black
Housing material: Metal
LED indicators: Link

Power

Power source: DC
Feature: Power supply included

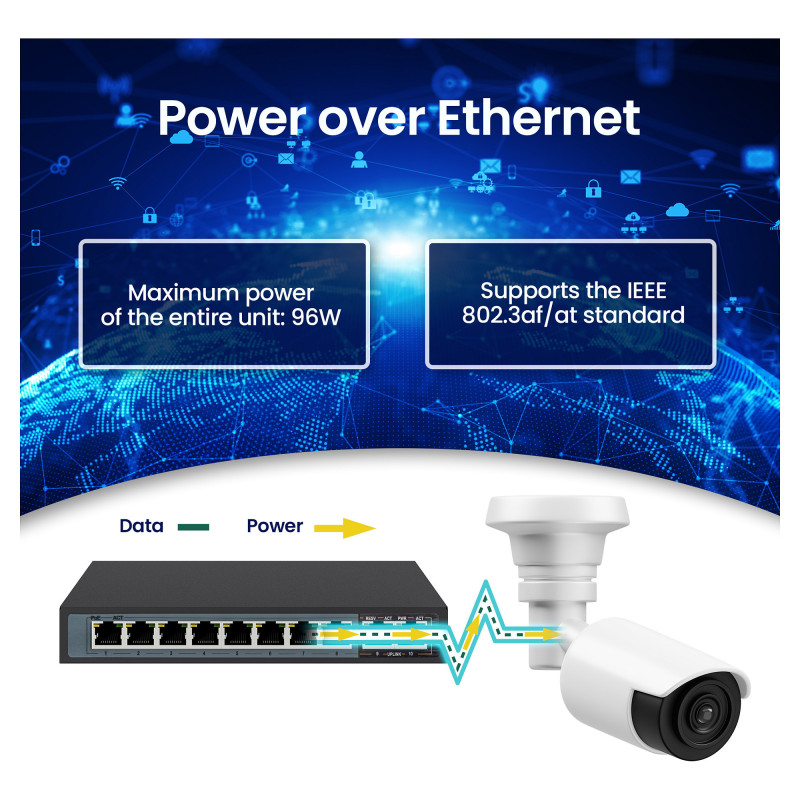

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) type supported: Active PoE
Feature: Power over Ethernet (PoE) pass through
Power over Ethernet (PoE) ports quantity: 8

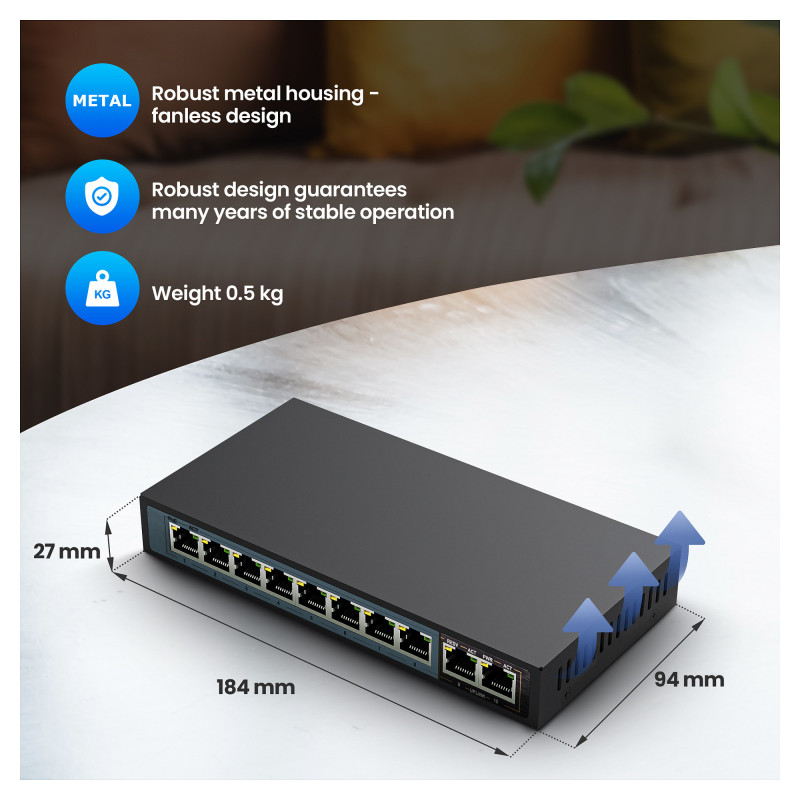

Weight & dimensions

Width: 184 mm
Depth: 94 mm
Height: 27 mm
Weight: 500 g

Certificates

Certification: CE, FCC
