Extralink EX.19737 tinklo komutatorius

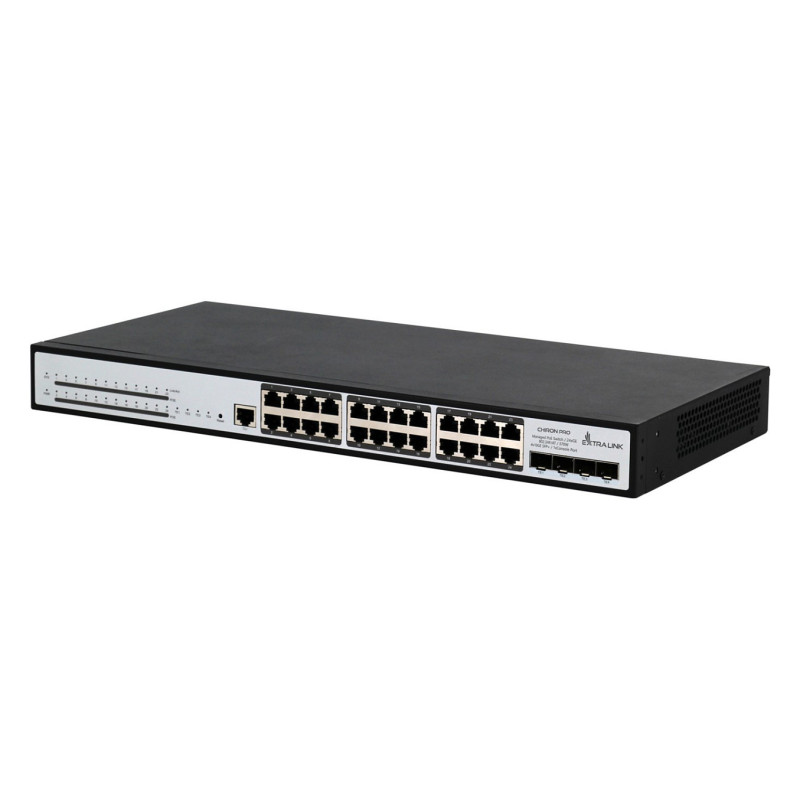

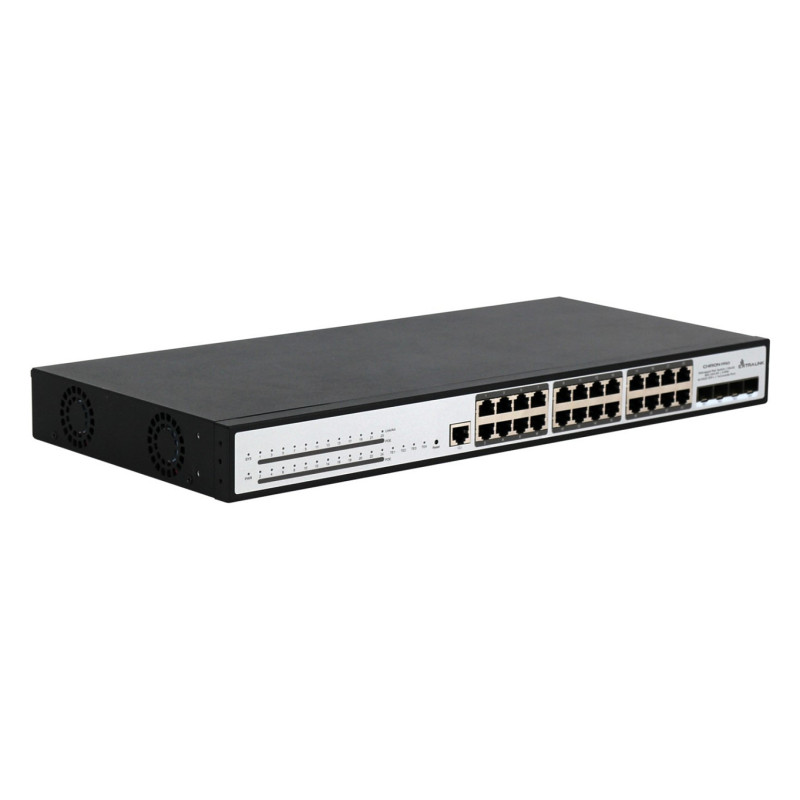

Extralink PoE Switch Chiron Pro 24x RJ45 1000Mb/s PoE, 4x SFP+, L3, managed, 370W. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Installed SFP+ modules quantity: 4. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3x. Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Extralink Chiron - gigabit PoE switch with SFP ports
Extralink Chiron Pro is a 24-port Layer 3 switch with next-generation PoE power. It is targeted at IP MAN (metropolitan area network), government and corporate networks, Internet cafes. It is developed based on high-performance hardware and supports features such as efficient ACLs, flexible QinQ, 1:1 or N:1 VLAN switching, Ethernet OAM, carrier-level QoS and industry-level 10GE Ether-ring. It also supports Layer 3 routing protocol.

High reliability
Based on an advanced distribution mechanism and an efficient cross-physical link aggregation function, the logic control plane, service control plane and service data plane are separated. This allows Extralink Chiron Pro to support continuous routing redirection at Layer 3, avoiding service interruption due to a single failure.

Telecommunications level Ethernet switch

Chiron Pro
supports telecom-level Ethernet protection protocol with less than 50 ms protection offset time, STP/RSTP/MSTP, active and backup uplinks, and LACP link aggregation to ensure high service reliability. Provides an excellent Ethernet OAM mechanism for real-time network health monitoring for rapid problem localization and detection. Supports In-Service Software Upgrade (ISSU) to ensure uninterrupted data transfer during system upgrades. Supports various L2 multicast functions, including IGMP-Snooping, fast-leave and trans-vlan.

Management features

Switch type: Managed
Switch layer: L3
Feature: Quality of Service (QoS) support
Feature: Web-based management

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Installed SFP+ modules quantity: 4
Power connector: AC-in jack

Network

Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
Feature: 10G support
Feature: IP routing
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: VLAN support
Virtual LAN features: Voice VLAN

Data transmission

Switching capacity: 128 Gbit/s
MAC address table: 16000 entries
Jumbo frames: 9000
Packet buffer memory: 1.5 MB

Security

DHCP features: DHCP Option 82, DHCP client, DHCP relay, DHCP server, DHCP snooping

Design

Feature: Rack mounting
Form factor: 1U
Product colour: White
Housing material: Metal

Performance

Flash memory: 16 MB
Noise level: 37.5 dB

Power

Power source: AC
Feature: Power supply included

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget: 370 W

Weight & dimensions

Width: 440 mm
Depth: 210 mm
Height: 44 mm
Weight: 3 kg

Packaging content

Feature: Rack mount kit

Packaging data

Feature: Rack rails
