Edimax EW-7611ULB tinklo plokštė

Edimax EW-7611ULB. Connectivity technology: Wireless, Host interface: USB, Interface: WLAN / Bluetooth. Maximum data transfer rate: 150 Mbit/s, Top Wi-Fi standard: Wi-Fi 4 (802.11n), Wi-Fi band: Single-band (2.4 GHz). USB powered. Product colour: Black

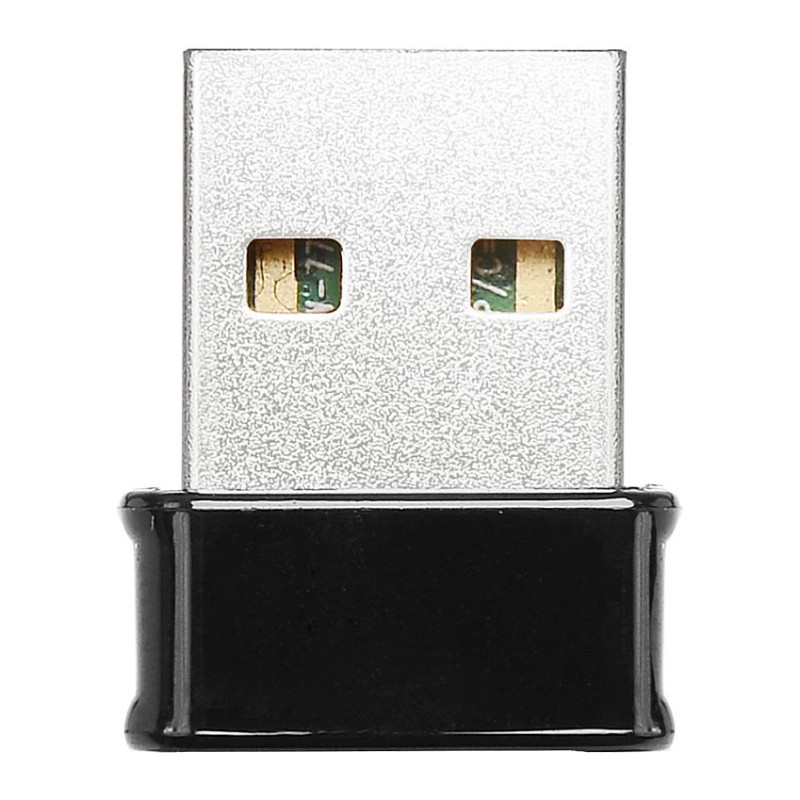

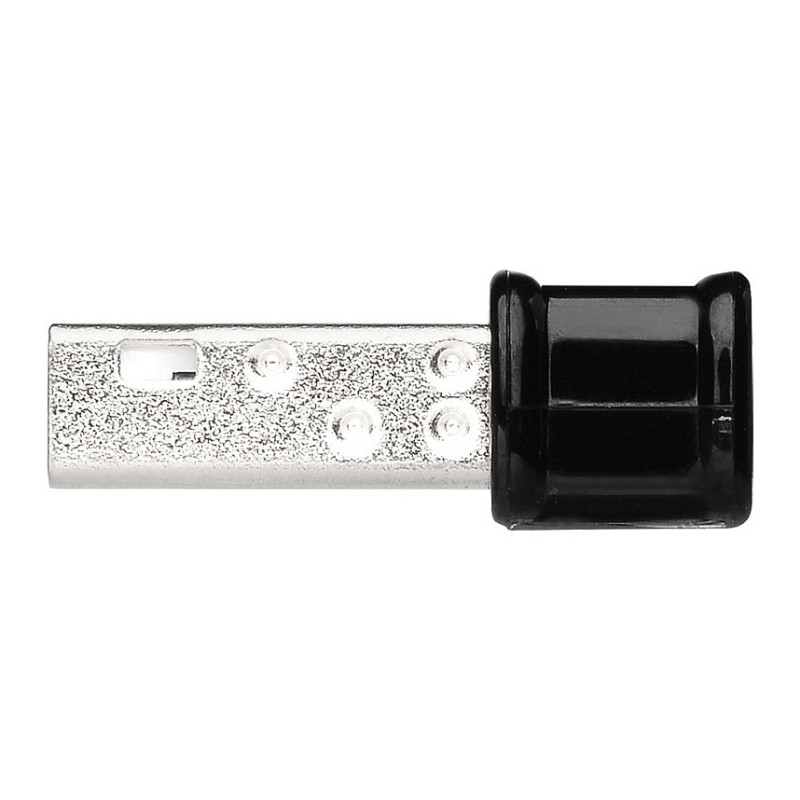

The EW-7611ULB is a nano-sized 2-in-1 combo USB Wi-Fi adapter with Bluetooth 4.0 that supports Wi-Fi up to 150Mbps and allows users to connect to all the latest Bluetooth devices such as mobile phones, tablets, mice, keyboards, printers and more. Supporting the latest Bluetooth 4.0 version with Bluetooth Smart Ready, the EW-7611ULB offers ultra-low power consumption with Bluetooth Low Energy (BLE) while transferring data or connecting devices. And with a tiny nano-size design you can easily plug it in without blocking any surrounding USB ports, for both Wi-Fi and Bluetooth connectivity at the same time.

11n Wi-Fi Speed up to 150Mbps
Complies with wireless IEEE802.11b/g/n standards for Wi-Fi data transmission rates up to 150Mbps when connected to a 802.11n device.

Bluetooth 4.0 & Bluetooth 3.0+HS (High Speed) up to 24Mbps
8 times faster data transmission up to 24Mbps with support for Bluetooth 4.0. And fully backwards compatible with Bluetooth 3.0+HS and Bluetooth 2.1+EDR for wireless communication with almost all Bluetooth-enabled mobile phones, tablets, mice, keyboards, printers and more.

Energy Saving with Green WLAN & Bluetooth Low Energy (BLE)
Smart transmission power control to adjust transmission output by distance and CPU offload to help reduce power consumption when wireless is idle. The adapter doesn't only provide the best wireless technology in the world, but cares for the environment - and your pocket - by saving on electric bills.

Supports WPS (Wi-Fi Protected Setup)
Wi-Fi Protected Setup (WPS) is a standard for easy and secure establishment of a wireless network. The adapter supports software WPS-compatible configuration so your wireless network can be immediately secured with WPS-compatible routers or access points.

Easy Setup Wizard
The included multi-language easy setup wizard and friendly UI will walk you through configuring the EW-7611ULB on your Wi-Fi network.

Compact and Portable Design

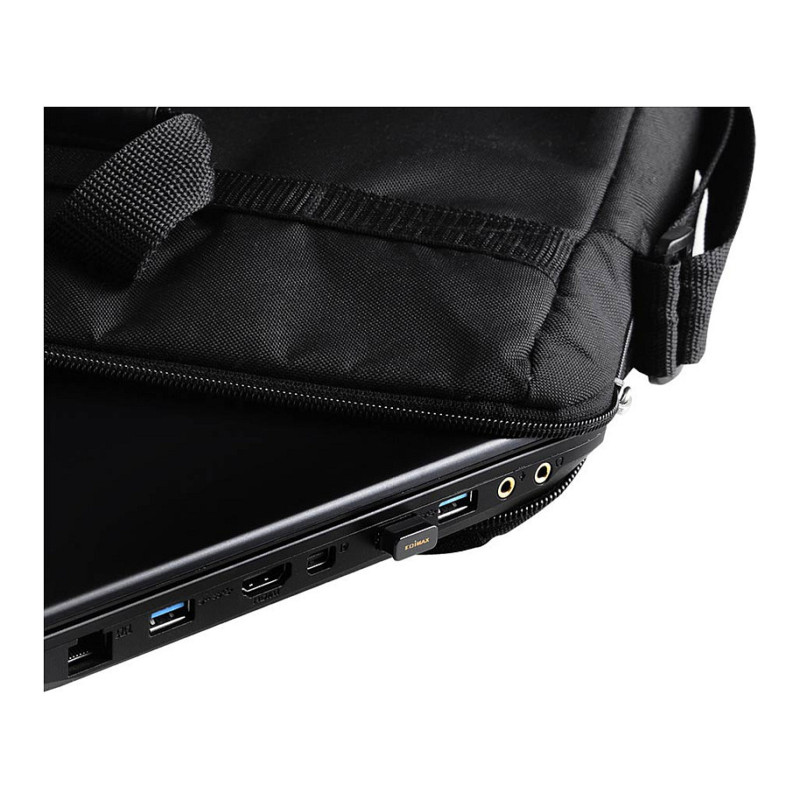

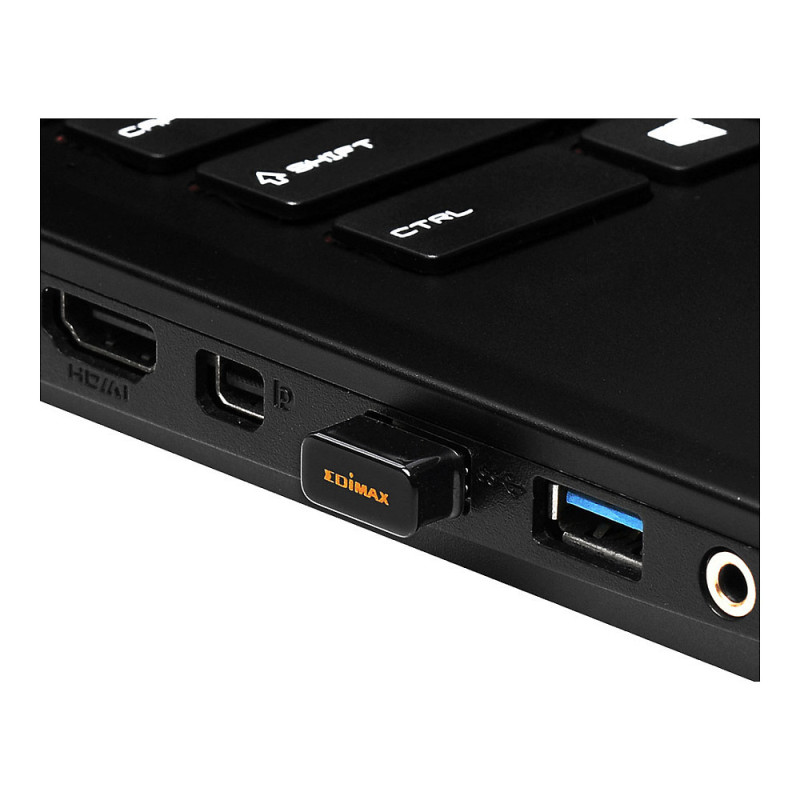

Currently the smallest Wi-Fi and Bluetooth 4.0 combo USB adapter on the market. The compact design of EW-7611ULB is convenient to carry for mobile users and the snug fit protects from accidentally snapping the adapter out of place.

Ports & interfaces

Connectivity technology: Wireless
Host interface: USB
Interface: WLAN / Bluetooth
USB version: 2.0

Network

Maximum data transfer rate: 150 Mbit/s
Networking standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Feature: Wi-Fi
Wi-Fi band: Single-band (2.4 GHz)
Top Wi-Fi standard: Wi-Fi 4 (802.11n)
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)
WLAN data transfer rates supported: 1,2,5.5,6,9,11,12,24,36,48,54,72,150 Mbit/s
Security algorithms: 64-bit WEP, 128-bit WEP, 802.1x RADIUS, WPA, WPA2, WPS
Feature: Quality of Service (QoS) support
Bluetooth version: 4.0

Design

Product colour: Black
Antenna: Yes
Antenna design: Internal
LED indicators: Activity, Link
Receiver sensitivity: 11n(20MHz) MCS7: -64dBm±2dBm11n(40MHz) MCS7: -64dBm±2dBm11g 54Mbps: -65dBm±2dBm11b 11Mbps: -79dBm±2dBm
Certification: CE, FCC, WiFi, BQB

Power

Feature: USB powered

System requirements

Mac operating systems supported: Yes
Linux operating systems supported: Yes

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 0 - 95%

Weight & dimensions

Width: 14.9 mm
Depth: 18.5 mm
Height: 7.1 mm
Weight: 3 g

Packaging data

Quantity per pack: 1 pc(s)

Logistics data

Harmonized System (HS) code: 85176990

Other features

Feature: Quick start guide
Transmit power range: 12 - 16 dBmW
