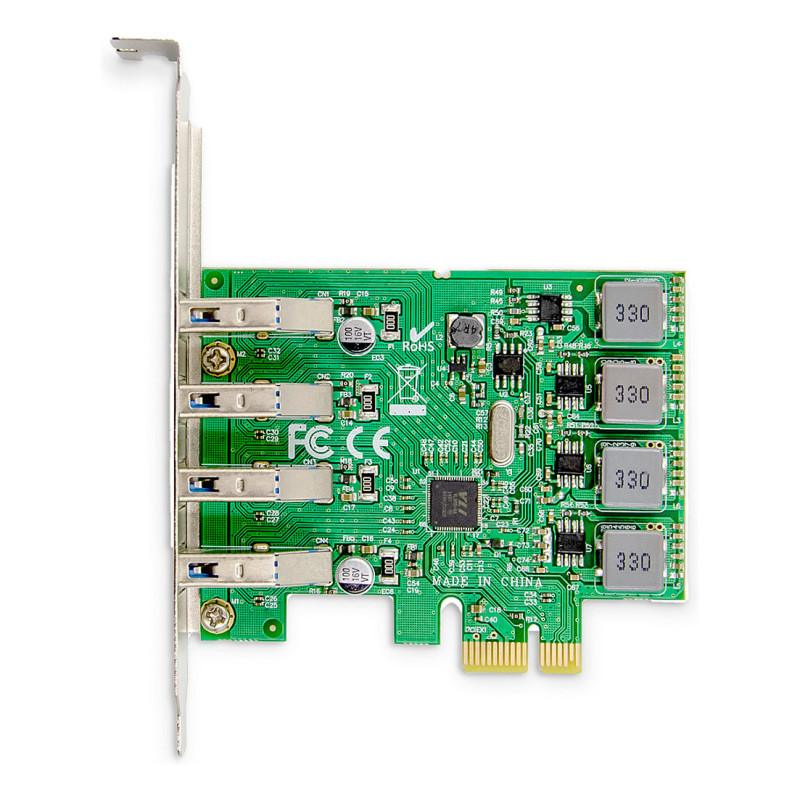

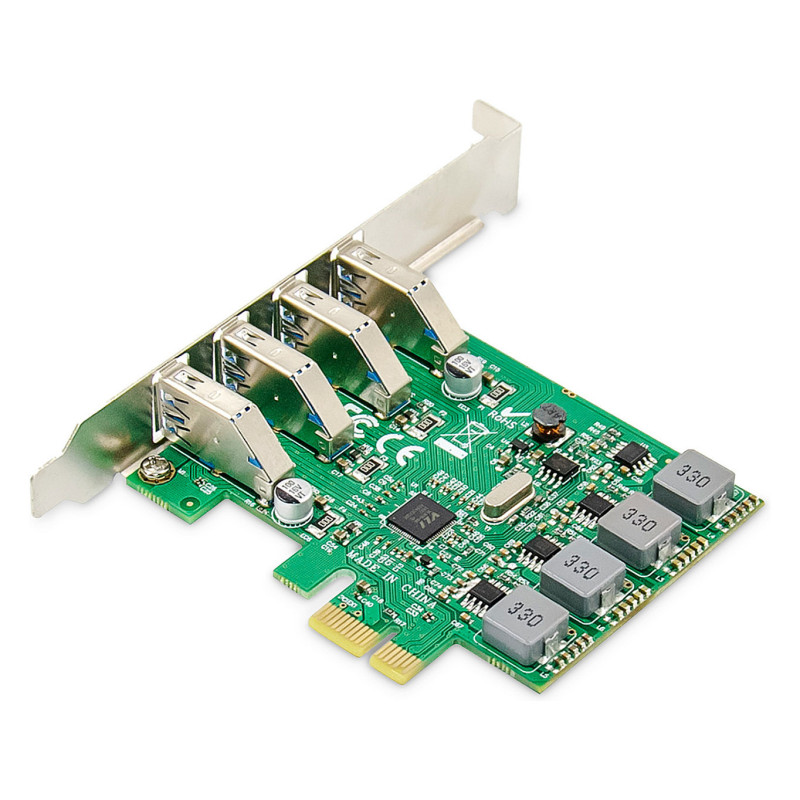

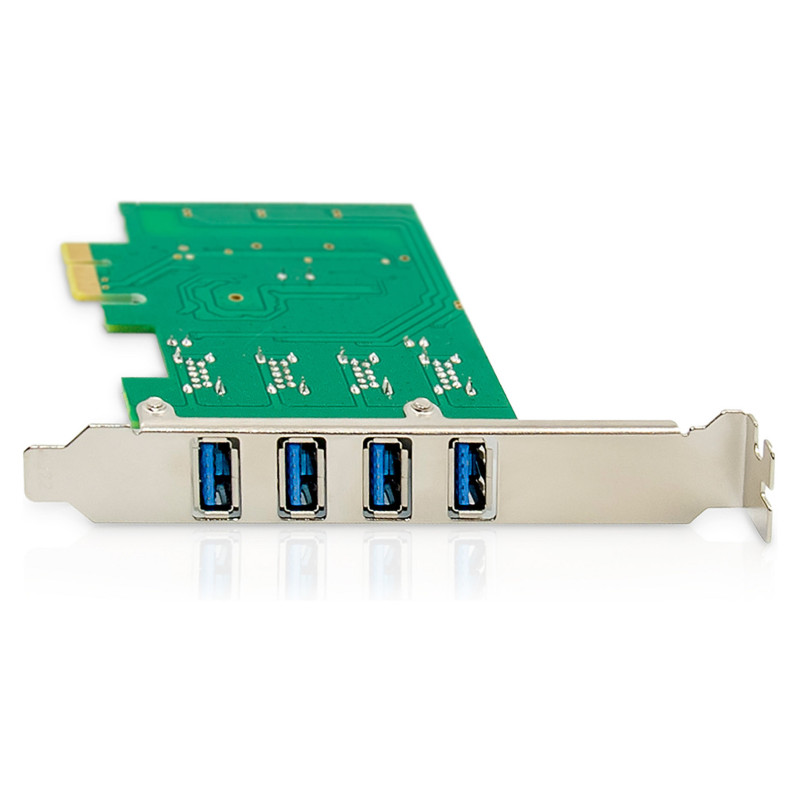

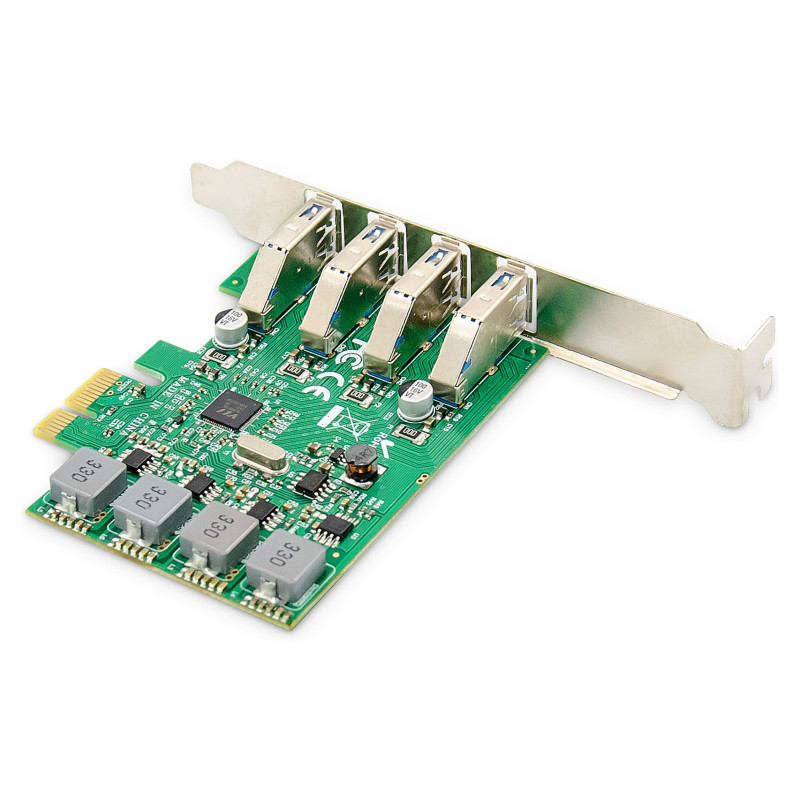

„Digitus DS-30226“ sąsajos plokštės / adapteris

Digitus 4-Port USB 3.0 PCI Express Add-On Card. Host interface: PCIe, Output interface: USB 3.2 Gen 1 (3.1 Gen 1), Expansion card form factor: Full-height / Low-profile. Product colour: Green, Country of origin: China. Processor manufacturer: VIA Technologies, Processor model: VL805, Data transfer rate (max): 5 Gbit/s. Output voltage: 5 V, Output current: 3 A. Windows operating systems supported: Windows 10, Windows 7, Windows 8, Windows 8.1

Extend your PC with PCIe slots by 4 full USB 3.0 ports (USB A) with up to 3000 mA

- Data transfer in SuperSpeed with up to 5 Gbps, backwards compatible
- Power supply: 5 V / 3000 mA per port max.
- Chipset: VIA / VL805
- Supports USB legacy function
- USB Attached SCSI Protocol (USAP) Mode
- Plug and Play - no driver installation required
- No external power adapter required
- Supports hot plugging
- Low-profile slot bracket

This full USB 3.0 host controller extends your PC with PCI slots by four USB 3.0 connections. Power supply is provided via the PCI express slot and supplies a maximum power output of 3,000 mA for each USB port. Use bus speeds of up to 5 Gbps with USB SuperSpeed, backwards compatible for older USB devices with Hi-Speed, Full Speed & Low Speed. Connect USB devices such as printers, scanners, cameras or an external hard drive. Supports hot plugging & Plug and Play - no driver installation required. Enjoy the fastest SuperSpeed data transfers with the DIGITUS® USB 3.0 PCIe card and copy large quantities of data in a very short time.

Ports & interfaces

Host interface: PCIe
Output interface: USB 3.2 Gen 1 (3.1 Gen 1)
Expansion card form factor: Full-height / Low-profile
Expansion card standard: PCIe 2.0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

Design

Feature: Internal
Product colour: Green
Feature: Hot-Plug support
Country of origin: China

Features

Feature: Built-in processor
Processor manufacturer: VIA Technologies
Processor model: VL805
Data transfer rate (max): 5 Gbit/s
Feature: Plug and Play

Power

Output voltage: 5 V
Output current: 3 A

System requirements

Windows operating systems supported: Windows 10, Windows 7, Windows 8, Windows 8.1
Linux operating systems supported: Yes

Weight & dimensions

Width: 140 mm
Depth: 130 mm
Height: 30 mm
Weight: 110 g

Packaging data

Quantity: 1

Logistics data

Harmonized System (HS) code: 84733020
