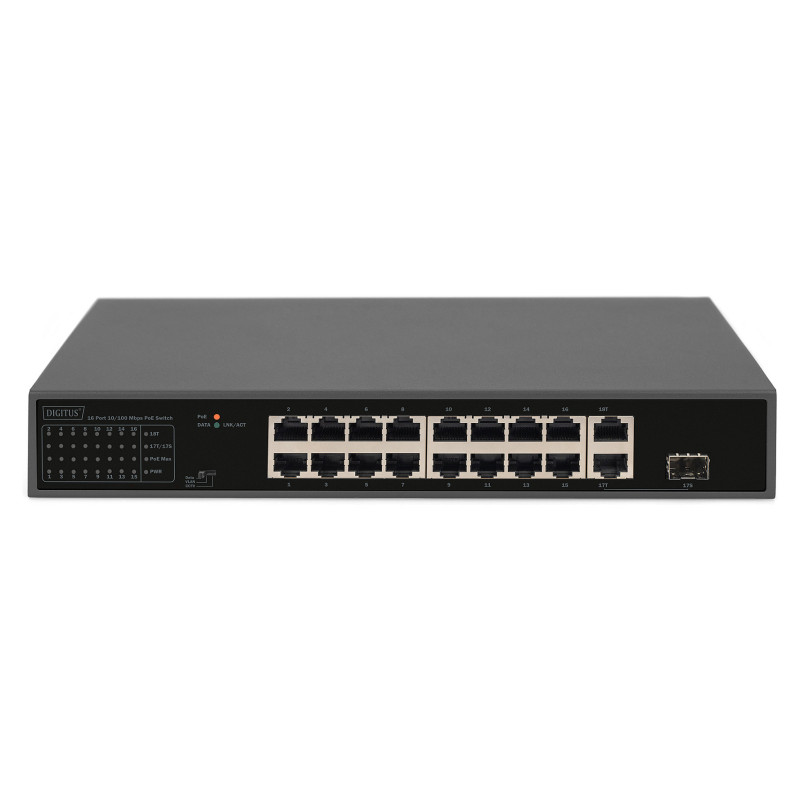

„Digitus DN-95355“ tinklo komutatorius

Digitus 16 Port Fast Ethernet PoE Switch , 2 Gigabit Uplinks (RJ45 / SFP). Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 16000 entries. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Key Function: VLAN & CCTV & PD-Alive

- 16*10/100Mbps PoE RJ45 Ports
- 1*10/100/1000Mbps Combo Ports
- 1*10/100/1000Mbps RJ45 Ports
- Complies with IEEE802.3af/at Power over Ethernet
- Supports PoE Power up to 30W for each PoE port
- Auto detect power device
- Remote power and Data feeding up to 100m
- Flow Control for Full Duplex operation and back pressure for Half Duplex Operation
- Support VLAN and CCTV function
- 16K MAC address, automatic address learning and address aging
- Support Energy-Efficient Ethernet (EEE) function EEE802.3az
- Support PD Alive function（the switch port is disconnected will automatically connected）

DN-95355 PoE Switch is 16-port 10/100Mbps PoE + 1G Combo +1GE PoE Switch. The PoE ports can automatically detect and supply power to IEEE802.3af/at compliant Powered Devices (PD). The electrical power and data transmission on the same cable can expand your network to the places where no power lines or outlets, where you can install devices such as APs, IP cameras, or IP phones etc. The PoE Switch provides a simple, cost- effective, and non-blocking wire-speed performance with 11-inch metal shape for rack deployment in office or department network application.

Management features

Switch type: Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 16
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Fast Ethernet (copper) ports quantity: 16
Gigabit Ethernet (copper) ports quantity: 1
Combo SFP ports quantity: 1
Power connector: AC-in jack

Network

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology: 100BASE-TX, 1000BASE-TX
Cable types supported: Cat5, Cat5e, Cat6
Feature: Full duplex
Feature: Half duplex
Feature: Flow control support
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: MAC address auto-learning supported
Feature: MAC address auto-aging supported
Feature: VLAN support

Data transmission

MAC address table: 16000 entries

Design

Feature: Rack mounting
Form factor: 1U
Product colour: Black
Housing material: Metal
LED indicators: Yes
Number of fans: 1 fan(s)

Power

Power source: AC
Feature: Power supply included
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port: 32 W

Weight & dimensions

Width: 180 mm
Depth: 280 mm
Height: 44 mm
Weight: 1.75 kg

Packaging content

Cables included: AC
Feature: Quick start guide

Packaging data

Package width: 230 mm
Package depth: 80 mm
Package height: 370 mm
Package volume: 6808 cm³
Package weight: 2.5 kg

Logistics data

UK Trade Tariff code: 85176200
Country of origin: China
