„Digitus DN-95317“ tinklo komutatorius

Digitus 10" Gigabit 8-Port Unmanaged PoE+ Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.3at. Power over Ethernet (PoE). Rack mounting

Supplies PoE devices centrally and reliably with power and Gigabit data, perfect for camera, WLAN and IoT installations.

- Eight fully-fledged Gigabit PoE+ ports for APs, cameras and VoIP
- Supports PoE+ according to IEEE 802.3af/at for up to 30 W per port
- Compact 10" design - ideal for small network cabinets
- Fanless design ensures silent continuous operation
- Non-blocking gigabit forwarding for stable data transmission
- Energy- and cost-efficient central PoE provisioning
- Robust metal housing for professional installations
- Auto-MDI/MDI-X for simple cabling
- Plug-and-play without configuration effort
- High reliability for 24/7 operation in safety-critical applications

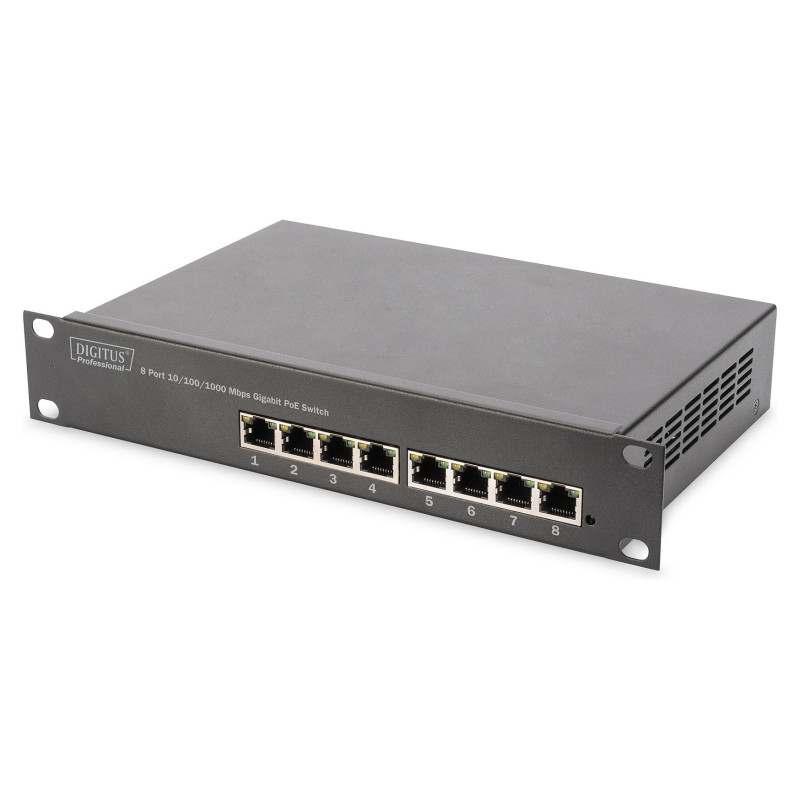

The DIGITUS® DN-95317 is a powerful 10" Gigabit PoE+ switch that provides eight PoE+-capable RJ45 ports and thus enables a reliable power and data supply for modern network-based devices. With support for IEEE 802.3af/at (PoE+), the switch provides sufficient power to efficiently operate access points, IP cameras, VoIP telephones or IoT modules - without the need for a separate power supply unit for each end device. Thanks to its 10-inch-compatible design, the DN-95317 is particularly suitable for compact network cabinets, technical rooms or decentralized installations in stores, offices or residential complexes. Thanks to its fanless design, the switch operates completely silently and is therefore ideal for noise-sensitive environments. The Gigabit ports ensure fast transmission rates and enable stable network communication for PoE-based systems. With non-blocking forwarding, auto-negotiation and store-and-forward technology, the switch provides a solid foundation for reliable network performance without configuration effort. Top USP: Compact 10" PoE+ switch with eight Gigabit ports - ideal for CCTV, WLAN and IP-based building technology.

Management features

Switch type: Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Network

Networking standards: IEEE 802.3at
Feature: Full duplex
Feature: Auto MDI/MDI-X

Data transmission

Switching capacity: 16 Gbit/s
MAC address table: 8000 entries

Design

Feature: Rack mounting
Product colour: Grey

Power

Power consumption (max): 96 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget: 80 W

Other features

Ethernet interface type: Gigabit Ethernet

Weight & dimensions

Width: 250 mm
Depth: 150 mm
Height: 42 mm

Packaging data

Package width: 240 mm
Package depth: 320 mm
Package volume: 5145.6 cm³
Package weight: 1.65 kg

Logistics data

UK Trade Tariff code: 85176200
Country of origin: China
Harmonized System (HS) code: 85176990
