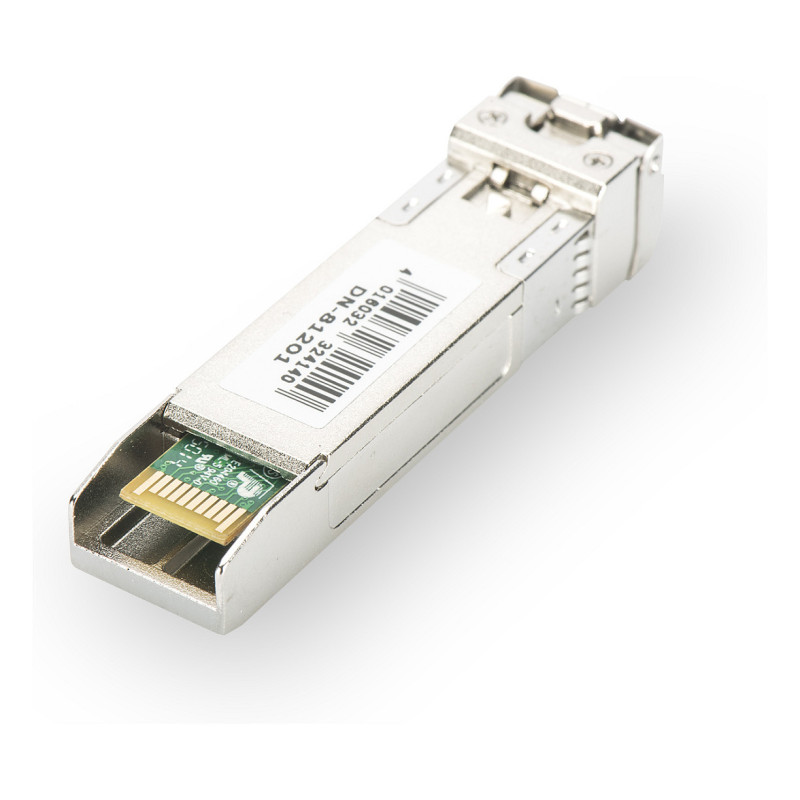

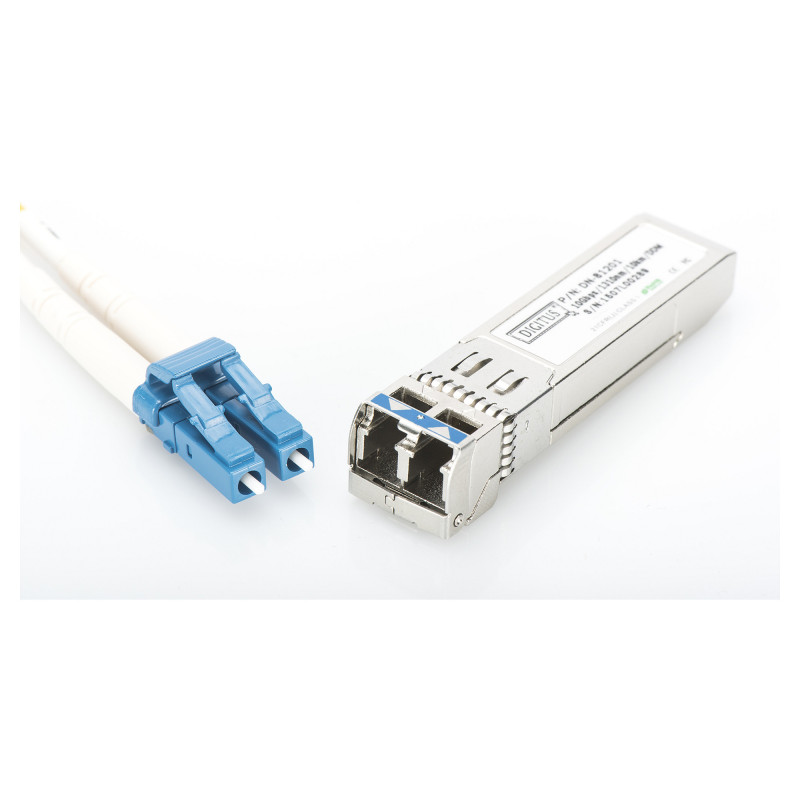

Digitus DN-81201-01 network transceiver module

Digitus HP-compatible SFP+ 10G SM 1310nm 10km with DDM. SFP transceiver type: Fiber optic, Maximum data transfer rate: 10000 Mbit/s, Interface type: SFP+. Brand compatibility: HP. Quantity per pack: 1 pc(s). Package width: 115 mm, Package depth: 30 mm, Package volume: 310.5 cm³. Country of origin: China

The plug and play fiber connection

- The Plug & Play fiber optic link enables quick installation
- Sends data in high quality and additionally provides excellent reliability
- Distance up to 10km at a maximum data rate of 10Gbps
- Operating temperature: 0 °C ~ 70 °C

The DIGITUS® mini GBIC (SFP) transceiver modules offer highest quality and reliability. Wether from switch to switch, converter to switch, converter to converter or any else application: The wide product range of DIGITUS® modules makes possible a flexible usage of the fiber technology. The conformity to the MSA (Multi Source Agreement) standard ensures a compatibility to third party manufacturers.

Performance

SFP transceiver type: Fiber optic
Maximum data transfer rate: 10000 Mbit/s
Interface type: SFP+
Single-mode fiber (SMF) supported: Yes
Fiber optic connector: LC
Maximum transfer distance: 10000 m
Wavelength: 1310 nm
Tx power (min): -8 dBmW
Tx power (max): -0.5 dBmW
Rx power (min): -12.5 dBmW
Ethernet interface type: 10 Gigabit Ethernet
Digital Diagnostics Monitoring (DDM): Yes

Features

Plug and Play: Yes
Hot-Plug support: Yes
Brand compatibility: HP

Operational conditions

Operating temperature (T-T): 0 - 70 °C

Packaging content

Quantity per pack: 1 pc(s)

Packaging data

Package width: 115 mm
Package depth: 30 mm
Package volume: 310.5 cm³
Package weight: 100 g

Logistics data

UK Trade Tariff code: 85176200
Harmonized System (HS) code: 85369010
Country of origin: China
